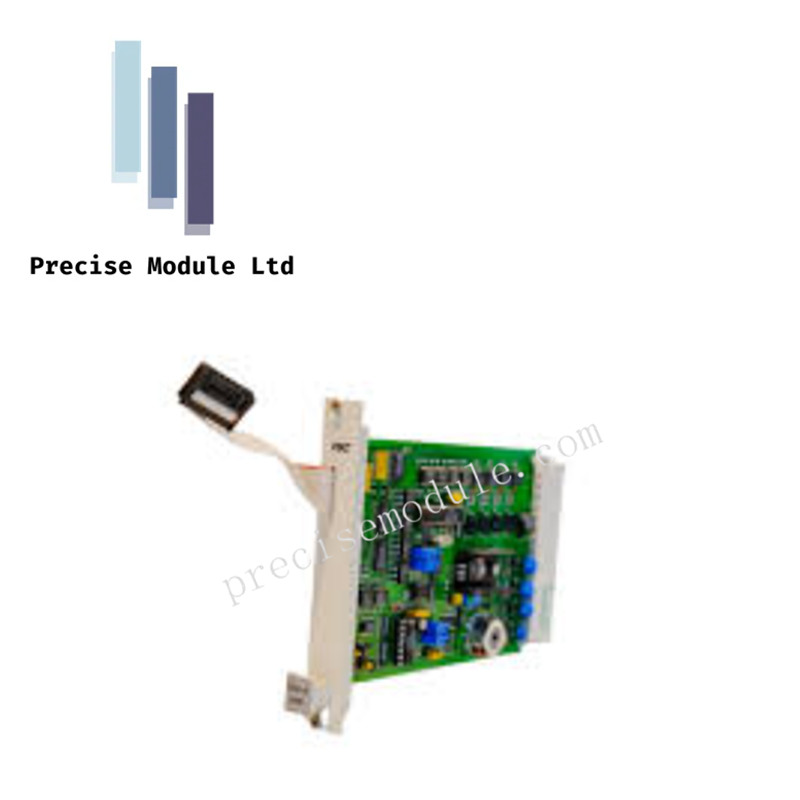

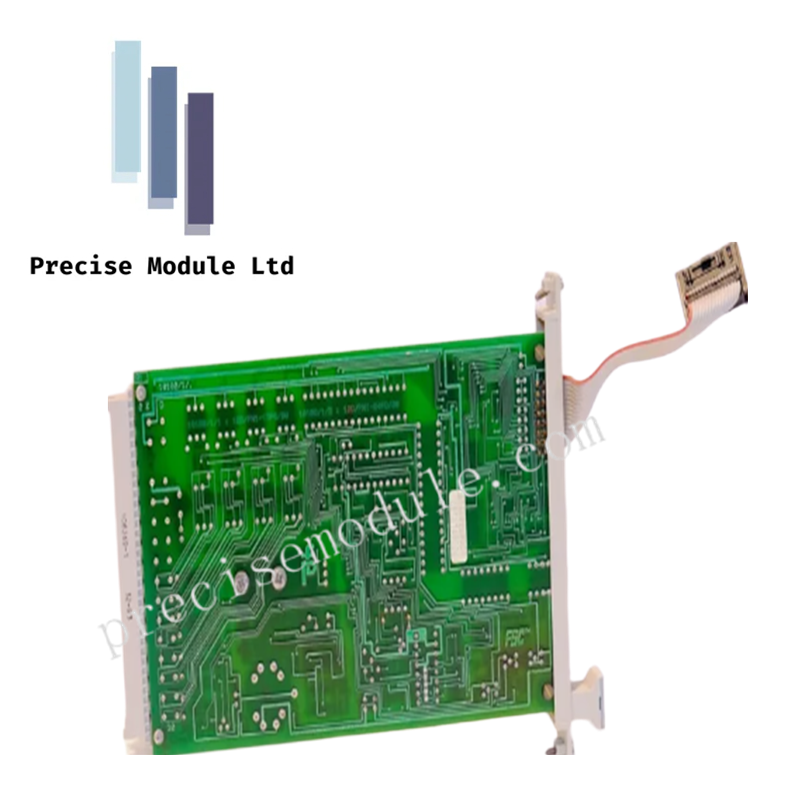

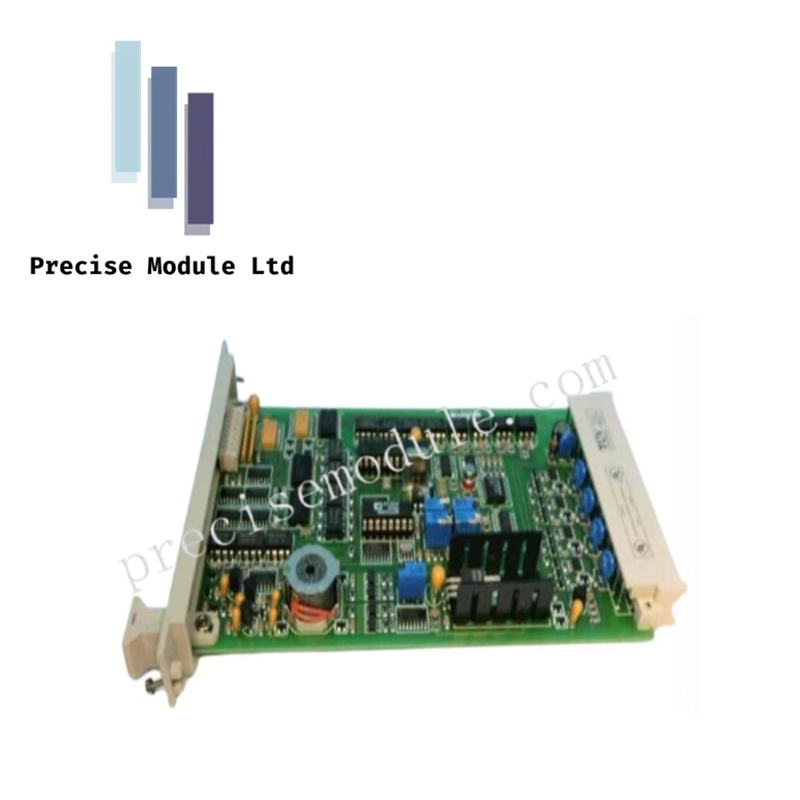

Honeywell 10102/2/1 FSC Fail-safe Digital Input Module

The Honeywell 10102/2/1 serves as the primary 10102/2/1 Digital Input Module utilized to execute fail-safe discrete signal acquisition across Honeywell FSC safety control platforms. The module monitors low-voltage field input signals through four dedicated channels and transfers validated input states to the safety controller for logic processing.

Hardware Specifications

Fail-Safe Input Processing and Channel Isolation

The 10102/2/1 module is designed for fail-safe monitoring of discrete field signals within Honeywell FSC safety systems. Each input channel is intended to detect and communicate field-state conditions to the safety controller while maintaining the diagnostic behavior required for safety-related applications.

The high input resistance minimizes loading effects on connected field circuits, allowing input status monitoring without significantly influencing circuit characteristics. The module architecture supports deterministic signal handling required by safety control strategies and shutdown functions.

When installed within an FSC platform, proper field wiring practices and channel segregation help maintain signal integrity and reduce susceptibility to electrical interference from adjacent circuits.

Frequently Asked Questions

Q: How many field input channels are available on the 10102/2/1 module?
A: The module provides four fail-safe digital input channels.

Q: What input signal range does the module accept?
A: The specified input range is 0 to 2 VDC.

Q: Does the module impose significant loading on the connected field circuit?
A: No. The input resistance is specified as greater than 100 kOhm, resulting in minimal loading of the monitored circuit.

Field Installation Guidelines

• Install the module only in compatible Honeywell FSC system racks.

• Verify software compatibility with Version 3.00 or later system requirements before commissioning.

• Route digital input wiring separately from power distribution and high-current conductors.

• Use shielded cable where required by site engineering standards.

• Confirm field voltage levels remain within the specified 0 to 2 VDC input range.

• Inspect terminal connections for proper retention before energizing the system.

• Maintain clear identification of safety-related field circuits during installation and maintenance.

• Perform functional input verification following module replacement or field wiring changes.
