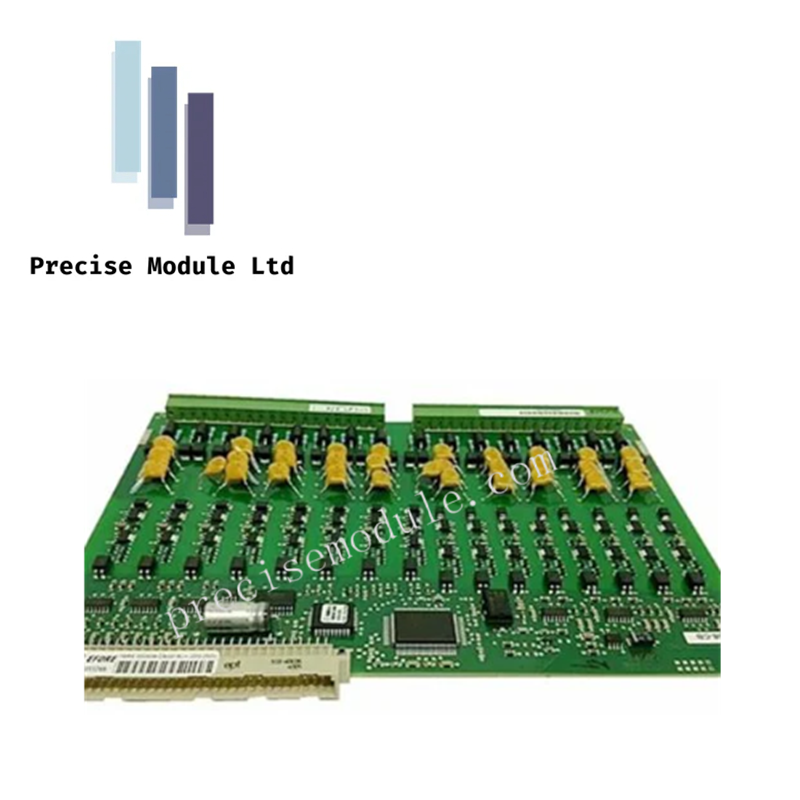

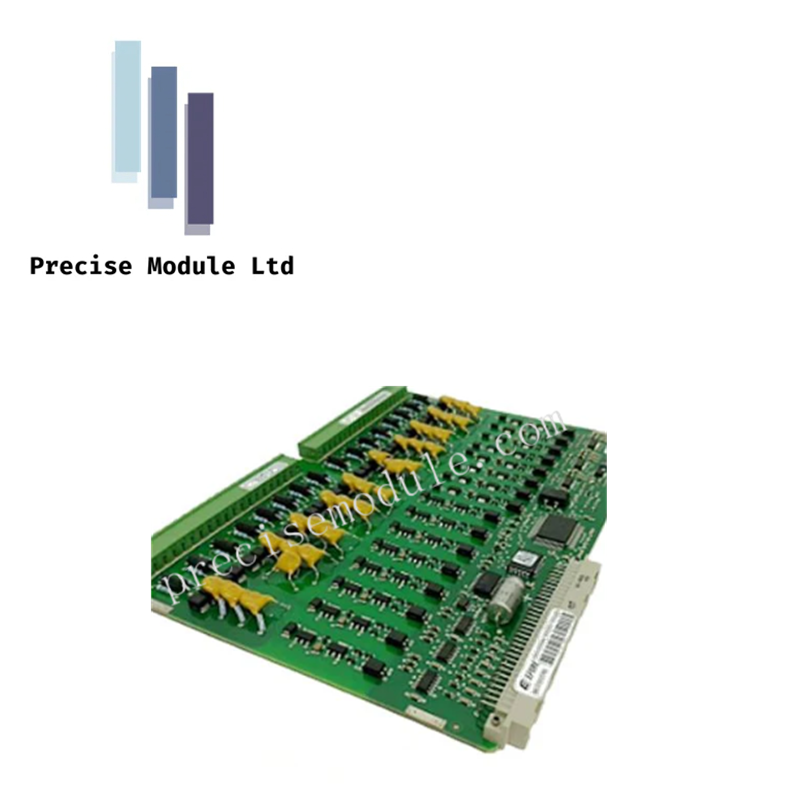

ABB 1MRK000508-CBr00 Binary Input Module

Product Overview

The 1MRK000508-CB is a high-voltage binary input module engineered by ABB for integration into the Relion REx670 series and other high-tier protection and control systems. Identified by revision code 1MRK000508-CBr00, this module acts as a robust interface for capturing discrete field signals in utility-grade environments. Unlike low-voltage logic cards, the 1MRK000508-CB (1MRK000508-CBr00) is specifically rated for 110–125 VDC control circuits, making it ideal for monitoring circuit breaker auxiliary contacts, disconnector positions, and external trip commands in substations and power generation facilities. Its design prioritizes signal integrity, ensuring that high-voltage transients do not result in false triggering of the protection logic.

Technical Specifications

The following parameters define the electrical and environmental performance of the 1MRK000508-CB module:

Operational Capabilities

The 1MRK000508-CB (1MRK000508-CBr00) provides essential benefits for mission-critical automation:

• High-Voltage Signal Direct Sensing: Eliminates the need for interposing relays when monitoring 110/125 VDC control buses, reducing latency and complexity in the protection path.

• Redundant Status Reporting: The 1 NO and 1 NC contact configuration allows for complementary logic checking, ensuring the module can detect "stuck" contacts or wiring faults.

• Substation Hardening: Built to withstand the rigorous vibration and thermal cycling common in industrial process plants and remote power distribution hubs.

• Low Thermal Signature: With a current draw of only 30 mA, the module maintains a cool operating state, extending the lifespan of adjacent components in the IED chassis.
