ABB|1MRK000508-CDrO6|I/O Digital Module

Product Overview

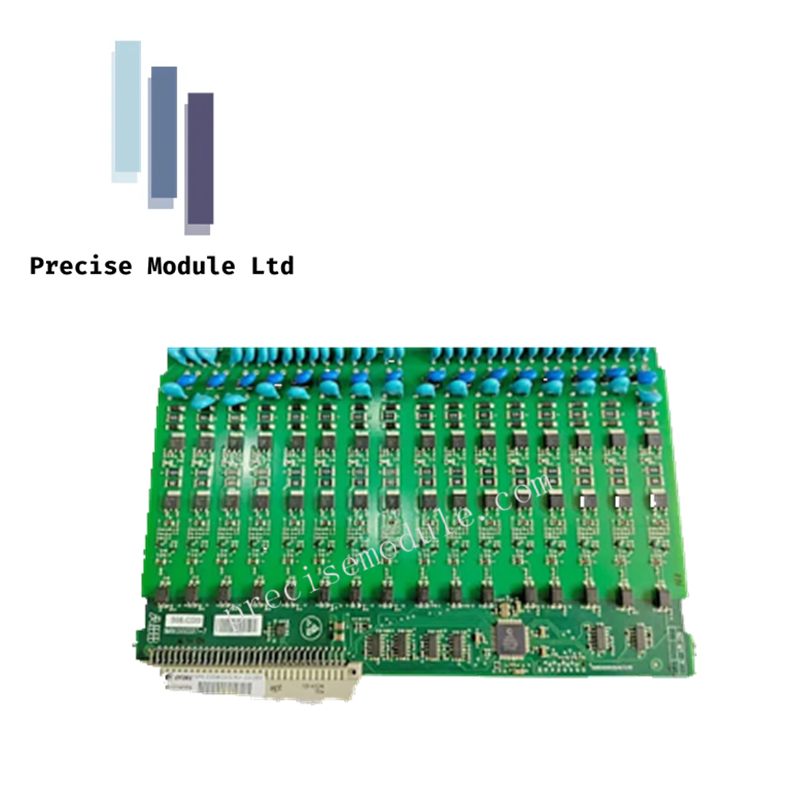

The 1MRK000508-CDrO6 is a high-precision digital input/output expansion component developed by ABB for the Relion 615 series of protection and control relays. Specifically engineered for transformer protection units like the RET615, this module facilitates the acquisition of discrete field signals and the execution of control commands. The 1MRK000508-CDrO6 (1MRK000508-CDrO6) is essential for monitoring breaker positions, disconnect switch statuses, and alarms, while providing the rugged isolation required for high-voltage substation environments. Its compact form factor and integrated communication bus allow it to sit seamlessly within the relay’s internal architecture.

Technical Specifications

The following technical profile details the hardware capabilities of the 1MRK000508-CDrO6 module:

Key Functional Advantages

Designed for reliability in utility-grade power systems, the 1MRK000508-CDrO6 offers several distinct advantages:

• Substation Hardened: Built to withstand electromagnetic interference (EMI) and harsh thermal conditions typical of power distribution centers.

• Seamless Relion Integration: Native compatibility with the RET615 ensures that no external logic conversion is needed; the module is automatically recognized by the relay's firmware.

• Rapid Status Detection: Features low-latency debounce filtering on digital inputs to ensure accurate reporting of millisecond-level events.

• Versatile Control Output: Provides reliable contact closure for tripping circuits or signaling interlocks within a protection scheme.

Common Deployment Scenarios

The 1MRK000508-CDrO6 (1MRK000508-CDrO6) is primarily utilized in:

• RET615 Transformer Protection: Monitoring oil temperature alarms or Buchholz relay trips.

• Breaker Control: Providing digital feedback on circuit breaker auxiliary contacts.

• Automated Switchgear: Managing the status of grounding switches and motor-operated disconnects.
