ABB 1MRK002246-BDr02 Numeric Processing Module NUM

Product Overview

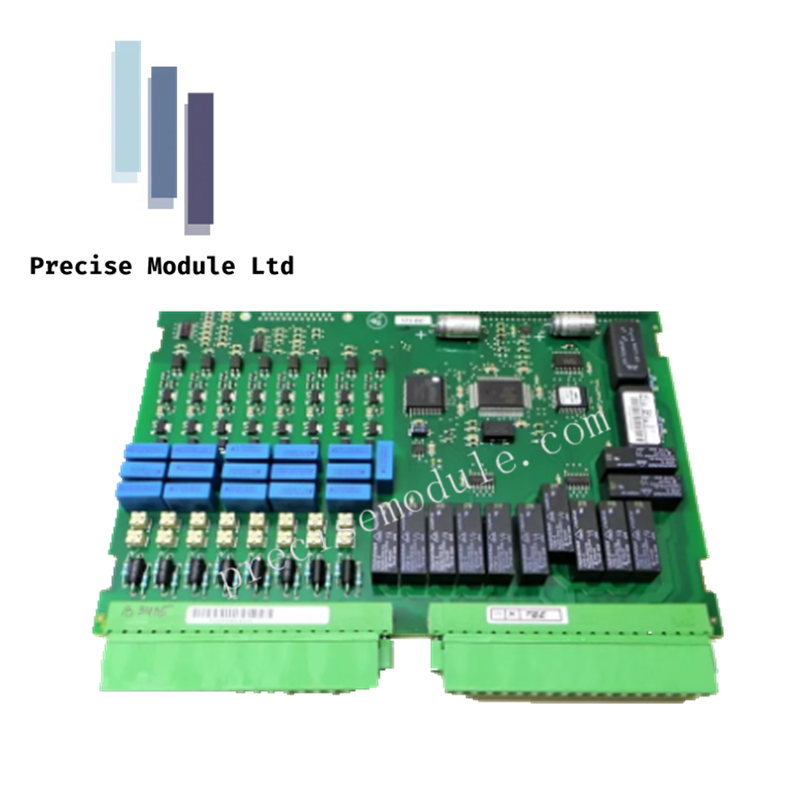

The 1MRK002246-BD is a high-speed Numeric Processing Module (NUM) engineered by ABB to serve as a dedicated computational engine for advanced industrial automation and robotic control systems. Identified by its revision code 1MRK002246-BDr02, this module is specifically designed to alleviate the calculation load on primary controllers by handling intensive mathematical operations and real-time data manipulation. By processing complex algorithms—such as kinematic transformations, sensor fusion data, and multi-axis coordination—directly on the hardware level, the 1MRK002246-BD (1MRK002246-BDr02) significantly reduces system latency and enhances the precision of robotic movements in demanding manufacturing environments.

Technical Specifications

The 1MRK002246-BD architecture is optimized for deterministic performance and seamless integration with the ABB control backplane.

Core Engineering Features

The 1MRK002246-BD (1MRK002246-BDr02) is more than a simple processor; it is a specialized tool for high-tier automation:

• Dedicated Numeric Offloading: By performing localized addition, subtraction, and complex trigonometry, the module prevents "processor choking" in the main CPU, ensuring the user interface and safety protocols remain responsive.

• Real-Time Sensor Integration: The NUM module processes instantaneous feedback from laser trackers, vision systems, or force-torque sensors, allowing the robot to make micro-adjustments in milliseconds.

• Dynamic Path Calculation: Enables the execution of intricate geometric paths and heavy data manipulation required for 6-axis or 7-axis coordinated motion.

• Industrial Hardening: Designed to operate within the high-vibration and electrically noisy environments typical of automotive assembly lines and heavy machining cells.

Comparison with Standard Control Modules

Standard I/O modules focus on signal transmission, whereas the 1MRK002246-BD is focused on logic throughput. While a standard CPU module manages the operating system and file structure, the 1MRK002246-BDr02 acts as a co-processor specifically tuned for the "heavy lifting" of mathematical data packets.
