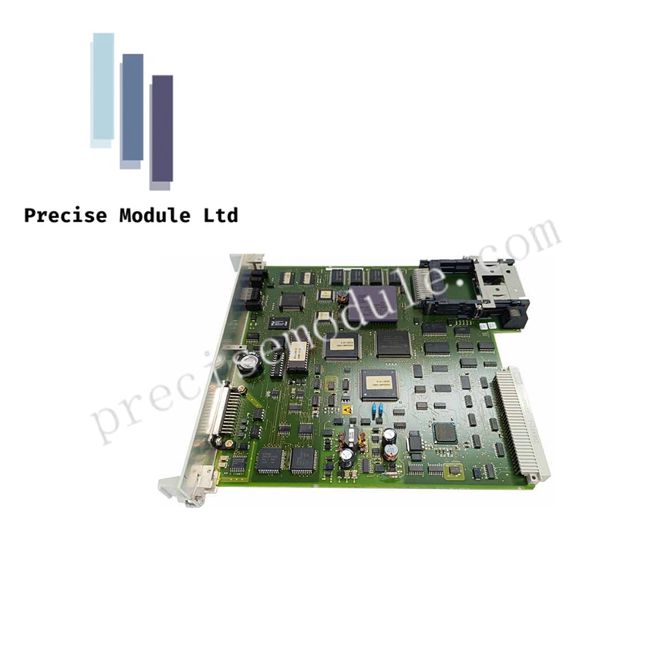

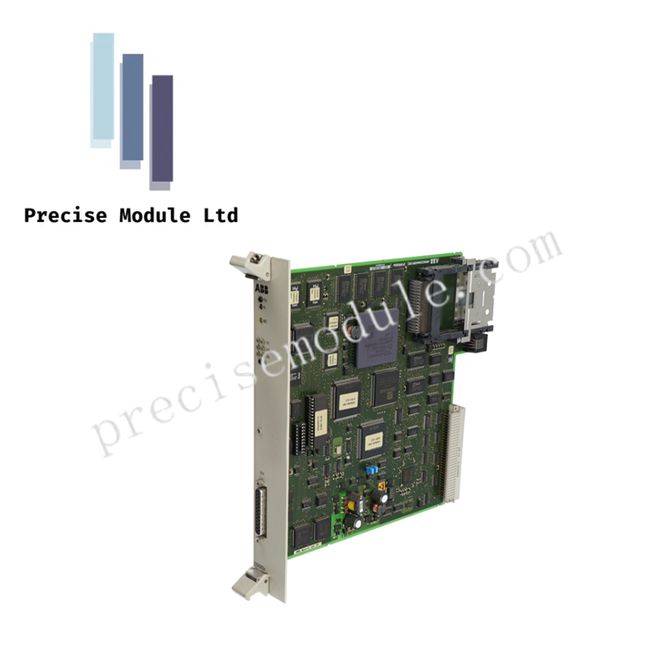

ABB 216VC62a REG216VC62A ProControl P13 Voltage Converter Module

Manufacturer: ABB
Product No.: 216VC62a
Condition：in Stock
Product Type: Voltage Converter
Product Origin: Switzerland
Payment:T/T, Western Union
Weight: 600g
Shipping port: Shanghai/Yiwu/Shenzhen
Warranty: 12 months

Quantity

Product Description

Overview

The ABB 216VC62a (REG216VC62A) is a high-reliability voltage converter and power supply unit designed for ABB ProControl P13 and DECONTIC control systems. It delivers stable, regulated DC power to sensitive electronic modules in critical process control environments such as power plants, substation automation, and turbine or boiler control. The module is designed for plug-in sub-rack installation, providing both robustness and serviceability in mission-critical applications.

Key Performance Features

High-Precision Voltage Regulation

Provides extremely stable outputs with minimal ripple and noise
Supports reliable operation of digital logic, analog-to-digital converters, and signal processing modules

Comprehensive Protection Features

Overvoltage Protection (OVP): Safeguards downstream electronics from voltage spikes
Short-Circuit Protection: Features current-limiting or fold-back mechanisms to prevent thermal damage
Thermal Monitoring: Built-in sensors trigger alarms or shutdown on over-temperature conditions

Redundancy and System Availability

Supports parallel operation for $N+1$ redundancy configurations
Hot-swappable: Can be replaced without shutting down the system in compatible racks

Industrial-Grade Durability

High MTBF suitable for continuous 24/7 operation
Electromagnetic Compatibility (EMC): Resistant to electrical noise and industrial surges

Technical Specifications

Feature	Specification
Processor	32-bit 80486DX-2
Input Voltage	24V DC standard, 48V DC optional, redundant capable
Output Voltages	Multiple regulated outputs: +5V, ±15V, 24V
Memory Storage	Flash EPROM for software, RAM for operating data
Non-volatile Storage	Flash EPROM and gold capacitor-backed event memory
Communication Interface	Potential-free RS-423 for PC operation, parallel bus B448C
Event Logging	Stores 256 events with 1ms resolution, time-tagged
Rack Size	Occupies 2 divisions in a 19", 6U equipment rack
Data Bus	IEEE P 896 compliant, asynchronous 16-bit multiplexed addresses
Status Indicators	Front-panel LEDs: Run, Fault, Voltage OK
Isolation	High galvanic isolation between input and output
Cooling	Natural convection or rack-assisted airflow
Time Synchronization	<10-second deviation per day without external sync

Applications

Power generation turbine and boiler control
Substation and process automation systems
Digital signal processing and control modules in ABB ProControl P13 racks
High-availability industrial environments requiring redundant power

FAQ

Q: Can multiple 216VC62a modules operate in parallel for redundancy?
A: Yes, parallel operation is supported for N+1 redundancy.

Q: Is hot-swapping possible without system downtime?
A: Yes, the module is hot-swappable in compatible rack systems.

Q: How accurate is event time-tagging?
A: Events are time-stamped with 1ms resolution, and daily deviation is <10 seconds without external synchronization.
