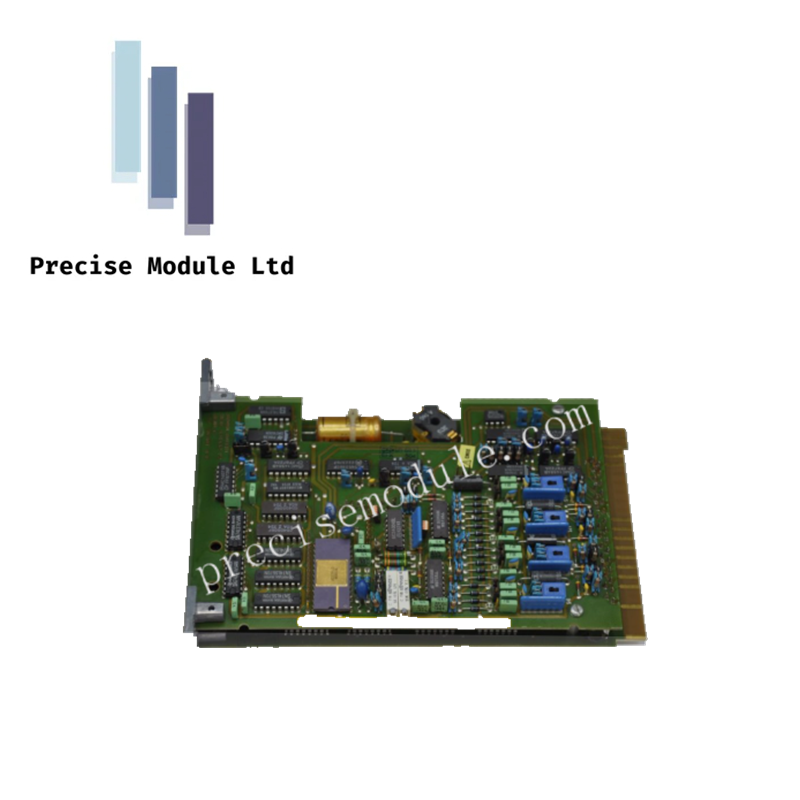

ABB 70EA01b-E HESG447038R1 Analog Input Module

Product Overview

The 70EA01b-E (Part Number HESG447038R1) is a high-performance analog input module belonging to the legendary ABB Procontrol P13 series. Specifically engineered for mission-critical turbine control and large-scale power plant automation, this module acts as a high-fidelity bridge between field instrumentation and the central control logic. It is designed to capture and process analog signals with extreme stability, ensuring that data from pressure, temperature, and flow sensors is accurately converted for real-time decision-making. Its robust electrical design and wide operating temperature range make it a standard choice for the most demanding utility and industrial environments.

Technical Specifications

• Model Designation: 70EA01b-E

• ABB Ordering Number: HESG447038R1

• Product Series: Procontrol P13

• Functional Category: Analog Input (AI) Interface

• Operating Voltage: 24V DC (Nominal)

• Thermal Operating Range: -25°C to +60°C (-13°F to 140°F)

• Storage Temperature: -40°C to +70°C (-40°F to 158°F)

• Humidity Tolerance: 5% to 95% RH (Non-condensing)

• Installation Type: Standard Procontrol P13 Rail Mounting

• Physical Profile: 1.98 cm x 0.2 cm x 2.61 cm

• Net Weight: 0.2 kg (0.44 lbs)

• Build Quality: Multi-layer PCB with industrial-grade hardening

Mission-Critical Turbine Control

In power generation, the 70EA01b-E is a vital component of the "Governor" and "Protection" layers. Because turbine control requires sub-millisecond response times and zero signal drift, the Procontrol P13 architecture utilizes the 70EA01b-E to maintain absolute signal integrity. The module's compact form factor allows for high-density I/O configurations within the control cabinet, while its specialized circuitry provides the noise rejection necessary to operate in close proximity to high-voltage switchgear and massive rotating machinery.
