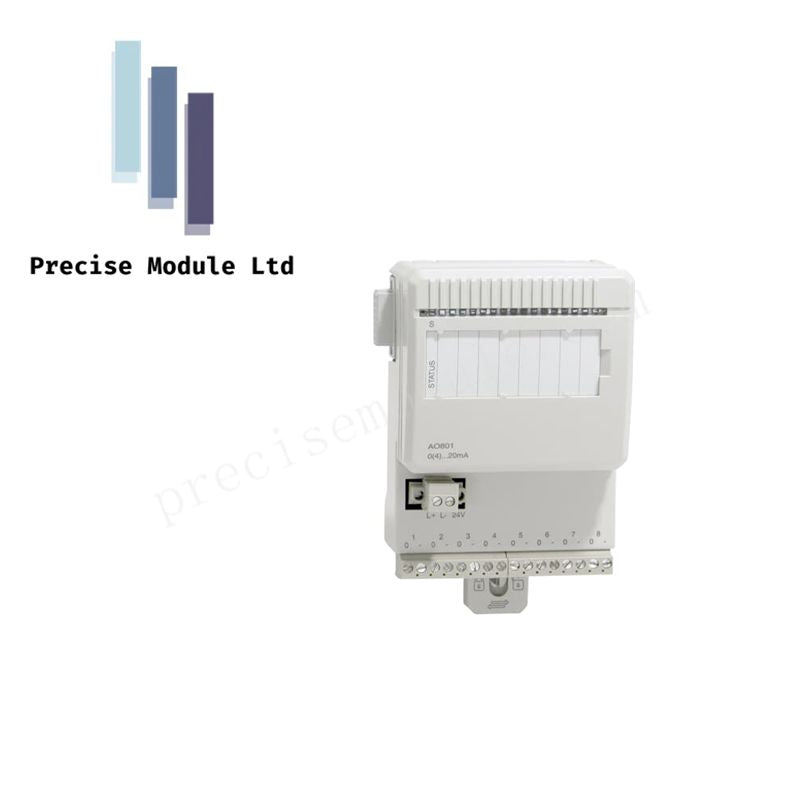

ABB AO801 – Analog Output Module

Manufacturer: ABB
Product No.: AO801
Condition：in Stock
Product Type: Analog Output Module
Product Origin: Switzerland
Payment:T/T, Western Union
Weight: 220g
Shipping port: Shanghai/Yiwu/Shenzhen
Warranty: 12 months

Quantity

ABB AO801 – Analog Output Module

Part Number: 3BSE020514R1

Product Overview

The ABB AO801 is an 8-channel analog output module designed for the ABB S800 I/O system. It provides two groups of four individually isolated current outputs, ensuring high reliability and precise control of process devices. With its 12-bit resolution, the AO801 is well-suited for industrial automation applications requiring accurate signal generation. The module is compact, DIN-rail mountable, and must be used with a compatible Module Termination Unit (MTU).

Technical Specifications

Parameter	Specification
Manufacturer	ABB
Model	AO801
Part Number	3BSE020514R1
Product Type	Analog Output Module
System Compatibility	ABB S800 I/O system
Number of Channels	8 (2 groups of 4, isolated)
Output Type	Current
Output Range	0–20 mA, 4–20 mA
Resolution	12 bits
Power Consumption	2.2 W
Dimensions (W × H × D)	45 × 119 × 102 mm
Net Weight	0.22 kg
Operating Temperature	0 °C to +55 °C
Mounting Type	DIN rail, S800 I/O MTU required
