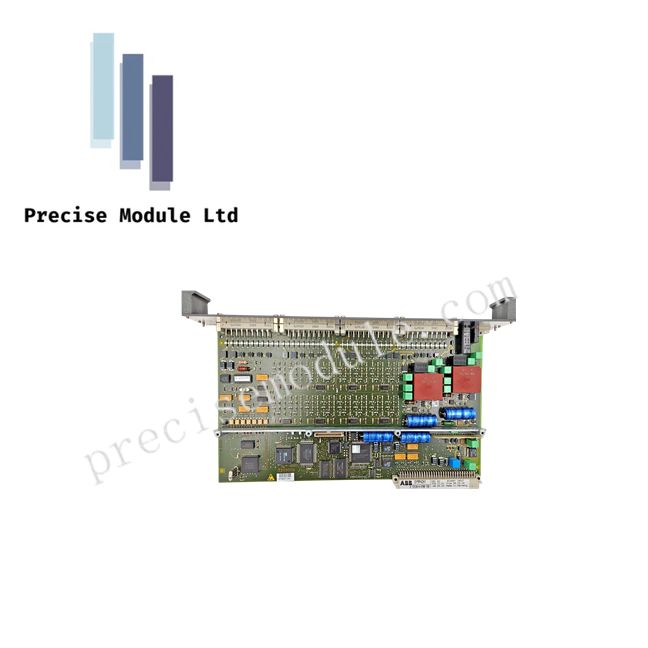

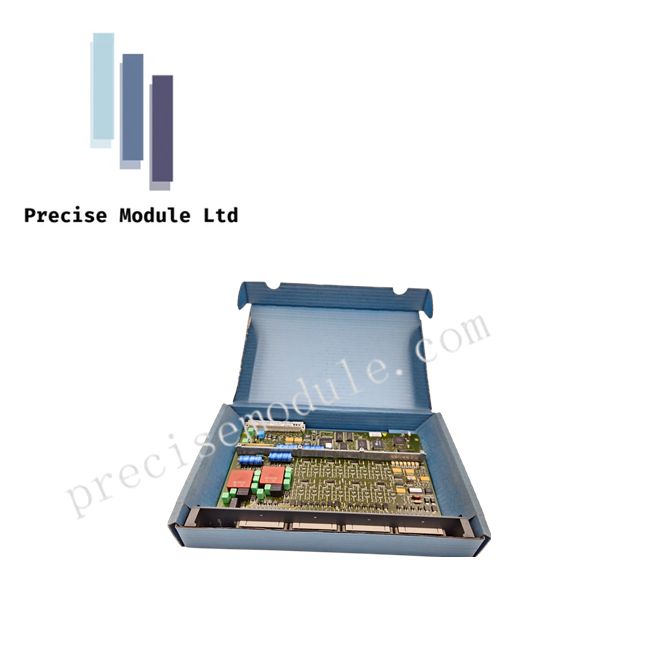

ABB CAI20 3BDH000722R1 Analog Input Module Symphony Melody DCS

Product Description

Overview

The ABB CAI20 (3BDH000722R1) is a high-density Analog Input Module designed for ABB Symphony Melody Distributed Control Systems (DCS), formerly Hartmann & Braun Contronic. It provides precise acquisition of analog signals from field transmitters in power plants, process industries, and large automation networks. The module integrates signal conditioning, electrical isolation, and A/D conversion to ensure reliable and accurate data delivery to the control system.

Key Features

• Supports up to 32 analog inputs for current (0/4–20 mA) or voltage (0–10 V) signals, depending on configuration

• Compatible with 2-wire and 4-wire transmitters, including HART protocol (v5.0 / 5.1) communication for remote configuration and diagnostics

• Configurable in four groups of eight channels to match system design and wiring requirements

• Integrated transmitter supply, short-circuit and overload-proof for enhanced reliability

• Redundant operation capability for high-availability installations

• Continuous self-monitoring and field supervision for wire breaks, short circuits, and module faults

Performance and Technical Advantages

• High update speed: < 40 ms for real-time process monitoring

• Low-pass filtering (T = 100 ms) for stable and noise-free measurements

• Group-wise electrical isolation (500 Veff) to protect control system logic from field-side disturbances

• Supports up to 32 digital actuators of “Contrac” type for advanced control integration

Technical Specifications

Application Scenarios

• Acquisition of analog signals in power generation and industrial processes

• Direct interface to 2-wire or 4-wire HART transmitters without external multiplexers

• High-density monitoring in utility plants and large automation systems

• Simplified maintenance and wiring for smart instrumentation networks

FAQ

Q: Can the CAI20 handle both current and voltage inputs?
A: Yes, the module supports 0/4–20 mA current and 0–10 V voltage signals, with separate configuration groups.

Q: Does it support HART communication?
A: Yes, the CAI20 includes full HART protocol support (v5.0 / 5.1) for transmitter diagnostics and remote configuration.

Q: Is the module suitable for redundant operation?
A: Yes, it can operate in redundant mode for critical processes where system uptime is essential.

Q: How are field faults handled?
A: The module continuously monitors connected transmitters for wire breaks and short circuits and reports issues via onboard LEDs and the system bus.
