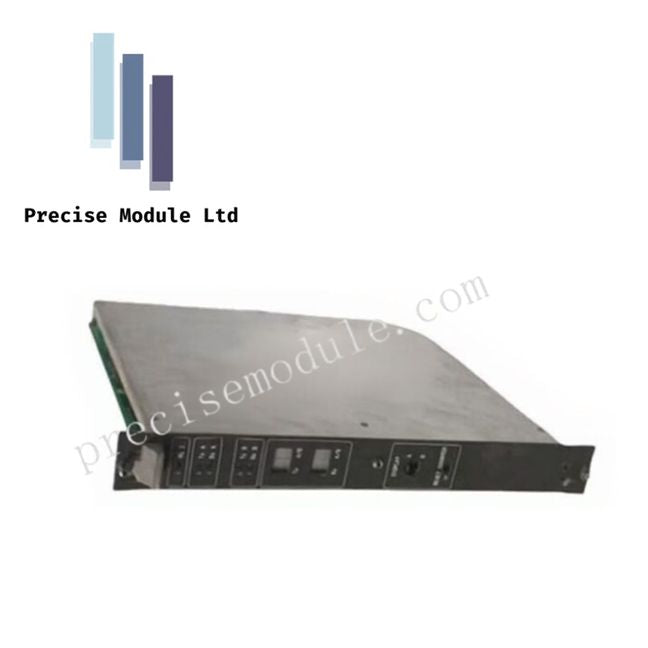

ABB G4AA HENF209644R5 RF Converter Control Board | ETL600 Module

Manufacturer: ABB
Product No.: G4AA HENF209644R5
Condition：in Stock
Product Type: RF-Converter Module
Product Origin: Switzerland
Payment:T/T, Western Union
Weight: 750g
Shipping port: Shanghai/Yiwu/Shenzhen
Warranty: 12 months

Quantity

Product Description

Overview

The ABB G4AA (HENF209644R5) is a high-performance P4LTb RF-Converter Control Board designed for the ABB ETL600 Digital Power Line Carrier System (Release 1.0). It integrates a DPLC modem, a Digital Signal Processor (DSP), and a Human-Machine Interface (HMI) into a single compact module. Its primary function is to convert low-frequency (LF) signals into radio-frequency (RF) signals, enabling reliable data transmission across high-voltage power lines used in grid monitoring, protection, and utility communications.

This control board combines signal processing, RF conversion, and system monitoring into one module, reducing cabinet complexity while enhancing signal integrity.

Technical Specifications

Feature	Specification
Model / Part Number	G4AA HENF209644R5
Product Type	P4LTb RF-Converter Control Board
System Compatibility	ABB ETL600 Digital Power Line Carrier System (Release 1.0)
Function	LF ↔ RF signal conversion with integrated DSP and HMI
Data Transmission Rate	Narrowband, 50 – 9,600 bps
Voltage Inputs	1 × V.11, 2 × V.24
Communication Interfaces	4 × RS-232 (V.24/V), Sub-D 15-pin (V.11), Sub-D 9-pin (HMI RS-232/RS-485), IRIG-B port
Status Indicators	RDY (green) – system ready, P4LT (red) – hardware alarm, SYS (red) – system alarm
Operating Temperature	–20 °C to +70 °C (–4 °F to +158 °F)
Humidity Tolerance	Up to 95% non-condensing
Dimensions	132 mm × 53 mm × 65 mm
Weight	0.75 kg
Mounting	Rack-mountable, compact form factor suitable for ETL600 chassis
Industrial Hardening	EMI-resistant, surge protection, vibration-tolerant for substation environments

Key Features

Integrated LF-to-RF Conversion
The board performs internal modulation and demodulation, eliminating external converters and maintaining high signal fidelity for mission-critical utility applications.

Advanced DSP Filtering
The onboard Digital Signal Processor reduces noise and interference on power lines, ensuring accurate delivery of tripping signals and other sensitive communications.

LED-Based Diagnostic Indicators
Three front-panel LEDs allow rapid system assessment and troubleshooting without specialized tools: RDY for operational readiness, P4LT for board-level faults, and SYS for cabinet-level alarms.

Flexible Interface and Synchronization
Supports multiple RS-232 ports and IRIG-B for precise GPS-based time synchronization, essential for accurate event logging in grid monitoring systems.

Rugged Industrial Design
Engineered to operate in high-voltage substation environments, the board meets EMC requirements, resists electrical surges, and tolerates extreme temperatures and humidity.

Applications

Power line monitoring and protection systems
Utility grid communication networks
Substation automation and remote control
Integration with ETL600 DPLC systems for industrial telemetry

FAQ

Q: Can the G4AA HENF209644R5 module be hot-swapped?
A: Yes, it is designed for plug-in replacement within the ETL600 rack without system shutdown.

Q: Which data transmission rates does it support?RF-Converter Module
A: Narrowband transmission ranging from 50 to 9,600 bps.

Q: How does it integrate with timing systems?
A: The IRIG-B port allows synchronization with high-precision GPS clocks for accurate event timestamping.G4AA HENF209644R5
