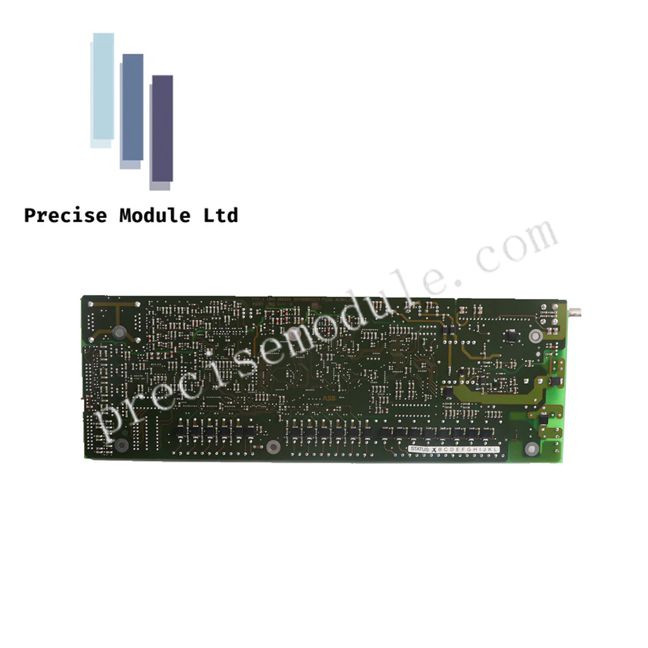

ABB IMCPM03 Multi-Function Processor | INFI 90 / Net 90 Module

ABB IMCPM03 Multi-Function Processor | INFI 90 / Net 90 Module

  • Manufacturer: ABB

  • Product No.: IMCPM03

  • Condition：in Stock

  • Product Type: Multi-Function Processor

  • Product Origin: Switzerland

  • Payment:T/T, Western Union

  • Weight: 1000g

  • Shipping port: Shanghai/Yiwu/Shenzhen

  • Warranty: 12 months

Product Description

Overview

The ABB IMCPM03 is a versatile Multi-Function Processor (MFP) Module designed for INFI 90 and Network 90 distributed control systems. It serves as the primary intelligence for a Control Unit, performing high-level control, managing I/O data, and facilitating communication across the control network. The module is ideal for continuous, batch, and sequential control applications in complex industrial environments.

Technical Specifications

Feature Specification
Model / Order Number IMCPM03
Module Type Multi-Function Processor (MFP)
Compatible Systems INFI 90, Network 90
Microprocessor Motorola 68000 Series High-Performance
Memory (RAM) 512 KB to 1 MB, battery-backed for retention
I/O Capacity Up to 64 Slave Modules via I/O Expander Bus
Instruction Execution High-speed processing of functional blocks
Communication Interface Interfaces with NIS/NPM for Cnet connectivity
Operating Voltage +5 VDC from MMU backplane
Power Consumption Approximately 10 Watts
Indicators 16-segment front-panel LED for status and diagnostics
Dimensions 5.1 cm x 17.8 cm x 33.0 cm (2.0" x 7.0" x 13.0")
Weight 0.4 kg (13.6 oz)
Programming Tools ABB Composer or WinCAD
Redundancy Support Configurable in redundant pair with bumpless transfer
Non-Volatile Storage Battery-backed RAM preserves configuration and process data

Functional Highlights

  • Advanced Control Library: Supports PID loops, timers, logic gates, mathematical functions, and custom functional blocks.

  • Redundant Operation: When paired, a secondary IMCPM03 automatically takes over without interrupting the process in case of a primary failure.

  • Flexible Programming: Online configuration changes are possible using standard ABB engineering tools.

  • Real-Time Diagnostics: Self-tests detect bus errors, battery voltage issues, or hardware faults, displaying error codes on the front LED.

  • Non-Volatile Memory: Maintains critical configuration and process variables during power outages for rapid recovery.

Applications

  • Power generation plants, water/wastewater treatment, and chemical processing facilities.

  • Process control and monitoring in cement, pulp and paper, petrochemical, pharmaceutical, and food industries.

  • Distributed control in metallurgical, petroleum, textile, and other industrial systems requiring high reliability and centralized intelligence.

Installation & Maintenance

Ensure the onboard battery is functional to maintain configuration and process data. Verify Address Select Dip-switch settings before installation to avoid conflicts on the I/O bus. The module is rack-mounted in standard MMU slots and integrates with NIS/NPM for network communication.

Related ABB Models

XVC768102, 3BHB007211R102, 5SGY3545L0010, 3BHB006485R0001, 3BHB030310R0001, 5SHY4045L0006, 5SHY3545L0010, 3BHB013088R0001, 3BHE009681R0101, GVC750BE101

FAQ

Q: What control strategies can IMCPM03 execute?
A: Continuous, batch, and sequential control using PID, timers, and custom function blocks.

Q: Can it operate in redundant mode?
A: Yes, a secondary IMCPM03 can take over automatically without process interruption.

Q: How is configuration preserved during power loss?
A: Battery-backed RAM maintains configuration and process data for smooth recovery.
