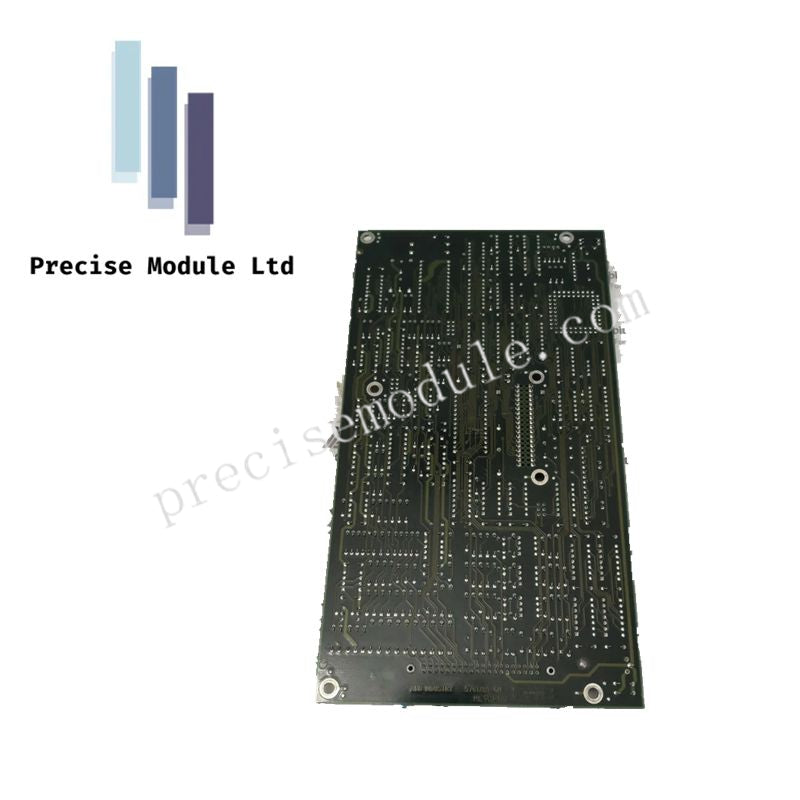

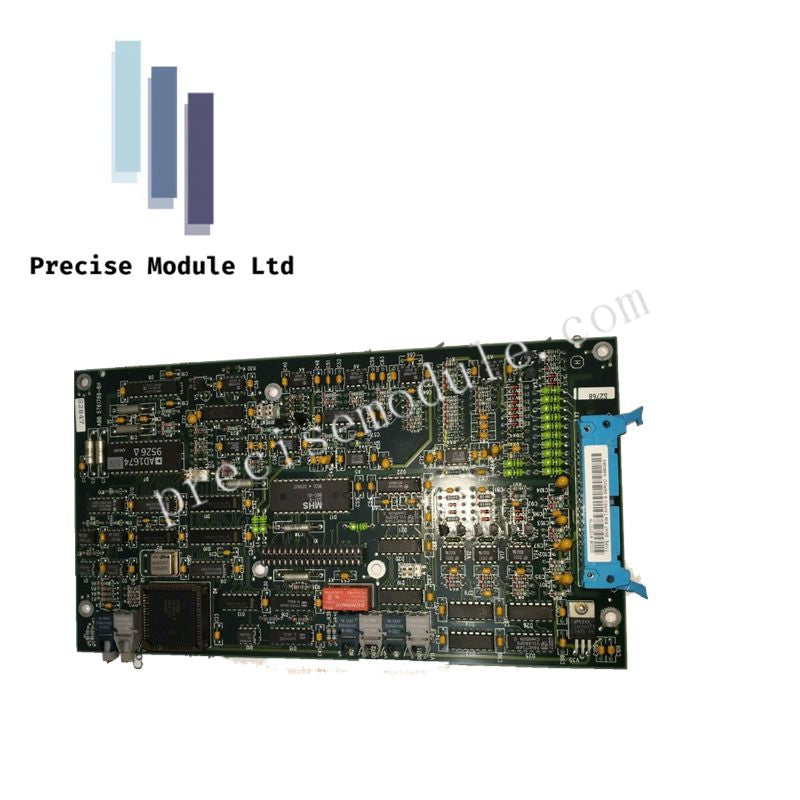

ABB IMDER02 Digital Switching Repeater

Basic Information

• Product model : IMDER02

• Product Type : Digital Exchange Repeater

• Application system : ABB Infi 90 system

• Installation method : Standard DCS rack installation

• Compatibility : Can be used with other modules of the Infi 90 system (such as IMDSI01)

Core functions and features

• Signal relay and amplification

  • Acts as a signal amplifier and repeater in Infi-Net communication networks

  • The main function is to amplify and forward digital signals to extend the network range or connect different network segments.

• Communication Protocol

  • Support Infi-Net protocol (special protocol for ABB's early DCS system)

• Power supply

  • Powered by the system backplane

  • No separate external power supply required

• Status Indicator

  • Equipped with LED indicator light

  • Displays connection status and error messages for quick diagnosis

Physical parameters

• Length : 17.8 cm

• Width : 5.1 cm

• Height : 30.5 cm

• Weight : 0.3 kg
