ABB RET670 1MRK000008-NBr02 HMI Display Panel Relion 670

Product Description

Overview

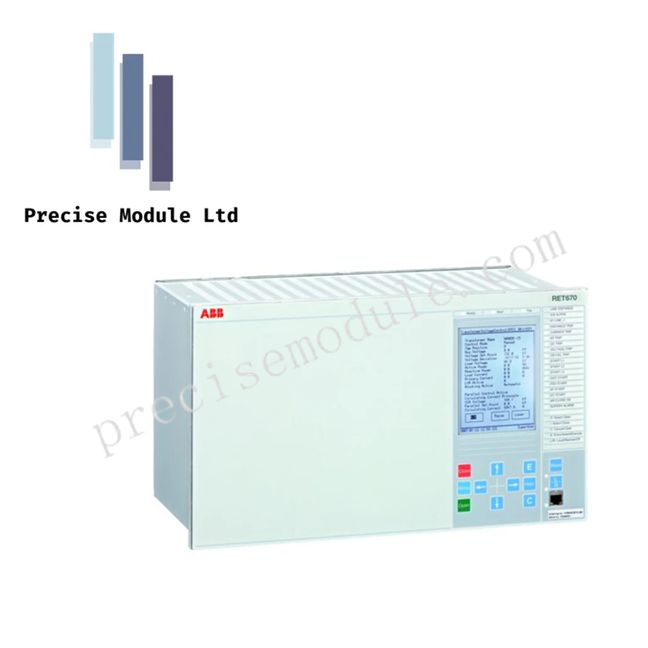

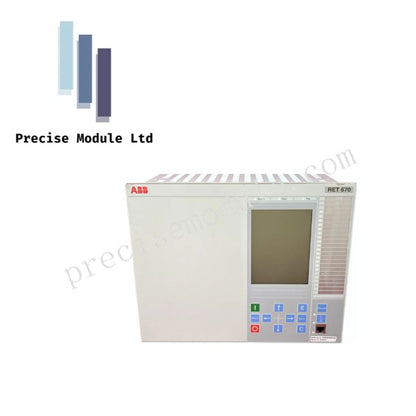

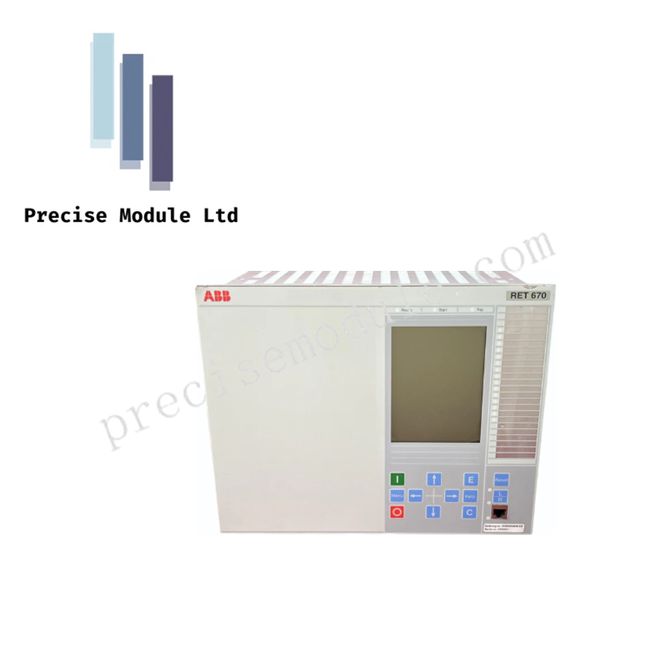

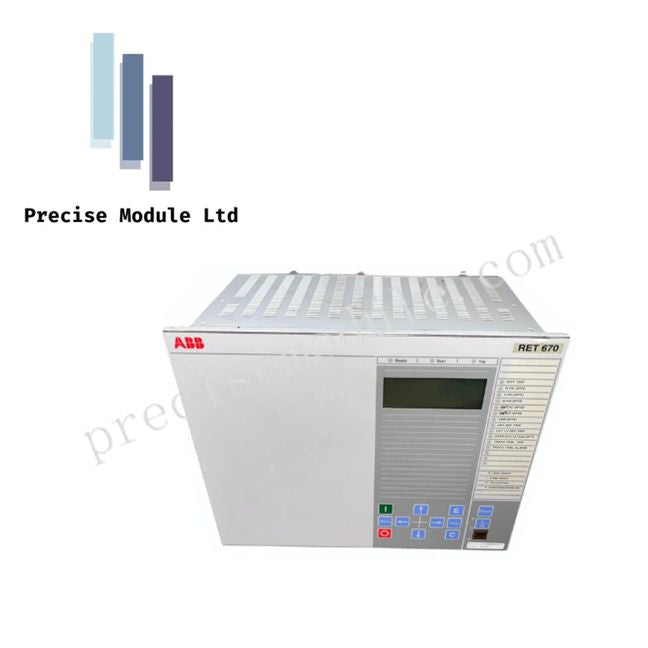

The RET670 (1MRK000008-NBr02) is a graphical Human-Machine Interface (HMI) module for the ABB Relion® 670 series transformer protection relay. It provides local visualization, monitoring, and control of transformers and shunt reactors in transmission and high-voltage substations. This module allows operators to view live measurements, acknowledge alarms, and perform manual operations without requiring a laptop or external interface.

Key Features

• Graphical Local Interface: High-resolution LCD with single-line diagrams, phasor displays, and event lists for real-time monitoring.

• Tactile Navigation: Industrial-grade push-buttons with Select-Before-Operate logic for secure local control.

• Advanced Transformer Protection Integration: Fully synchronized with RET670’s differential, restricted earth fault, and thermal overload protection algorithms.

• Multilingual Operation: Configurable interface supporting multiple global languages for on-site usability.

• Event Logging: Stores historical fault records, operational events, and disturbance recordings for diagnostic review.

• Secure Access: Role-based user authentication and activity logging to protect relay configuration and operations.

• Ruggedized Design: Built to withstand harsh substation environments with reliable front-panel mounting.

Technical Specifications

Application Scenarios

Ideal for transmission-level substations requiring high-reliability transformer protection with local monitoring. Enables operators to manage two- and three-winding transformers, autotransformers, and generator-transformer units efficiently.

FAQ

Q: Can the HMI module operate independently from the RET670 relay?
A: No, it requires connection to the RET670 base unit to function.

Q: What does the NBr02 suffix indicate?
A: It denotes the specific display revision and size; exact matching is essential for ribbon cable alignment and mounting.

Q: Does it support multiple languages?
A: Yes, the interface can be configured for multiple languages for global deployment.
