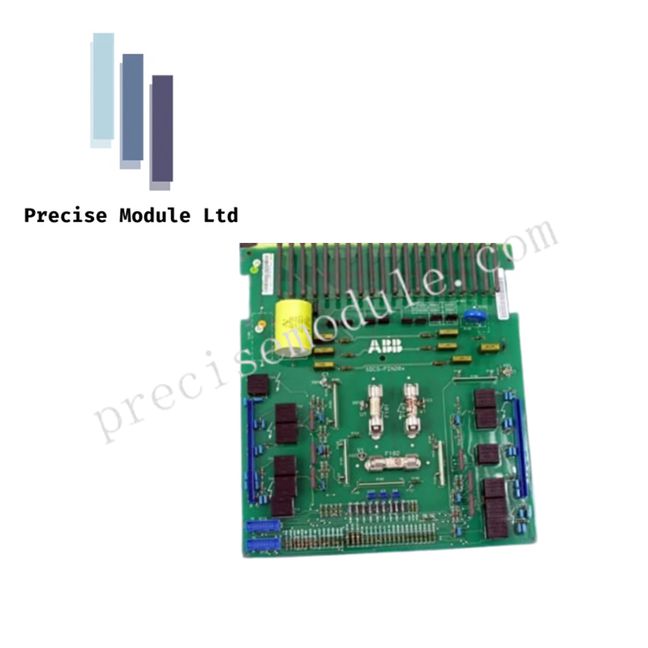

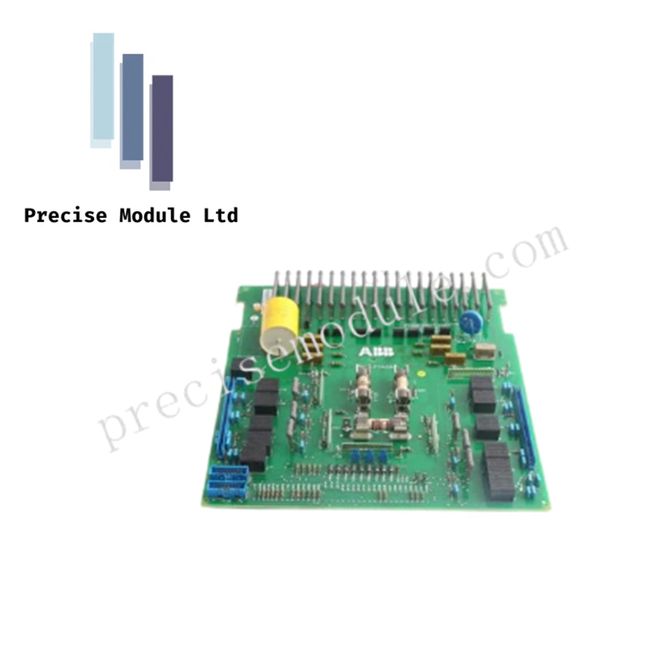

ABB SDCS-PIN-205B 3BHE009319R0001 DC Drive Power Interface Board

Product Description

Overview

The SDCS-PIN-205B (3BHE009319R0001) is a critical Pulse Interface and Scaling Board for ABB DC drives, primarily used in the DCS800 and modern DCS500 series. It bridges the high-power thyristor modules and the control electronics, delivering precise signal scaling, reliable thyristor firing, and robust voltage and current monitoring.

Key Features

• High-Precision Signal Scaling: Converts high-voltage armature and AC mains signals to low-voltage levels compatible with control boards, enabling accurate motor speed and torque control.

• Thyristor Gate Distribution: Delivers firing pulses to SCRs with precise timing and energy for reliable conduction.

• Galvanic Isolation: Protects sensitive control electronics from high-voltage transients and potential power section faults.

• Current Measurement Integration: Works with CTs or shunts to monitor armature current in real time, supporting overcurrent protection.

• Mains Voltage Monitoring: Tracks 3-phase AC supply for undervoltage, overvoltage, and phase loss to ensure safe operation.

Applications

Designed for high-power DC drive systems in industrial environments, including metal processing, mining, and material handling. Often the first diagnostic point when investigating measurement faults or drive alarms.

FAQ

Q: Can the SDCS-PIN-205B fail without a visible hardware issue?
A: Yes. Misreporting of voltage or current signals may occur due to degraded connections or internal component wear, triggering false overcurrent or mains voltage faults.

Q: How is this board installed in the drive?
A: It is mounted adjacent to or behind the power modules, interfacing directly with the thyristor bridge and the SDCS-CON control boards.

Q: Are there compatible alternatives?
A: Earlier DCS500 versions used simpler PIN boards; the SDCS-PIN-205B offers enhanced isolation, measurement accuracy, and reliability for both DCS800 and updated DCS500 drives.
