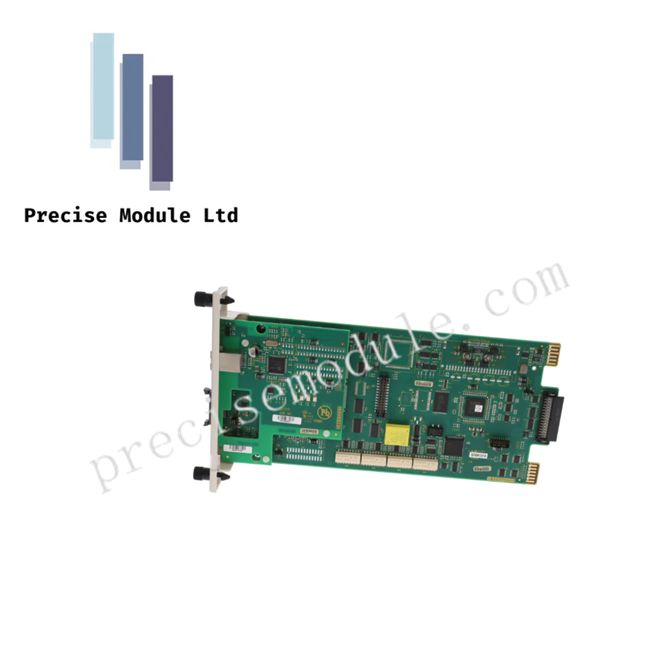

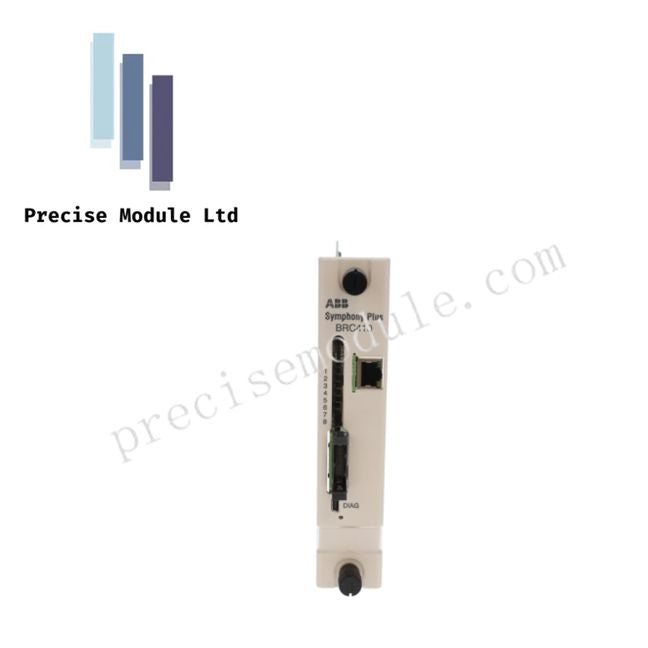

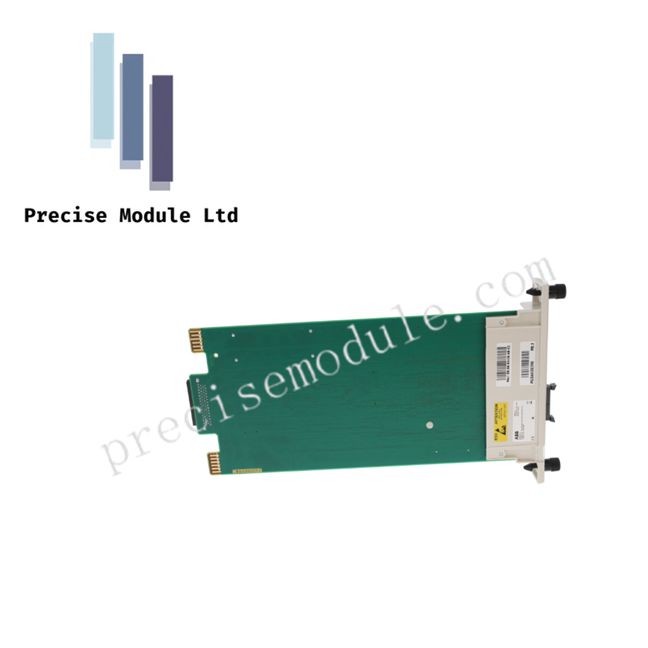

ABB SPBRC410 Bridge Controller for Symphony Plus DCS

Product Description

Overview

The ABB SPBRC410 is a high-performance Bridge Controller designed for the Symphony® Plus and Harmony Rack Distributed Control Systems. It enables seamless integration of legacy Bailey Infi 90 controllers into modern Symphony Plus platforms, providing advanced control and communication bridging without replacing existing I/O infrastructure.

Technical Features

Integrated Control and Communication

The SPBRC410 executes complex process control logic while managing high-speed data exchange across multiple network layers. It supports diverse programming methods including Function Code logic, Batch 90, and C-based control applications.

Modbus TCP Native Connectivity

Equipped with a built-in Modbus TCP interface, the SPBRC410 eliminates the need for separate gateway modules. It allows direct communication with VFDs, motor control centers, smart instruments, and third-party SCADA systems over Ethernet.

Redundancy and Reliability

The controller supports 1-to-1 hot standby redundancy, ensuring uninterrupted operation. In the event of a fault in the primary unit, the secondary controller assumes control within milliseconds.

Bridge Function for Legacy Systems

The SPBRC410 allows continued use of existing Bailey Infi 90 I/O modules while benefiting from modern processing power, enhanced cybersecurity, and Ethernet-based communication.

Industrial Durability

• Operating temperature: -40°C to 70°C

• Lithium button cell backup preserves real-time clock and configuration data during power interruptions

• Continuous self-monitoring of CPU, memory, and network health, with status displayed via LED indicators

Specifications

Applications

The SPBRC410 is ideal for phased upgrades in power generation, water treatment, oil and gas, pulp and paper, and other process industries. It provides a reliable pathway for migrating legacy Bailey Infi 90 systems to modern Ethernet-enabled control architectures without extensive replacement of existing infrastructure.

FAQ

Q: Can SPBRC410 operate with legacy Infi 90 I/O modules?
A: Yes, it bridges legacy Infi 90 hardware with Symphony Plus, preserving existing I/O while upgrading control and communications.

Q: What redundancy options are available?
A: The module supports 1-to-1 hot standby, automatically switching to the backup controller in case of failure.

Q: What industrial conditions can it tolerate?
A: Rated for -40°C to 70°C, with 5–95% non-condensing humidity and robust self-diagnostics.
