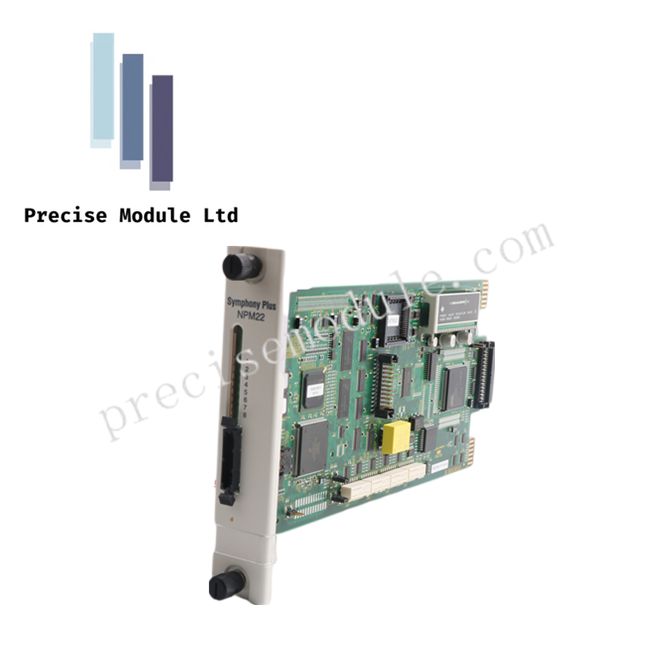

ABB SPNPM22 Network Processing Module | Bailey INFI 90 Control

ABB SPNPM22 Network Processing Module | Bailey INFI 90 Control

  • Manufacturer: ABB

  • Product No.: SPNPM22

  • Condition：in Stock

  • Product Type: Network Process Module

  • Product Origin: Switzerland

  • Payment:T/T, Western Union

  • Weight: 800g

  • Shipping port: Shanghai/Yiwu/Shenzhen

  • Warranty: 12 months

Product Description

Overview

The ABB SPNPM22 is a high-capacity Network Processing Module (NPM) engineered for the Symphony Plus and Harmony (INFI 90) distributed control systems. It functions as the primary communication hub for plant-wide data, efficiently linking controllers, I/O modules, and other networked devices while enabling advanced control and monitoring capabilities.

Technical Specifications

Feature Specification
Model / Order Number SPNPM22
Module Type Network Processing Module (Master)
Control System Compatibility Symphony Plus, Harmony (INFI 90), Bailey INFI-NET
Microprocessor High-speed 32-bit RISC CPU
Memory Expanded Flash and RAM for large database management
Network Speed Cnet: 2 Mbaud / 10 Mbaud
Throughput Up to 5,000 exception reports per second
Node Capacity Supports up to 250 local I/O modules/slaves
Power Consumption Approx. 5.5 W
Operating Temperature 0°C to +70°C
Indicators 16-segment LED display for status and diagnostics
Dimensions (LxWxH) 16 × 16 × 12 cm
Weight 0.8 kg
Country of Origin United States
HS Code 85389091

Functional Highlights

  • Central Communication Hub: Directs data flow between local controllers and the plant-wide Cnet, enabling seamless network integration.

  • Advanced Message Processing: Optimizes traffic by prioritizing exception reporting, sending only updated data to reduce network congestion.

  • Database Management: Maintains a local copy of the node database for rapid point data access without overloading the main controller.

  • Redundancy Ready: Supports hot-standby operation with a secondary SPNPM22 for full fault-tolerant performance.

  • Diagnostic Monitoring: Built-in LED display provides immediate status feedback and error reporting for efficient troubleshooting.

  • Time Synchronization: Ensures millisecond-accurate timestamps for all control events and sequence-of-events recording.

Installation & Configuration

The SPNPM22 is configured via S+ Engineering or Composer. For redundant setups, firmware versions must match across modules. Typically installed in the first slots of a network node to manage interface between the control station and the plant network.

Applications

  • Plant-wide Ethernet network integration for Bailey INFI-NET systems

  • Distributed control optimization across multiple nodes

  • Real-time data collection and exception reporting

  • Integration with legacy and modern DCS networks

  • Industrial facilities requiring high-speed communication and network reliability

FAQ

Q: What is the SPNPM22 used for?
A: It serves as the master network processing module, managing communication and data flow in Symphony Plus and Harmony control systems.

Q: Can SPNPM22 work with redundant pairs?
A: Yes, it supports hot-standby redundancy for uninterrupted network operation.

Q: What network speeds does it support?
A: Cnet speeds of 2 Mbaud and 10 Mbaud, with high throughput for large-scale systems.
