ABB TC512 3BSE006383R1 | RS485 Twisted Pair Communication Module

Product Description

Overview

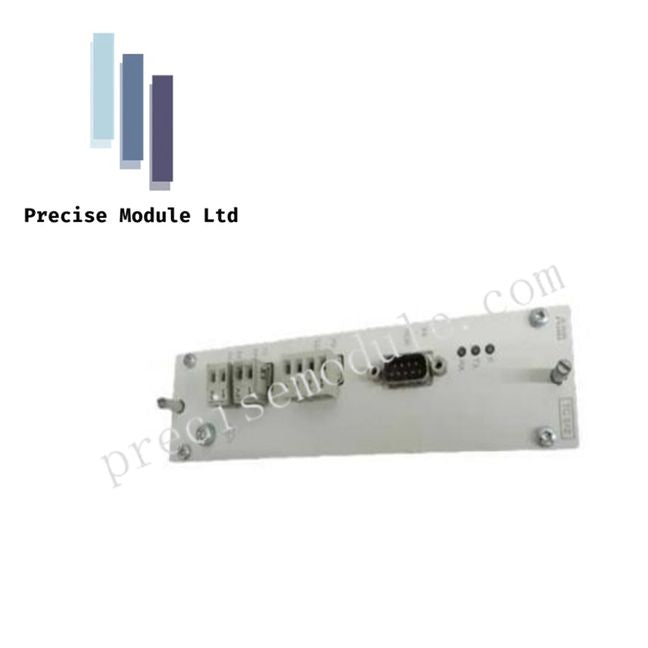

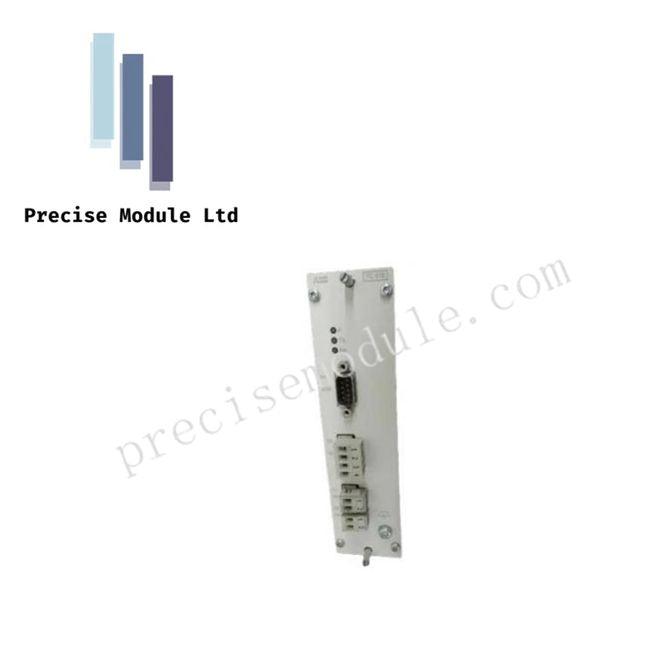

The ABB TC512 (3BSE006383R1) is a high-reliability RS-485 twisted-pair modem designed for the Advant Controller 400 (AC 400) and Advant Controller 110 series. It functions as a physical layer interface, enabling controllers and I/O units to communicate over Advant Fieldbus 100 (AF100) or other RS-485 networks.

This module offers a cost-effective alternative to coaxial or fiber-optic connections, delivering robust industrial data transmission while resisting electromagnetic interference (EMI) in electrically noisy environments.

Key Features

Reliable Industrial Communication

• Supports RS-485 differential signaling for high immunity to noise and long-distance data transmission.

• Compatible with AF100 network protocols, facilitating seamless data exchange across distributed I/O and controllers.

System Integration

• Designed to plug into ABB baseplates such as the TC513 series for modular deployment.

• Ensures predictable and deterministic performance in distributed control applications.

Durable and Robust

• Rugged housing withstands vibration and thermal stress typical in industrial settings.

• Rated for continuous 24/7 operation with a high MTBF.

Maintenance-Friendly

• LED indicators provide real-time feedback on power and TX/RX activity.

• Built-in galvanic isolation protects the connected controller and modules from voltage surges.

Technical Specifications

Usage Tip: When deploying the TC512, use appropriate termination resistors at the twisted-pair segment ends. Redundant setups are recommended for critical network segments.

Applications

• Connecting Advant Controllers to AF100 or RS-485 networks.

• Distributed control system networks requiring long-distance or EMI-resistant connections.

• Modular expansions of AC 400 or AC 110 controllers.

FAQ

Q: Is the TC512 compatible with AF100 redundant networks?
A: Yes, it can be deployed as part of a redundant network for high reliability.

Q: Can this modem be used with TC513 baseplates?
A: Yes, it is designed for modular installation with compatible ABB baseplates.

Q: What environmental conditions can the TC512 handle?
A: It operates reliably under standard industrial conditions, including vibration and moderate thermal fluctuations.
