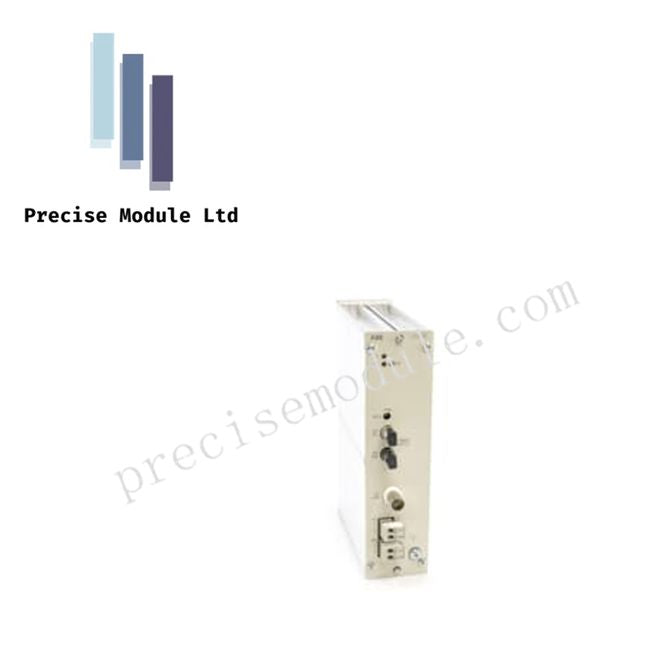

ABB TC630 3BSE002253R1 | Modbus Plus Communication Module

Product Description

Overview

The ABB TC630 (3BSE002253R1) is a specialized Modbus Plus (MB+) interface module designed to integrate Advant Controller 400 (AC 400) and MasterPiece 200 systems with Modicon-compatible networks. It functions as a dedicated communication processor, managing token-passing protocols independently to maintain deterministic and reliable network performance while relieving the main CPU from communication overhead.

Technical Features

Dedicated Communication Processor

• Equipped with an onboard microprocessor and firmware to ensure deterministic token-based communication.

• Independently handles network error checking, token rotation, and message routing.

Data Handling and Network Functions

• Supports Global Data Broadcast, sending critical information to all nodes in every token rotation.

• Enables point-to-point messaging for specific read/write operations with individual nodes.

Network Configuration

• Compatible with standard Modbus Plus trunk/drop topology.

• Configurable node addresses from 1 to 64 via software or DIP switches.

• Supports Modbus Plus cable lengths with repeaters for extended networks.

Diagnostics and Reliability

• Galvanically isolated communication port protects against electrical surges.

• Front-panel LEDs provide clear status feedback:

• Run: Module active and executing.

• Fault: Hardware or firmware errors detected.

• Comm/MB+ Status: Indicates node activity and network health.

Integration and Compatibility

• Compatible with ABB Advant Station and AMPL software, allowing easy mapping of Modbus registers to ABB database signals.

• Legacy support module, critical for plants connecting ABB controllers to Modicon PLCs and older SCADA systems.

Technical Specifications

Applications

• Facilitates communication between ABB Advant systems and Modicon PLC networks.

• Enables legacy system connectivity where Ethernet-based Modbus TCP is unavailable.

• Suitable for fiber-optic or coaxial network integration in industrial environments.

FAQ

Q: Can the TC630 manage Modbus Plus token passing independently?
A: Yes, the onboard processor handles all token rotation and error checking without involving the main CPU.

Q: What physical connections are supported?
A: Standard RS-485 via 9-pin D-sub for coaxial networks, and ST-style connectors for optical fibers.

Q: How many nodes can this module support?
A: Up to 64 nodes per Modbus Plus segment.
