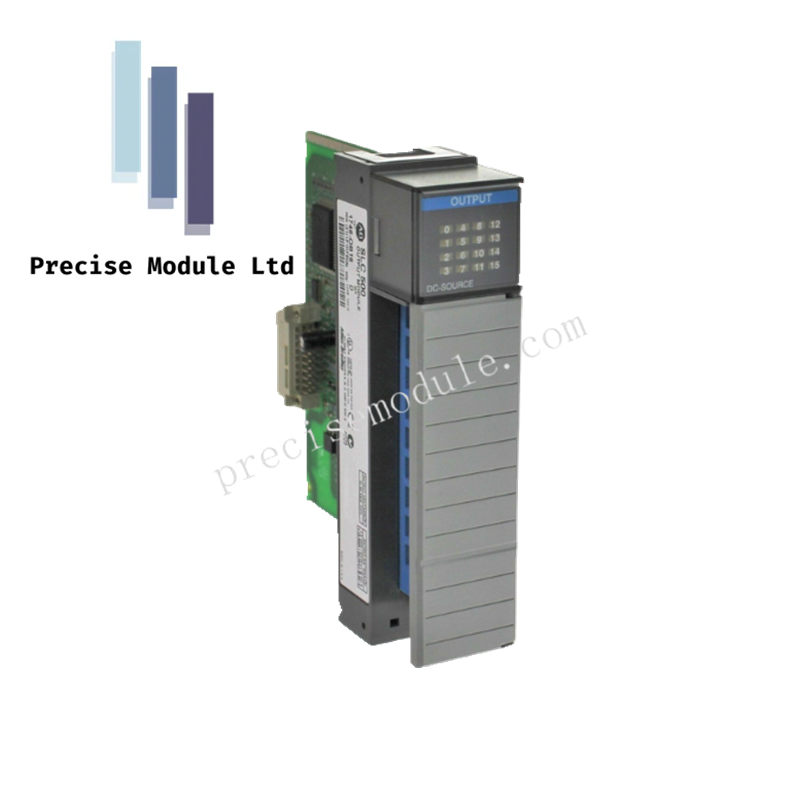

Allen-Bradley 1746-OB16 SLC500 Digital DC Output Module

Manufacturer: Allen-Bradley
Product No.: 1746-OB16/D
Condition：in Stock
Product Type: Digital DC Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 1000g
Shipping port: Shanghai/Yiwu/Shenzhen
Warranty: 12 months

Quantity

Product Overview

The Allen-Bradley 1746-OB16 is a digital DC output module in the SLC500 series, engineered for high-current industrial applications. With sixteen outputs and robust current handling, it provides reliable control for machinery, sensors, and automation devices. This module supports fast switching and precise output timing, making it ideal for demanding control environments.

Technical Specifications

Parameter	Specification
Manufacturer / Brand	Allen-Bradley / Rockwell Automation
Part Number / Catalog No.	1746-OB16
Series	SLC500
Module Type	Digital DC Output Module
Number of Outputs	16 outputs
Output Voltage	24 VDC
Operating Voltage Range	10–30 VDC
Output Delay Time, OFF→ON	1.0 ms
Output Delay Time, ON→OFF	0.1 ms
OFF State Leakage Current	1 mA
Backplane Current (5.1 V)	0.135 A
Continuous Current per Point	1.5 A @ 30°C; 1.0 A @ 55°C
Continuous Current per Module	6.4 A @ 0–60°C
Voltage Range	10–50 VDC source
Current per Output	0.25 or 0.5 A
Current per Module	4 or 8 A
Step Response	60 ms ON, 2.5 ms OFF
Heat Dissipation	7.6 W
UPC	10662468067055
UNSPSC	32151705

Key Features

16 digital DC outputs with high current capability per point.
Compatible with SLC500 series controllers for modular automation systems.
Fast switching times ensure precise and reliable control.
Robust design handles high-current loads in industrial environments.
Monitors and controls devices with minimal heat dissipation (7.6 W).
