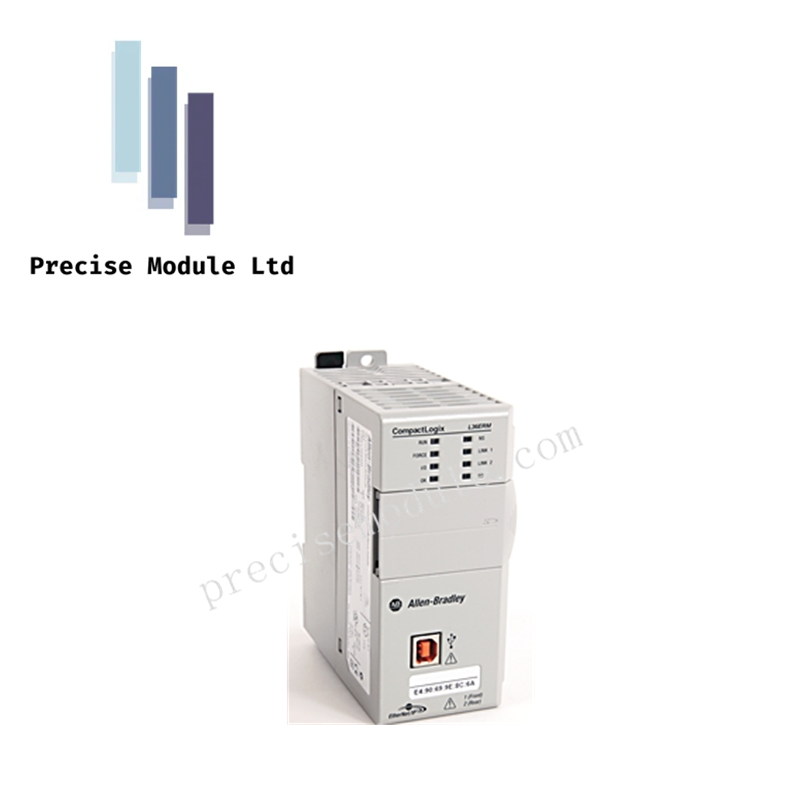

Allen Bradley 1769-L37ERM CompactLogix 5370 L3 Controller

Product Overview

The 1769-L37ERM (1769-L37ERM) is a high-tier programmable automation controller (PAC) within the Allen-Bradley CompactLogix 5370 L3 family. Engineered by Rockwell Automation, this controller is designed to bridge the gap between small-scale micro-controllers and large-chassis systems, offering 4 MB of user memory and high-performance processing for mid-range industrial applications. It stands out for its integrated motion capabilities, supporting up to 16 axes of coordinated CIP Motion over EtherNet/IP. The compact form factor allows for high-density control in space-limited cabinets while maintaining the power to manage up to 30 local I/O modules and 64 Ethernet nodes simultaneously.

Technical Specifications

• Controller Model 1769-L37ERM

• Control Platform CompactLogix 5370 L3

• Available User Memory 4 MB

• Motion Capability 16-axis Integrated Motion on EtherNet/IP (CIP Motion)

• Local I/O Capacity Supports up to 30 1769 Compact I/O modules

• I/O Point Limit 960 discrete I/O points

• Networking Dual EtherNet/IP ports with Device Level Ring (DLR) support

• Node Capacity Up to 64 EtherNet/IP nodes

• Programming Interface USB 1.1 port for local configuration

• Task Management Supports 32 controller tasks with 1000 programs per task

• Included Storage 1 GB Secure Digital (SD) card; expandable to 2 GB

• Power Requirement Compatible with 1769 series power supplies (30V continuous)

• Isolation Voltage 500V AC (Basic insulation)

• Physical Weight 0.91 kg

• Unit Dimensions 11.12 x 14.3 x 2.17 inches

Operational Performance & Scalability

The 1769-L37ERM (1769-L37ERM) provides a flexible foundation for modern smart manufacturing:

• Network Resiliency The dual Ethernet ports facilitate DLR topologies, ensuring the control network remains operational even if a single cable segment is compromised.

• Coordinated Motion Optimized for position loop CIP Motion, making it ideal for palletizers, multi-axis robotic arms, and synchronized assembly lines.

• Data Security The removable SD card provides a non-volatile backup for the user program and tag data, facilitating fast hardware replacement without a PC.

• Complex Logic With support for dozens of simultaneous tasks, it can manage independent machine functions and safety routines within a single CPU.
