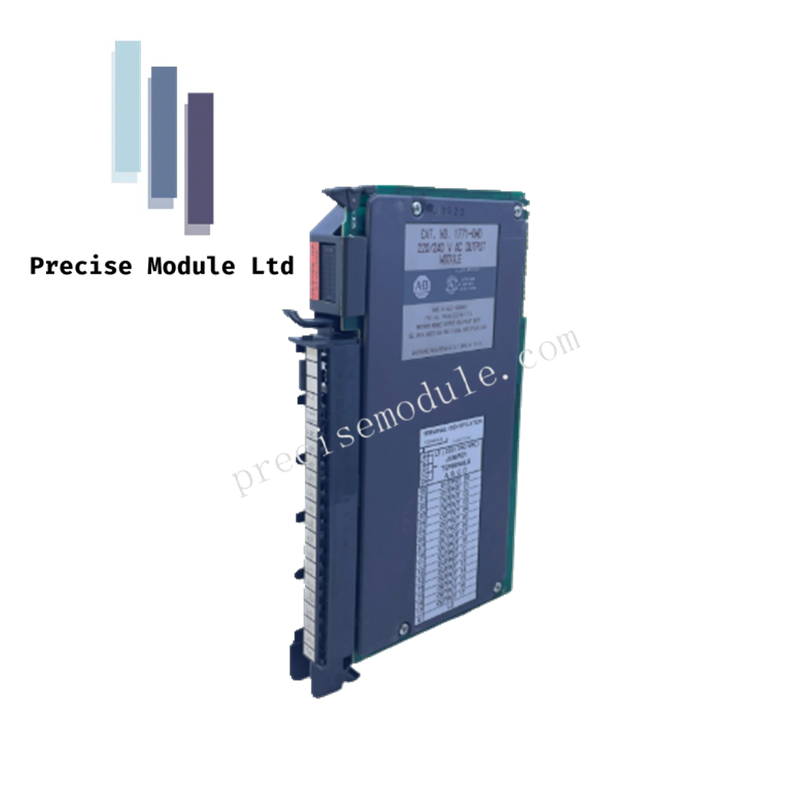

Allen-Bradley 1771-OMD 16-Output Digital AC Module

Manufacturer: Allen-Bradley
Product No.: 1771-OMD
Condition：in Stock
Product Type: 16-Output Digital AC Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 1000g
Shipping port: Shanghai/Yiwu/Shenzhen
Warranty: 12 months

Quantity

Product Overview

The Allen-Bradley 1771-OMD is a digital AC output module designed for PLC systems requiring multiple AC outputs. It provides 16 outputs at 220 V AC, with a maximum of 2 A per output and 8 A per module. The module features a conformal coat for protection in industrial environments and is rack mountable using the 1771-WH wiring arm. With precise signal response and robust construction, it ensures reliable operation in automated control applications.

Technical Specifications

Parameter	Specification
Manufacturer / Brand	Allen-Bradley / Rockwell Automation
Part Number / Catalog No.	1771-OMD
Module Type	Digital AC Output Module
Number of Outputs	16
Voltage Category	220 V AC
AC Operating Voltage	184–250 V AC
Backplane Current	700 mA
Max Continuous Current per Output	2 A
Max Current per Module	8 A
Wiring Arm	1771-WH
Model Status	Earlier Model
Coating	Conformal Coat
Typical AC Signal Delay (Off)	45 ms ± 15 ms
Typical DC Signal Delay (Off)	50 ms
Mounting	Rack Mountable
UPC	10662468205853

Key Features

Provides 16 AC outputs at 220 V for PLC control systems.
Maximum 2 A per output, 8 A per module, ensuring robust performance.
Conformal coated for protection in industrial environments.
Compatible with 1771-WH wiring arm for easy rack installation.
Typical signal delays: AC off 45 ms ±15 ms, DC off 50 ms.
Rack mountable design simplifies integration into existing PLC setups.
Reliable industrial-grade module suitable for repetitive operations.
