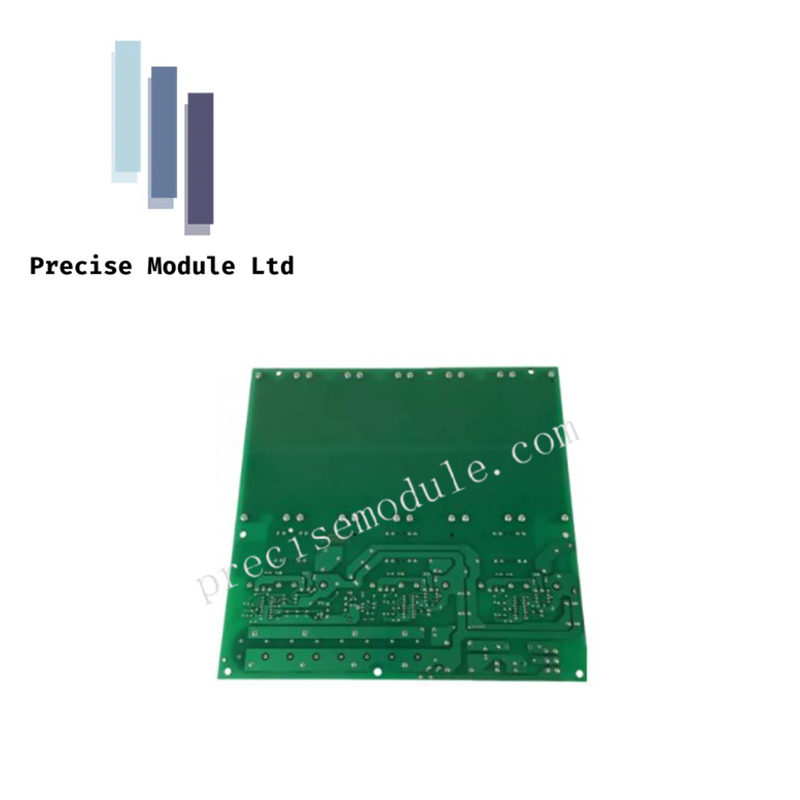

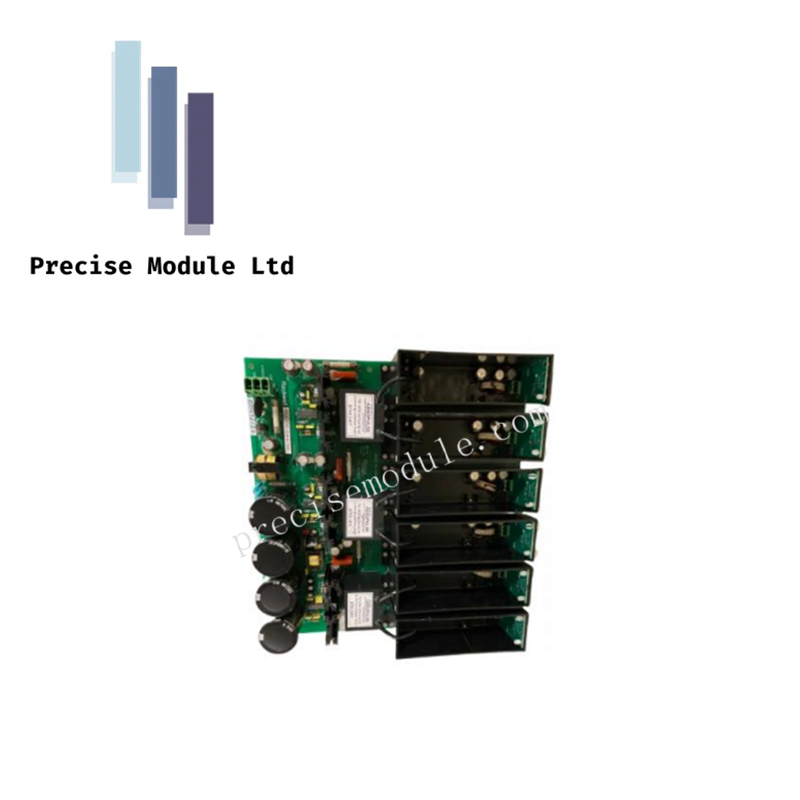

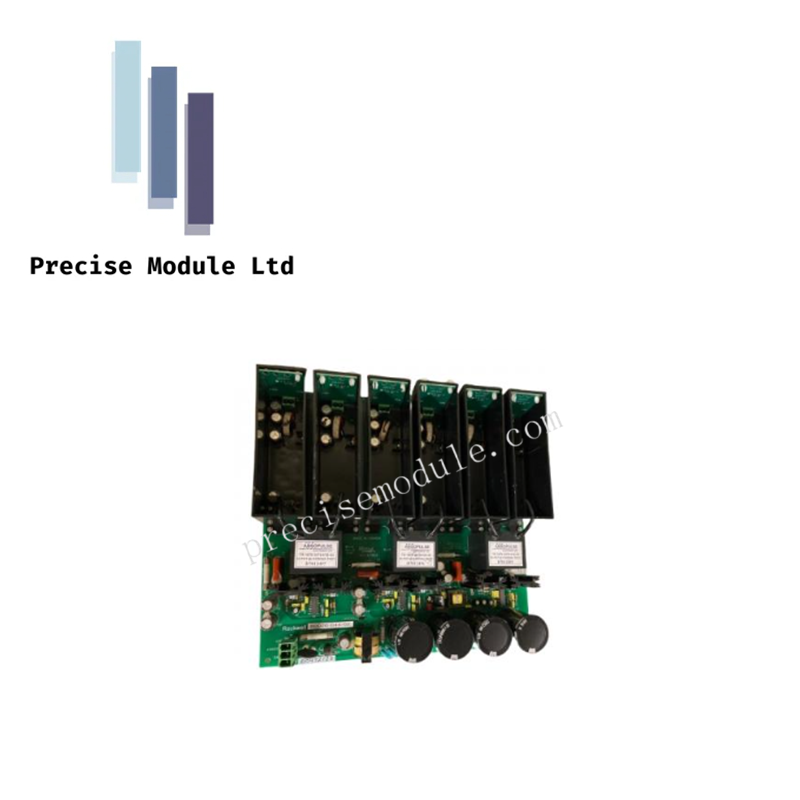

The 80026-044-02 switching power supply board from Allen-Bradley delivers stable DC output for industrial control systems. It ensures efficient power conversion and reliable performance in demanding environments.
Specifications
Model Number:80026-044-02
Manufacturer: Allen-Bradley
Product Type: Switching power supply board
Input Voltage: 100–240V AC universal input
Output Voltage: 24V DC regulated output
Output Power: Up to 100 watts
Efficiency Rating: Typically 90 percent
Operating Temperature: 0°C to +60°C
Dimensions: Approximately 20 cm × 12 cm × 4 cm
Weight: Around 0.45 kg
Mounting Method: Panel or chassis mount
Cooling Method: Natural convection
Certifications: UL, CE, RoHS compliant
Features
High Efficiency Design: Reduces energy loss and heat generation
Compact Footprint: Saves space in control cabinets and enclosures
Stable Output Voltage: Maintains consistent 24V DC under varying loads
Wide Input Range: Accepts global AC voltage standards
Overload Protection: Prevents damage during power surges
Thermal Shutdown: Automatically disables output during overheating
Low Ripple Noise: Ensures clean power for sensitive electronics
Easy Integration: Compatible with Allen-Bradley automation systems
Durable Construction: Built for long-term industrial use
Field Proven: Trusted in factory automation and process control applications
