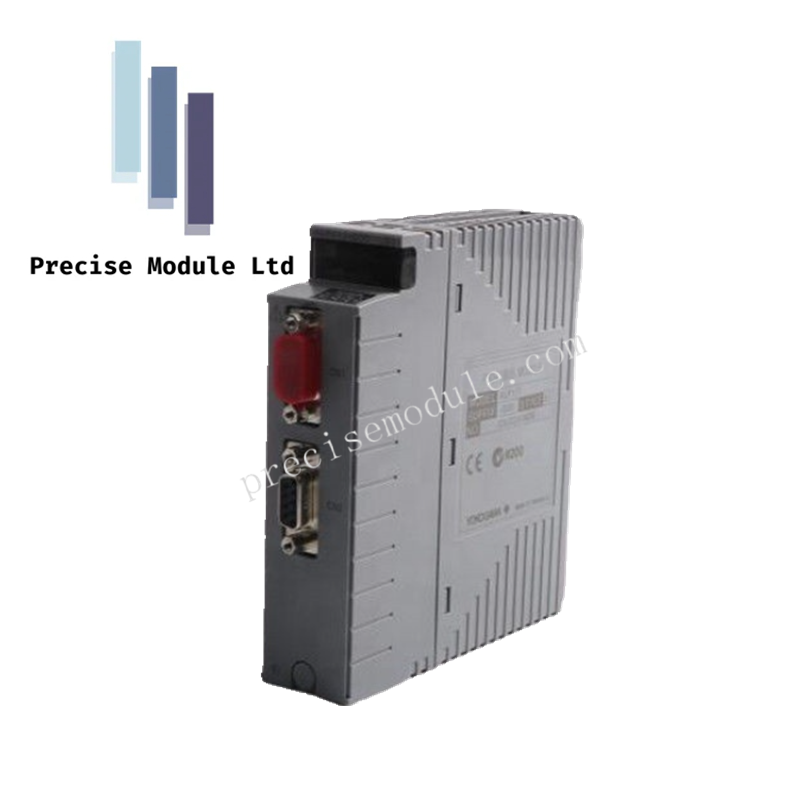

ALP111-S00 | Yokogawa | PROFIBUS-DP Communication Module

Overview

The Yokogawa ALP111-S00 is a high-performance PROFIBUS-DP communication module designed for industrial automation systems. It provides reliable and isolated communication over shielded networks, supporting a wide range of transmission speeds and distances.

Key Features and Benefits

The ALP111-S00 connects via an EIA-RS-485-compliant interface and features signal isolation for safe and stable operation. It includes a D-sub 9-pin female communication port and a D-sub 9-pin male maintenance port (RS-232C), facilitating both data communication and system maintenance. Compact and robust, it ensures efficient network integration.

Technical Specifications

• Manufacturer: Yokogawa

• Product Number / Model: ALP111-S00

• Product Type: PROFIBUS-DP Communication Module

• Connection Method: EIA-RS-485-compliant

• Signal Isolation: Isolated

• Transmission Speed: 9600 bps to 12 Mbps

• Transmission Route: Shielded

• Maximum Transmission Distance: 1.2 km per segment (at 9600 bps)

• Number of Communication Ports: 1

• Communication Port: D-sub 9-pin (female)

• Maintenance Port: D-sub 9-pin (male), RS-232C interface

• Maximum Current Consumption: 0.7 A

• Shipping Weight: 2 Kg

Applications

The Yokogawa ALP111-S00 is ideal for industrial control systems and process automation networks requiring reliable PROFIBUS-DP communication with isolated and shielded signal transmission.
