ALSTOM PIB903 (AR1351) Power Interface Board | VMEbus BGTR 8HE

Product Description

Overview

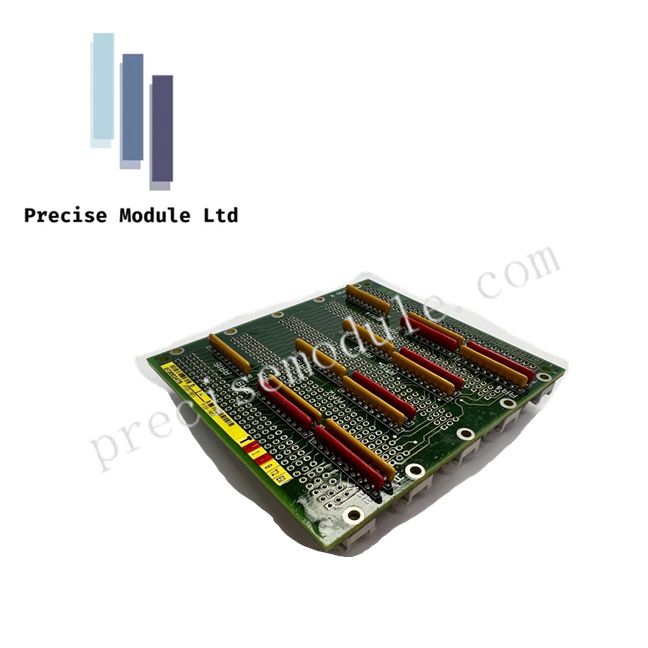

The PIB903 (AR1351) from ALSTOM is a robust Power Interface Board engineered for high-reliability industrial control systems. Specifically designed for VMEbus architecture and BGTR 8-slot racks, this module ensures stable power distribution, signal integrity, and isolation for demanding automation environments. It is ideal for turbine control, power plant operations, and other mission-critical applications requiring minimal downtime and predictable electrical performance.

Key Technical Features

• Power Input: 220 V AC ±10%, 50/60 Hz

• Board Voltage: 12 V DC

• Current Rating: 2 A

• Power Consumption: 24 W

• Operating Temperature: -20 °C to +70 °C

• Protection Class: IP20 (touch-safe)

• Weight: ~200 g

• Dimensions: 100 × 50 × 30 mm

• Supported Protocols: RS485, CAN bus, MODBUS (dependent on configuration)

Functional Highlights

• Signal Conditioning and Routing: Maintains stable communication between field devices and the VME-based controller.

• Galvanic Isolation: Protects internal circuitry from high-voltage surges originating from external devices.

• Electromagnetic Immunity: Reduces interference and ensures reliable logic operation.

• Diagnostic Support: Compatible with system software to monitor power health and module status for predictive maintenance.

Applications

• Thermal and Hydroelectric Power Plants: Reliable I/O handling for critical loops and turbine controls.

• Railway Signaling Systems: Ensures consistent electrical performance under variable field conditions.

• Heavy Industry Control Cabinets: Long-term stability in harsh operational environments.

Reliability & Service

Constructed with industrial-grade components, the PIB903 (AR1351) supports extended service cycles exceeding 20 years. Its design allows maintenance teams to quickly diagnose and isolate faults while aligning with established VME rack spare-part workflows.

Comparison With Similar Modules

• Unlike basic power boards, PIB903 integrates signal isolation and multi-protocol support in one module.

• Offers higher temperature tolerance than standard VME interface boards (-20 °C to +70 °C).

• Supports predictive maintenance integration, a feature absent in many legacy models.

FAQ

Q: Can the PIB903 be used in new VME installations?
A: Yes, it is fully compatible with modern VMEbus 8-slot BGTR racks and simplifies integration without major redesign.

Q: How do I ensure compatibility with turbine systems?
A: Verify the revision number (AR1351), as pin configurations may differ across turbine types.
