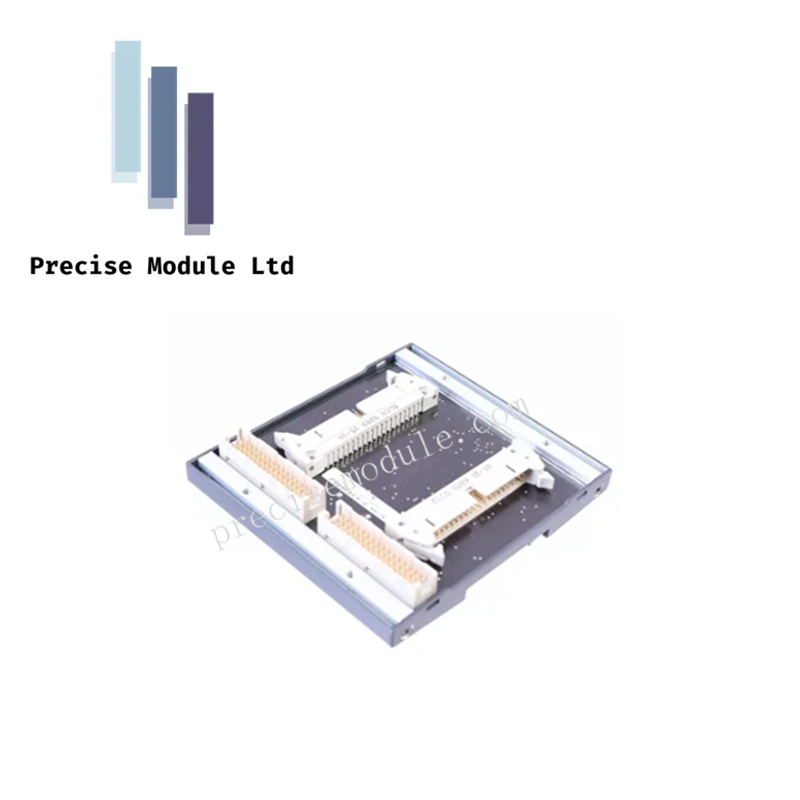

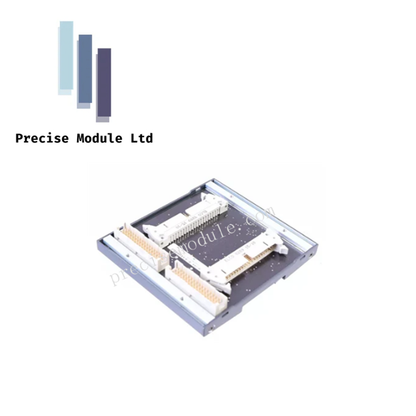

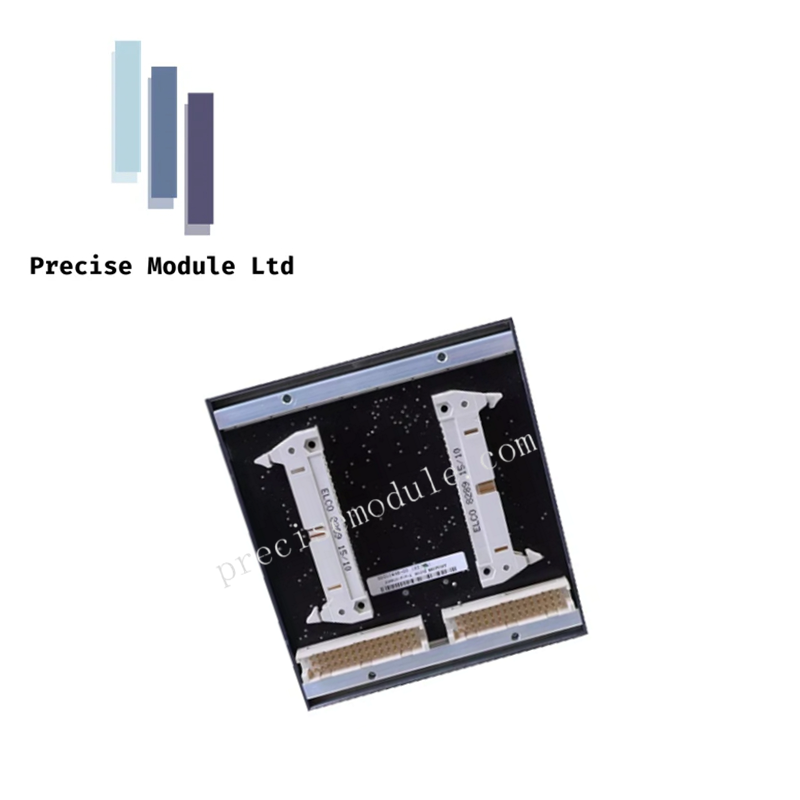

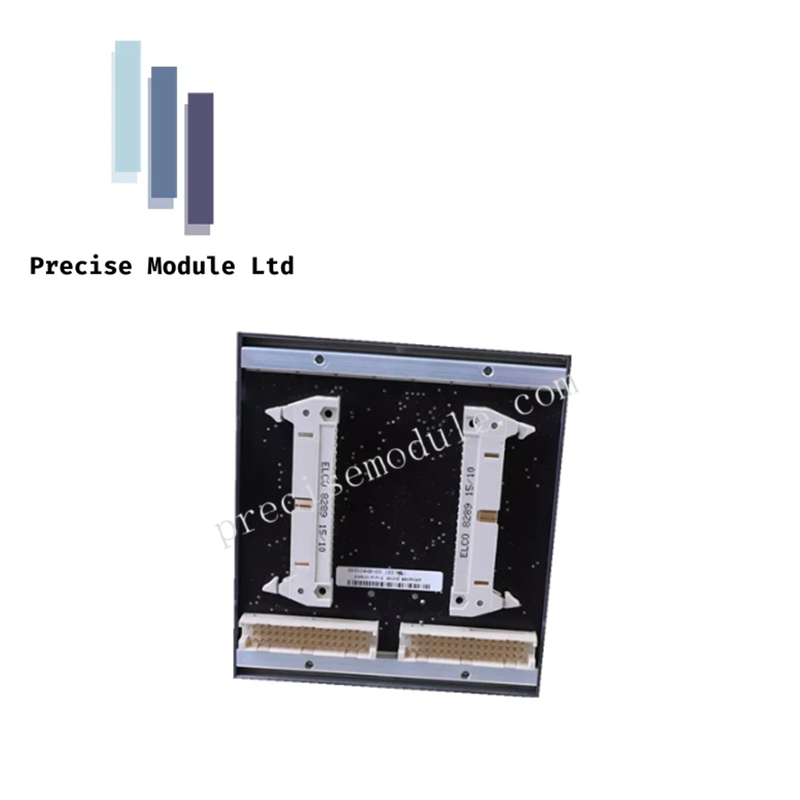

The BS202 backplane module from Bachmann is a compact and scalable platform designed to interconnect multiple automation components. It ensures stable signal routing and efficient power distribution across control modules.
Specifications
Manufacturer: Bachmann
Model: BS202
Type: Backplane Module
Width: 55 mm × number of module slots
Height: 119 mm
Depth: 23 mm (including connector)
Operating Temperature: -30°C to +60°C (vertical mounting up to +55°C)
Storage Temperature: -40°C to +85°C
Relative Humidity (Operation): 5% to 95%, non-condensing
Relative Humidity (Storage): 5% to 95%, non-condensing
Features
Modular Design: Supports flexible configuration with scalable slot count
Compact Dimensions: Slim profile fits easily into control cabinets
Reliable Connectivity: Ensures stable communication between hardware modules
Environmental Resilience: Operates across wide temperature and humidity ranges
System Compatibility: Designed for seamless integration with Bachmann M1 series
Efficient Layout: Optimized for space-saving and clean wiring architecture
