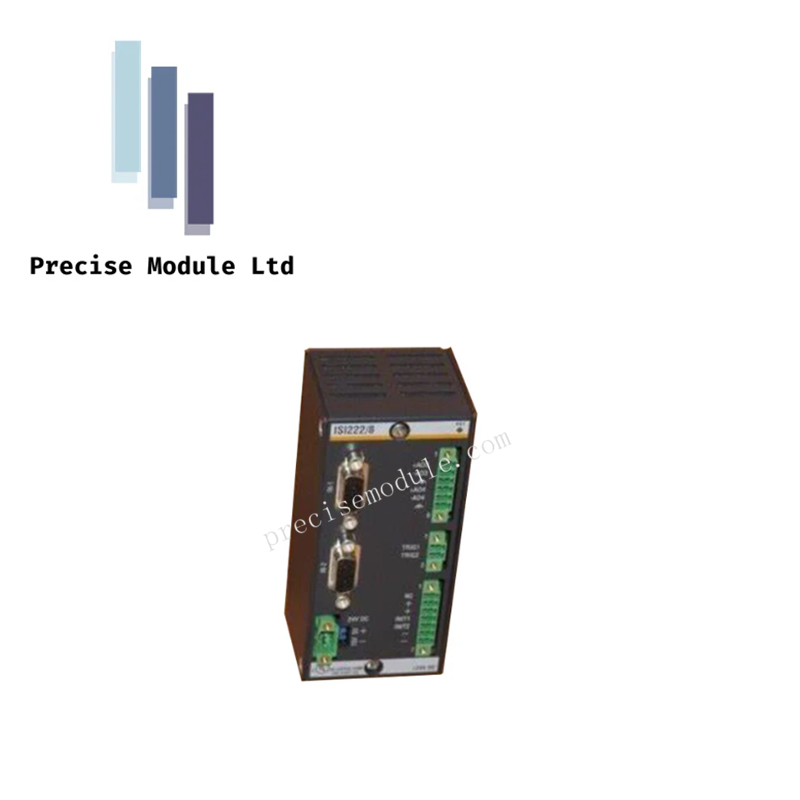

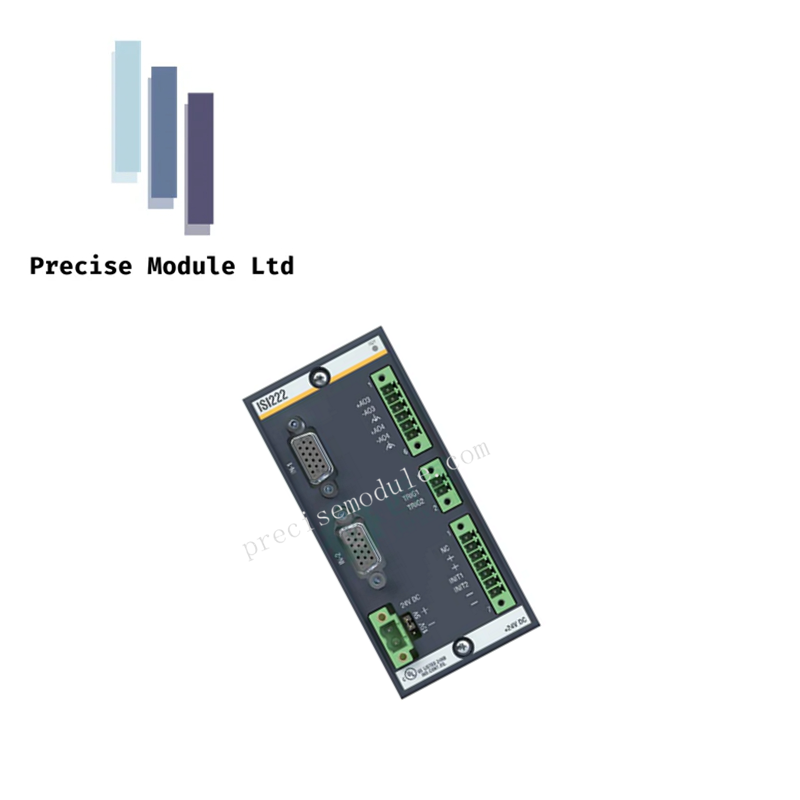

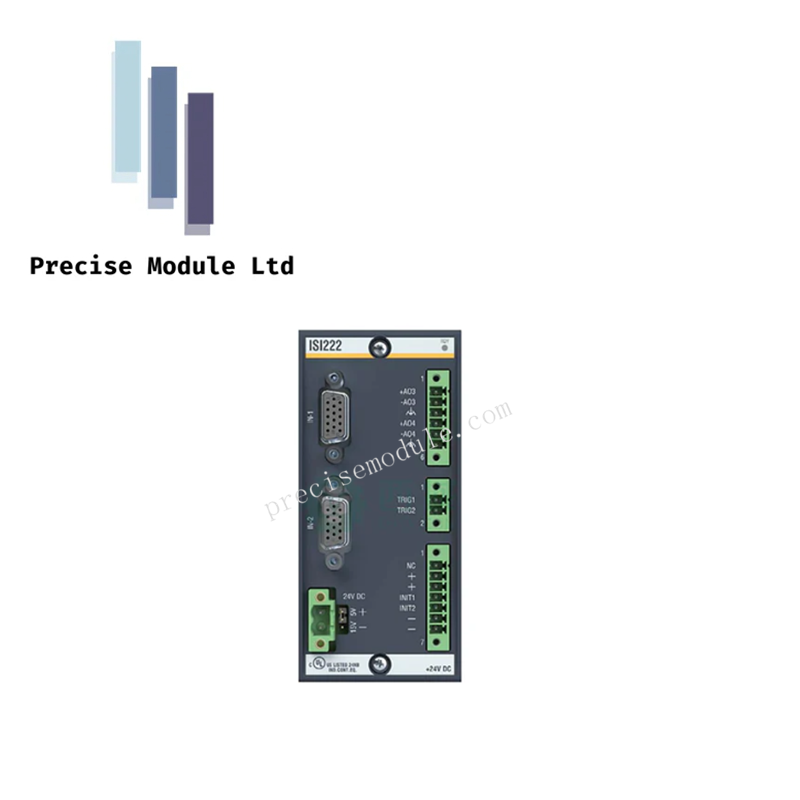

Bachmann ISI222/8 Positioning Module

Description

The ISI222/8 from Bachmann is a compact and powerful positioning module designed for advanced motion control applications. It supports dual-axis control, high-speed encoder inputs, and synchronized system integration.

Specifications

• Manufacturer: Bachmann electronic GmbH

• Model: ISI222/8

• Type: Positioning Module

• Number of Axes: 2 independent motion axes

• Encoder Interfaces: 2× INC/SSI, RS422 level

• Encoder Frequency: Up to 8 MHz

• Encoder Resolution: 32-bit counter

• Encoder Supply Voltage: +5 V / +15 V / +24 V selectable

• Analog Outputs: 2× ±10 V, 14-bit resolution, 0.025% accuracy

• Digital Inputs: 4 fast inputs (2 INIT, 2 TRIG)

• Digital Outputs: 8 channels

• Communication Interface: RS422

• Synchronization: I/O-Bus-Sync with full system integration

• Dimensions: 13 cm × 5.9 cm × 6.8 cm

• Weight: 0.25 kg

Features

• Dual-Axis Control: Enables precise positioning for two independent motion axes

• High-Speed Encoder Input: Supports up to 8 MHz for dynamic motion feedback

• Flexible Encoder Supply: Selectable voltage options for various encoder types

• Accurate Analog Output: ±10 V outputs with high resolution for actuator control

• Fast Digital Triggering: INIT and TRIG inputs ensure responsive signal handling

• System Synchronization: Integrates seamlessly with other M200 modules via I/O-Bus-Sync

• Compact Design: Saves space while delivering powerful motion control capabilities

• Industrial Reliability: Built for demanding automation environments with robust performance
