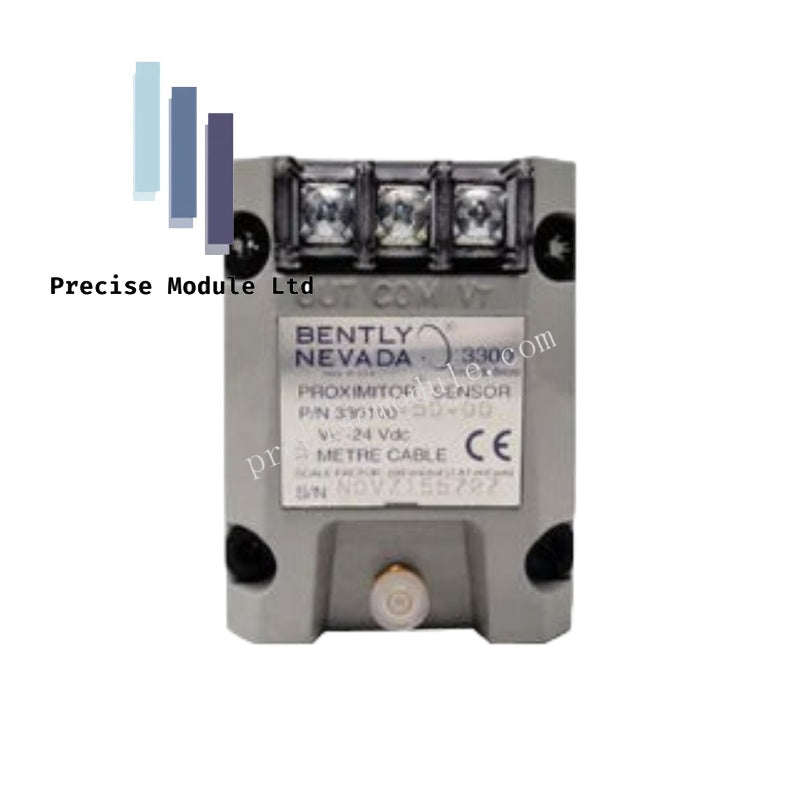

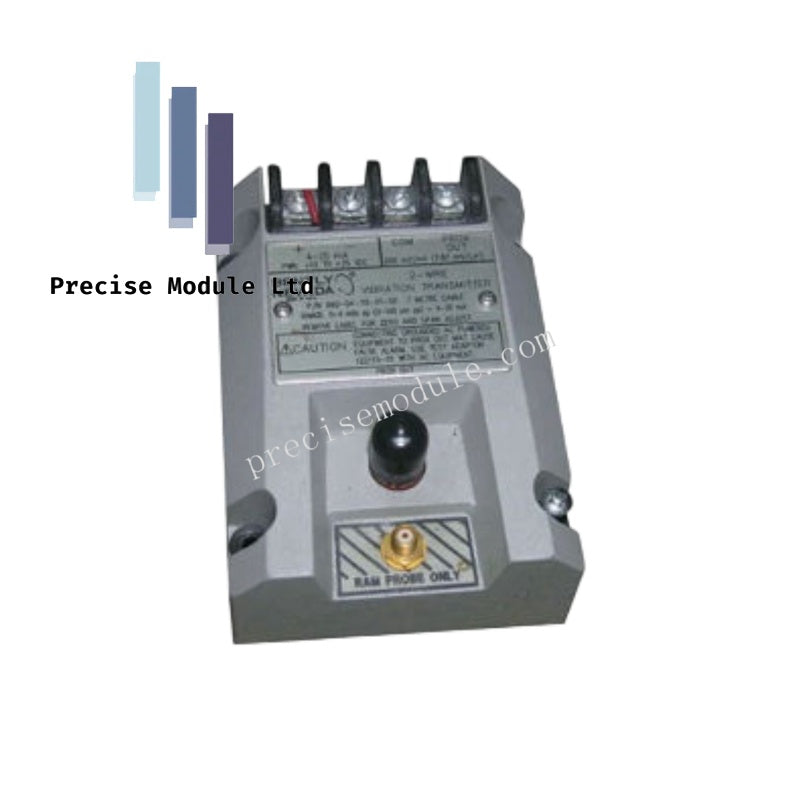

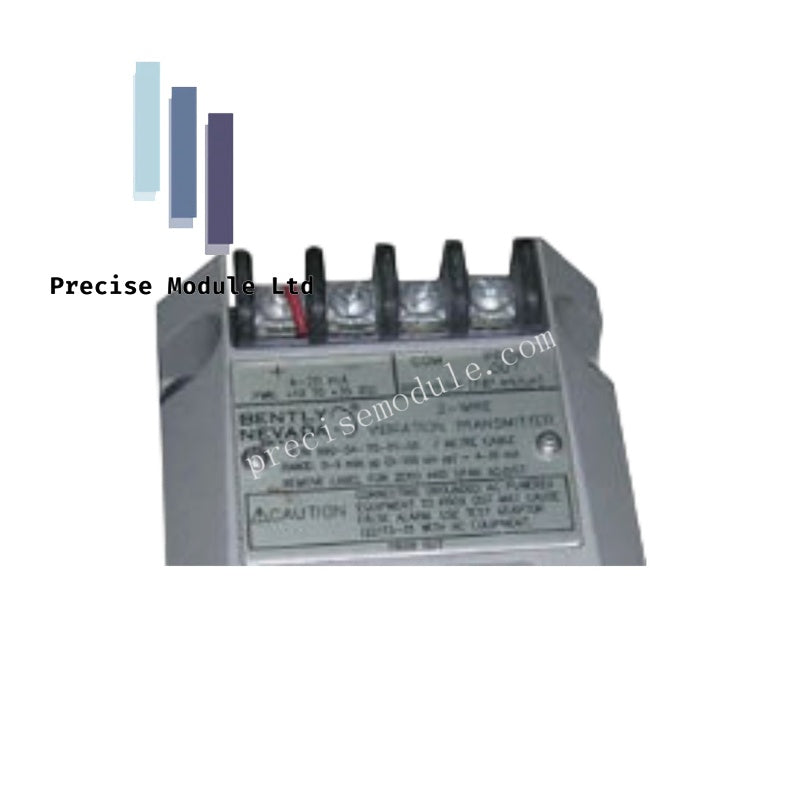

Bently Nevada 102046-50 3300 Proximitor Sensor

The Bently Nevada 102046-50, also cataloged as the 102046-50 3300 Proximitor Sensor, serves as the primary 3300 Proximitor Sensor utilized to execute non-contacting displacement and vibration measurements across machinery protection system platforms. The hardware module conditions dynamic radio-frequency signals generated by an eddy-current proximity probe, converting raw gap change data into precise, continuous voltage outputs. Operating under an input voltage range of -23 VDC to -26 VDC, the device provides critical rotor dynamics data directly to monitoring and diagnostic frameworks.

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

Operational measurement fidelity relies on strict eddy-current probe scaling to guarantee an accurate linear output over the defined sensor range. The 102046-50 driver demands precise calibration matching with an 8 mm probe tip diameter and a total 5-meter cable configuration. Field engineering procedures require routine gap voltage validation, targeting standard operational levels around -10 VDC to confirm the target material remains within the linear detection zone. Correct calibration isolates legitimate rotor dynamics from background electrical noise, preventing phase cross-talk and minimizing signal drift across high-speed rotating machinery setups.

Frequently Asked Questions

Q: What are the consequences of extending or shortening the matching 5-meter cable length?

A: Altering the 5-meter cable length modifies the total electrical impedance of the resonant circuit. This alteration disrupts the factory-calibrated eddy-current probe scaling, inducing measurement errors and compromising the accuracy of the voltage output.

Q: What is the mandatory power supply polarity required for this hardware module?

A: The device requires a negative direct current power source, operating at a nominal -24 VDC within a strict input voltage range of -23 VDC to -26 VDC. Applying positive voltage or exceeding these limits will prevent execution and can cause internal circuit damage.

Field Installation Guidelines

Mechanical installation requires secure mounting within a protective environmental housing or control panel, isolating the sensor assembly from severe ambient vibration. Electrical connections must be executed using shielded, high-quality coaxial cables and multi-conductor instrumentation wire. The overall cable shield must be grounded at a single, dedicated reference point inside the terminal rack to block electromagnetic interference, while the sensor housing itself must remain electrically isolated from local machinery structures. Ensure that all probe-to-extension cable connections are mechanically torqued to specification and protected with clean, moisture-resistant insulation sleeves to eliminate signal loss in high-humidity zones.
