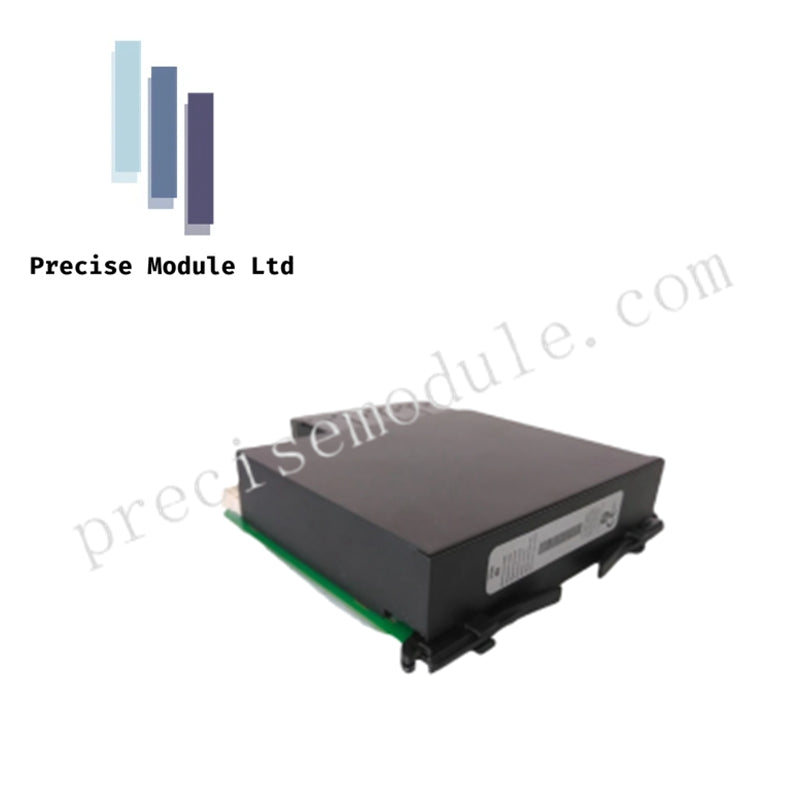

Bently Nevada 105M6001-01 Positive Input (PoV) Module | 3701 ADAPT System | 6 Dynamic Channels | Keyphasor Support

Product Description:

The Bently Nevada 105M6001-01 is a Positive Input (PoV) I/O Module designed for integration with the Bently Nevada 3701/40 ADAPT Machinery Dynamics Monitoring System. This high-performance module is engineered to interface with positively powered sensors, commonly used in industrial and aero-derivative applications that require a +24V power supply. These sensors include certain Proximitor Sensors, IEPE Accelerometers, and specialized interface modules.

The 105M6001-01 serves as a critical signal conditioning bridge, ensuring accurate signal conversion and transmission between field transducers and the 3701 ADAPT system. It features a 7-channel layout, including 6 dynamic input channels for vibration and position measurements, and an additional dedicated channel for Keyphasor or speed measurement. This versatility makes it ideal for systems where high sensitivity and precision are required.

Technical Specifications:

Key Features & Functions:

1. Versatile Sensor Compatibility:

• +24V Proximitor Sensors for radial vibration and thrust position measurements.

• IEPE Accelerometers and velocity sensors with a 2-wire constant current interface.

• Positive Interface Modules for complex signal conditioning of specialized transducers.

• Magnetic Pickups for speed measurements, supported on Channel 7.

• The 105M6001-01 module supports a range of positively powered sensors, including:

2. Advanced Signal Conditioning:

• The 105M6001-01 offers synchronized sampling across all channels, ensuring that the phase relationships between various vibration points are maintained. This feature is essential for complex diagnostics such as orbit plots, modal analysis, and other advanced vibration analysis techniques.

3. Rugged Industrial Construction:

• Vibration Resistance: 5g at 57-500 Hz (per IEC 60068-2-6).

• Shock Resistance: 15g, 11 ms (per IEC 60068-2-27).

• Certifications: Typically holds CE, CSA, and ATEX/IECEx ratings for use in hazardous areas when installed in a compliant enclosure.

• Designed for installation in demanding industrial environments, this module is engineered to withstand significant vibration and shock. Its robust construction meets the following standards:

4. Self-Diagnostics:

• The module continuously monitors the health of the connected sensors and can detect faults like open circuits or shorted wiring. This built-in self-diagnostic capability ensures the protection system operates reliably and prevents false alarms due to faulty wiring or sensor issues.

Application Context:

The Bently Nevada 105M6001-01 module is specifically designed for the 3701/40 ADAPT Machinery Dynamics Monitoring System, which is frequently used on smaller machinery trains such as small steam turbines, fans, or pumps. These applications may not require a full 3500 rack, making the ADAPT system an ideal choice due to its compact and scalable nature. The 105M6001-01 module facilitates the integration of modern, high-sensitivity sensors with the 3701 ADAPT system, ensuring precise monitoring and protection of critical machinery.
