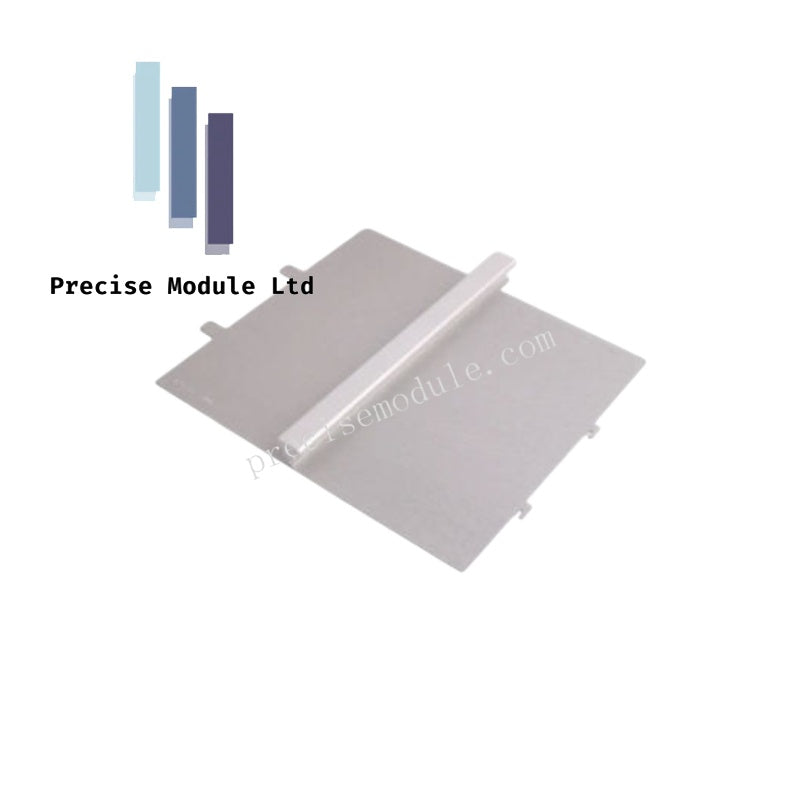

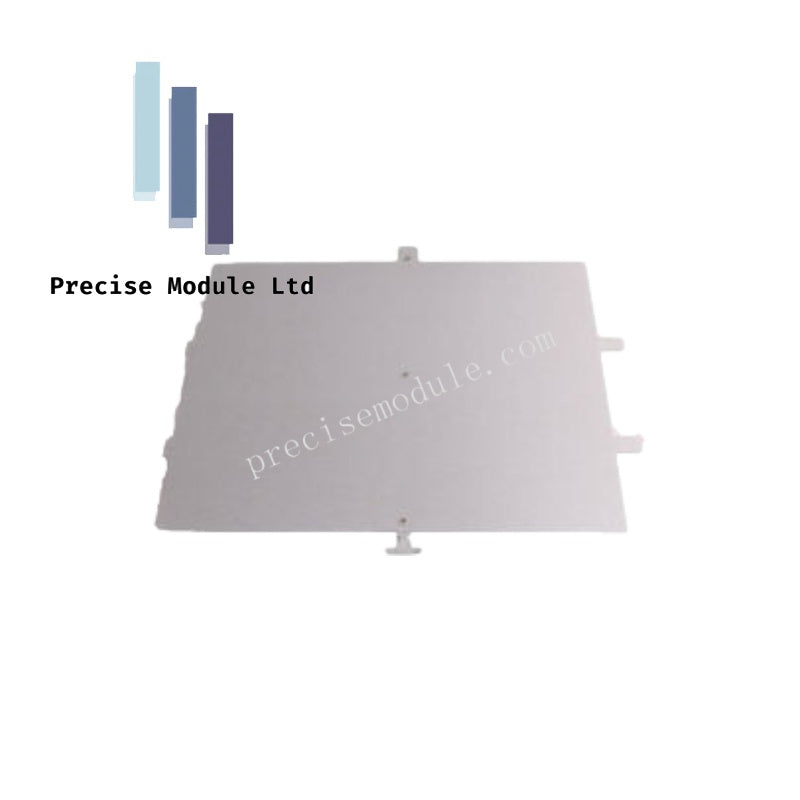

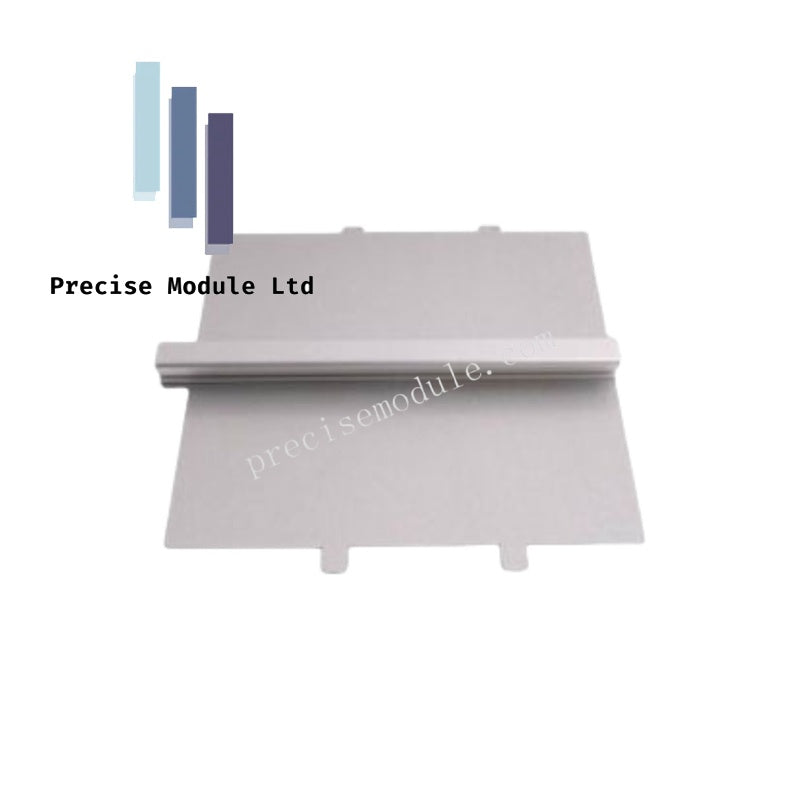

Bently Nevada 125388-01 Half-height Module Internal Chassis

Bently Nevada 125388-01 Half-height Module Internal Chassis

Configured for module installation within the Bently Nevada 3500 Machinery Protection System, the Bently Nevada 125388-01 (125388-01 Half-height Module Internal Chassis) provides the mechanical mounting structure for compatible half-height modules installed in a 3500 system rack.

Suffix Breakdown & Model Matrix

The available documentation identifies the model as 125388-01 but does not provide an official suffix definition. Therefore, no suffix interpretation is included.

Hardware Specifications

Rack Integration and Module Installation

The 125388-01 internal chassis is designed for installation within the Bently Nevada 3500 rack architecture. The rack provides the mechanical framework for monitor modules, power supplies, and interface modules while maintaining alignment with the system backplane.

Within the 3500 rack, the power supplies and Rack Interface Module occupy the left-most positions. The remaining module slots are available for compatible monitoring and communication modules according to the rack configuration.

Proper mechanical installation ensures correct engagement between the module connectors and the rack backplane while maintaining the required spacing between adjacent modules.

Frequently Asked Questions

Q: Is the 125388-01 an electronic monitoring module?
A: No. It is an internal mechanical chassis used to support compatible half-height modules within the 3500 rack.

Q: Can this chassis be installed in different 3500 rack mounting formats?
A: Yes. It is intended for use within compatible 3500 rack assemblies, including panel-mounted and rack-mounted configurations, depending on the overall rack design.

Q: Does the chassis require electrical configuration?
A: No. The chassis serves as a mechanical mounting component and does not require software configuration or electrical parameter settings.

Field Installation Guidelines

• Verify compatibility with the installed 3500 rack before assembly.
• Ensure the chassis is fully seated and mechanically secured before installing associated modules.
• Avoid excessive force during installation to prevent damage to backplane connectors.
• Maintain the specified module orientation when inserting half-height assemblies into the rack.
• Inspect mounting hardware for proper alignment before energizing the system.
• Follow the recommended slot assignment defined for the installed 3500 system configuration.
