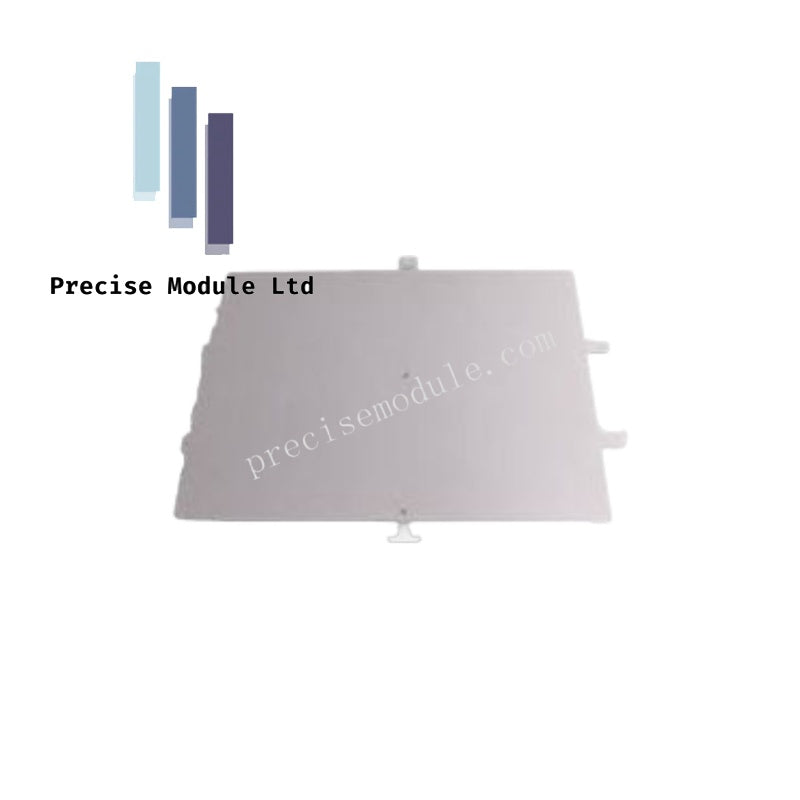

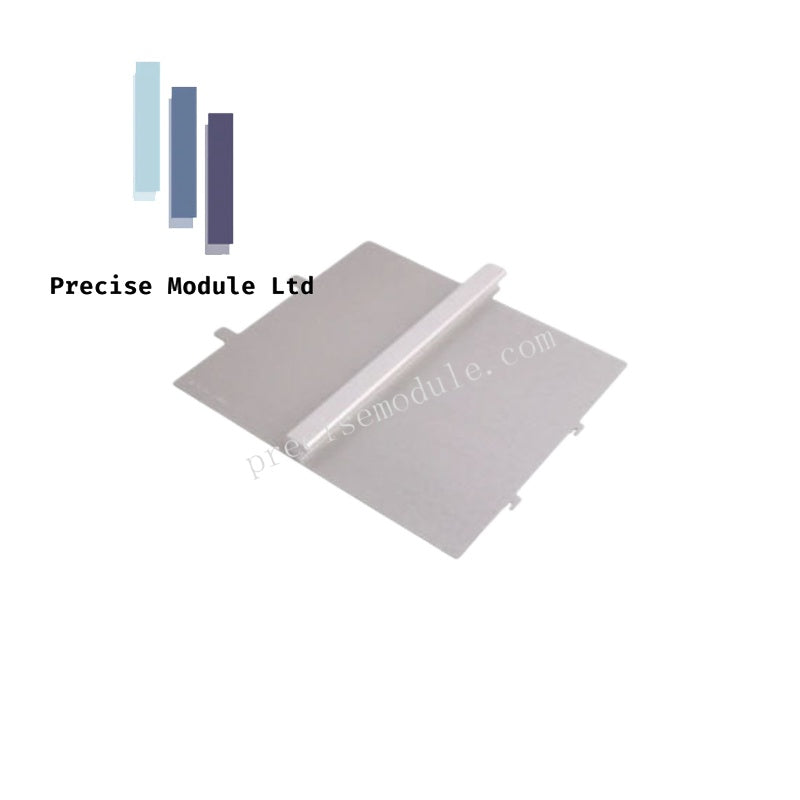

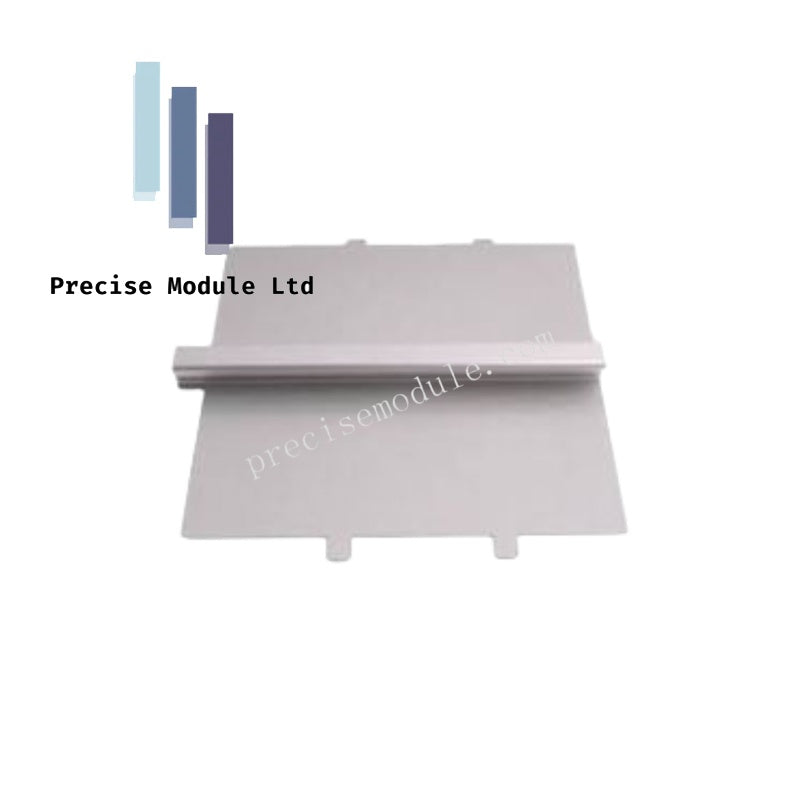

Bently Nevada 125388-01 Half-height Module Internal Chassis

Bently Nevada 125388-01 Half-height Module Internal Chassis

The Bently Nevada 125388-01, also cataloged as the Half-height Module Internal Chassis, operates as a dedicated hardware component for mechanical housing and rack integration within 3500 Machinery Protection Systems.

Hardware Specifications

Mechanical Monitoring & TSI Integration

The 125388-01 chassis provides the structural foundation for 3500/25 Enhanced Keyphasor Module deployments. It ensures rigid mechanical alignment for half-height modules, supporting the signal integrity required for rotor dynamics monitoring. By maintaining precise module positioning, the chassis facilitates stable backplane connectivity, which is necessary for high-speed digital Keyphasor pulse processing. The design allows for optimized thermal dissipation and structural support, essential when configuring multi-channel systems for phase reference and speed measurement tasks.

Frequently Asked Questions

Q: Can this chassis be used to mount full-height monitor modules?

A: No. This component is specifically dimensioned as a half-height module internal chassis. It is not compatible with standard full-height monitor modules.

Q: What is the primary function of this chassis in the 3500 rack?

A: Mechanical Support and Alignment. It provides the necessary physical guides and mounting structure to ensure half-height modules, such as the Keyphasor module, are correctly seated and keyed into the 3500 rack backplane.

Field Installation Guidelines

• Chassis Seating: Ensure the chassis is installed in an appropriate slot within the 3500 rack. Verify that the mounting alignment pins are correctly engaged with the rack rails.
• Module Insertion: Slide the associated half-height module into the chassis guides. Ensure the module connector aligns smoothly with the backplane interface before applying final pressure to lock the module in place.
• Environmental Stability: Maintain a clean internal environment within the rack cabinet. Ensure all chassis mounting screws are tightened to prevent vibration-induced fretting at the electrical contact points.
• Grounding: Although primarily a structural component, ensure the chassis retains continuity with the 3500 rack frame to assist in maintaining electromagnetic compatibility for installed modules.
