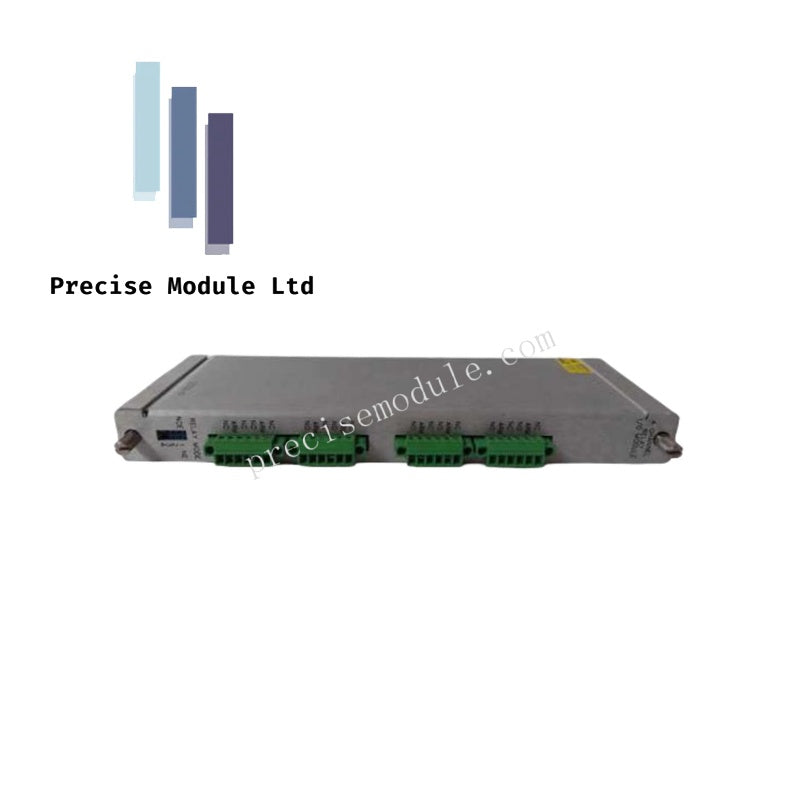

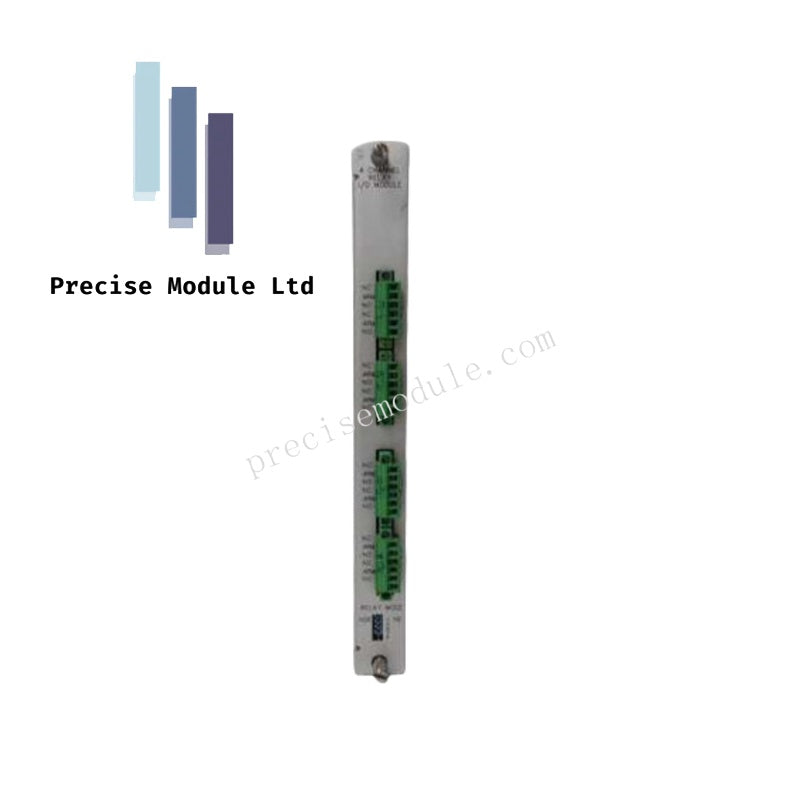

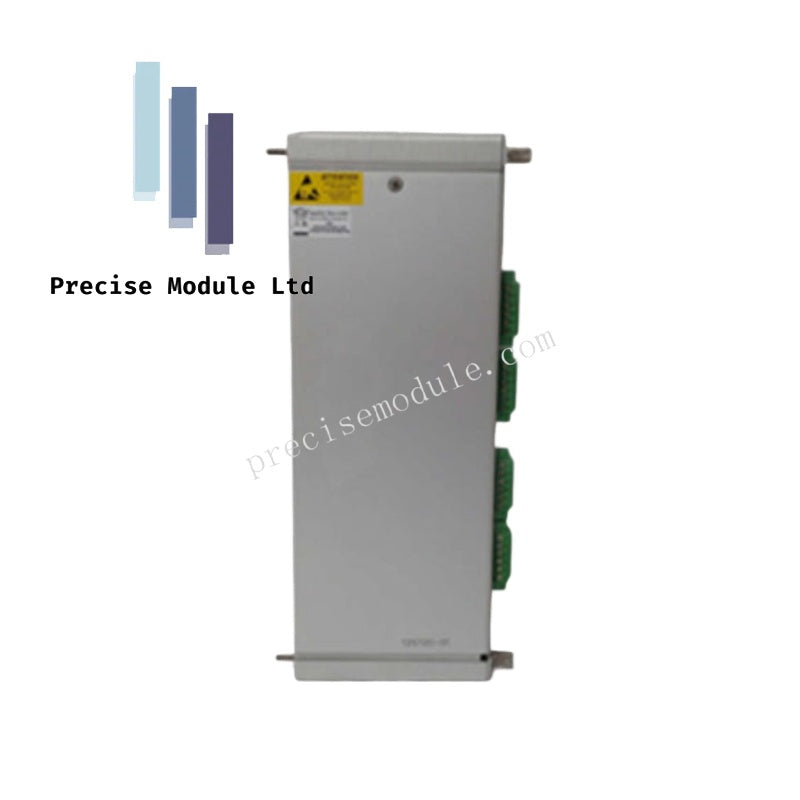

Configured for programmatic trip output routing in 3500 machinery protection systems, the Bently Nevada 125720-01 (125720-01 Relay I/O Module) provides direct physical/electrical execution. It interfaces directly with the main 4-Channel Relay control card from the rear of the rack to execute dry-contact output switching based on system-wide alarm states.

Hardware Specifications

Alarm Drive Logic and Signal Suppression Matrix

The Bently Nevada 125720-01 coordinates with the front-plane monitoring architecture to execute precise AND/OR voting configurations across independent channels. The underlying logic engine samples Alert, Danger, and Not-OK hardware flags from any monitor module resident on the shared backplane bus. To prevent accidental machinery shutdown during transient rotor dynamics shifts or scheduled calibration procedures, the relay channels process status changes deterministically. This protection loop maintains output relay contact stability against electrical anomalies, ensuring that structural trip execution occurs only when verified sensor inputs violate configured voting logic boundaries.

Frequently Asked Questions

Q: Can the 125720-01 I/O module be used as a standalone relay module?

A: No. The 125720-01 is a rear-facing I/O module that must be installed directly behind a corresponding 3500/32 4-Channel Relay main monitor module to function.

Q: Does an internal "Not-OK" monitor status automatically actuate the relays?

A: Actuation depends entirely on configuration. The Alarm Drive Logic can be programmed via software to either include or bypass "Not-OK" hardware statuses, letting the engineer define whether a sensor fault should trigger a system trip or a system alert.

Field Installation Guidelines

• Slot Alignment Constraints: Power down the corresponding rack section before inserting the module. The 125720-01 must be positioned in the rear slot directly opposing the front 4-Channel Relay mainboard to ensure proper backplane connector pinning.
• Wiring Separation Practices: Route high-voltage terminal wiring (up to 250 VAC) away from low-voltage coaxial or proximity sensor transducer cables inside the wireways to avoid inductive noise coupling.
• Shield Grounding Control: Connect external device wiring screens to the dedicated rack ground lug. Do not create multi-point ground paths, which can generate stray currents and interfere with adjacent machinery diagnostics.
