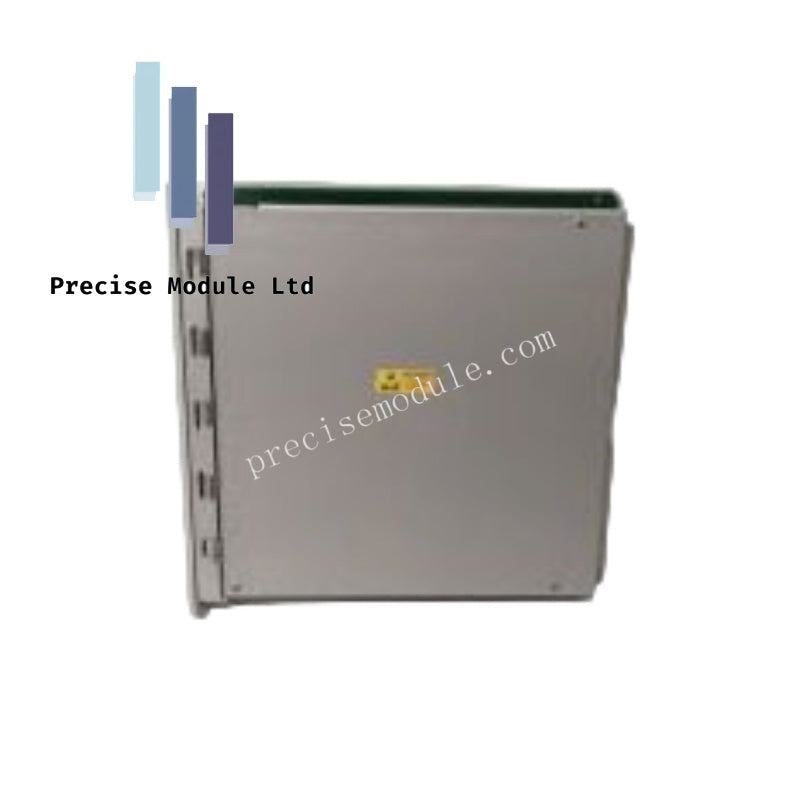

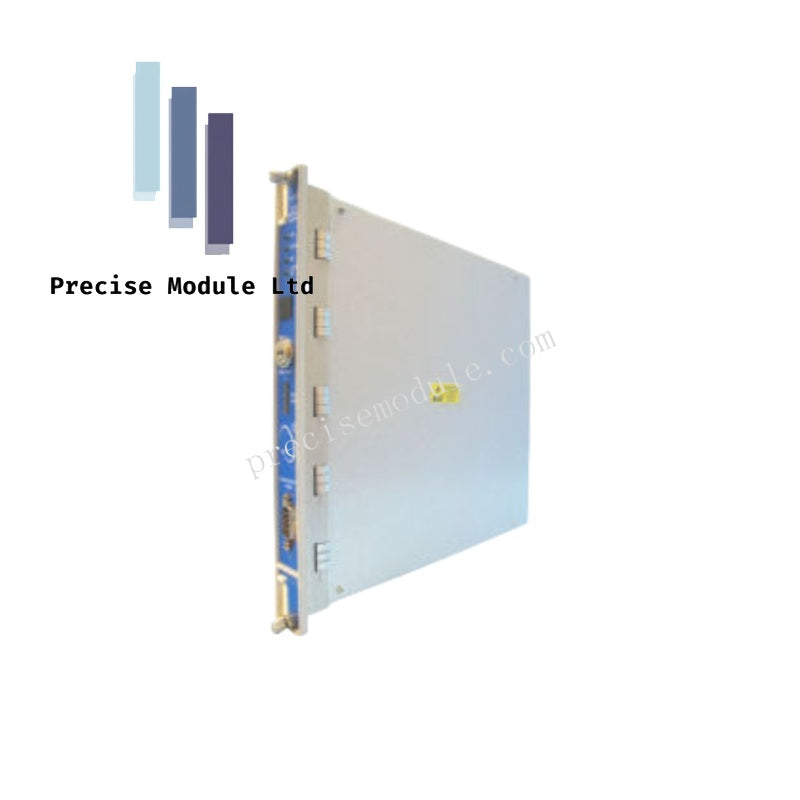

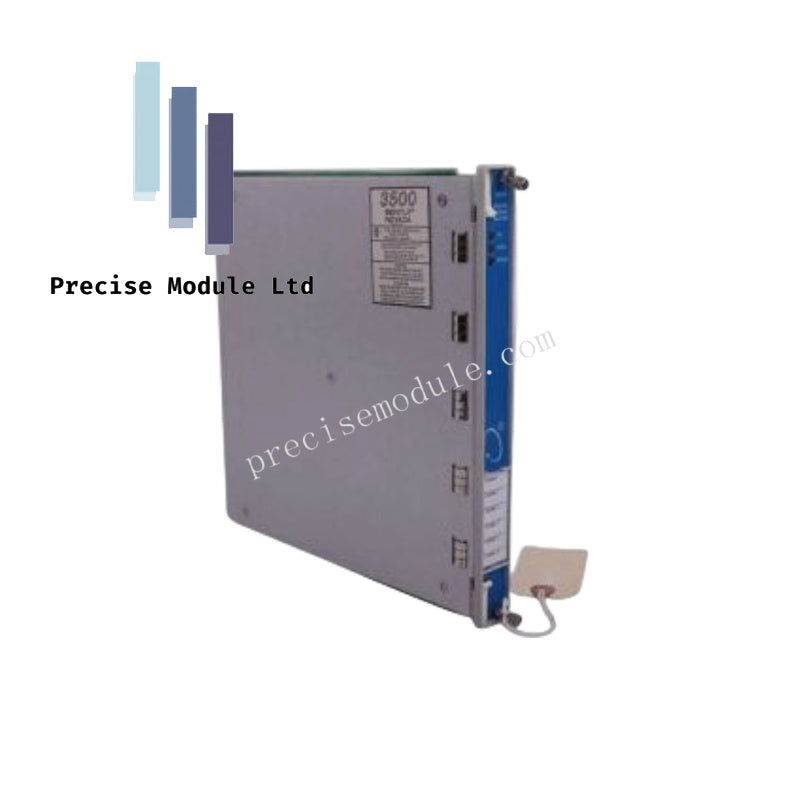

Bently Nevada 125744-02 3500/20 Rack Interface Module

Bently Nevada 125744-02 3500/20 Rack Interface Module

The Bently Nevada 125744-02 serves as the primary 3500/20 Rack Interface Module utilized to execute configuration data exchange and machinery information retrieval across Bently Nevada 3500 platforms. The device operates strictly inside slot 1 of the chassis to manage system-wide clock synchronization, event logging, and external communications engine connectivity without entering the critical protective monitoring loop.

Suffix Breakdown & Model Matrix

The 125744-02 part number designates the physical Rack Interface Module (RIM) hardware assembly. When ordered as part of the complete 3500/20-AXX-BXX matrix, the specific dash number dictates the backplane connection interface type, standard versus Triple Modular Redundant (TMR) processing algorithms, and modbus telemetry option cards fitted to the rear IO terminal space.

Hardware Specifications

Triple Modular Redundant Monitor Channel Comparison

When initialized in a Triple Modular Redundant (TMR) system topology, the Bently Nevada 125744-02 executes mathematical monitor channel comparison across adjacent processing nodes. The module pulls data structures from three redundant machinery protection cards to cross-validate voter integrity. If the internal logic tracks an operational deviation where one data stream exceeds the configured percentage window relative to the remaining two channels, the TMR hardware logs a fault condition inside the non-volatile System Event List while maintaining safe execution limits on downstream machinery trip relays.

Frequently Asked Questions

Q: Does a failure or extraction of the 125744-02 RIM interrupt machinery trip protection?

A: No. The RIM handles configuration, clock sync, and external communication links but remains completely outside the direct sensor-to-relay hardware protection path. Monitors continue to execute voting and alarm logic independently.

Q: Can this module be installed in any available slot within the 3500 rack?

A: No. The physical backplane trace architecture restricts the module to slot 1, directly adjacent to the power supply modules, to guarantee access to the system configuration bus lines.

Field Installation Guidelines

• Chassis Slot Restrictions: Verify that power is isolated from the 3500 rack prior to insertion. Slide the PWA directly into slot 1 using the top and bottom guide rails to prevent contact misalignment.
• Grounding Requirements: Ensure the rack chassis is bonded to earth ground with a low-impedance copper conductor. All external communications processors (TDXnet, TDIX, DDIX) connected via the RIM must share an identical ground reference plane to eliminate common-mode noise.
• Firmware Verification: When replacing a 125744-02 assembly, the technician must check the current rack firmware version via the 3500 configuration software to ensure protocol compatibility with existing I/O modules.
