Bently Nevada 125792-01 Enhanced Keyphasor Module

Bently Nevada 125792-01 Enhanced Keyphasor Module

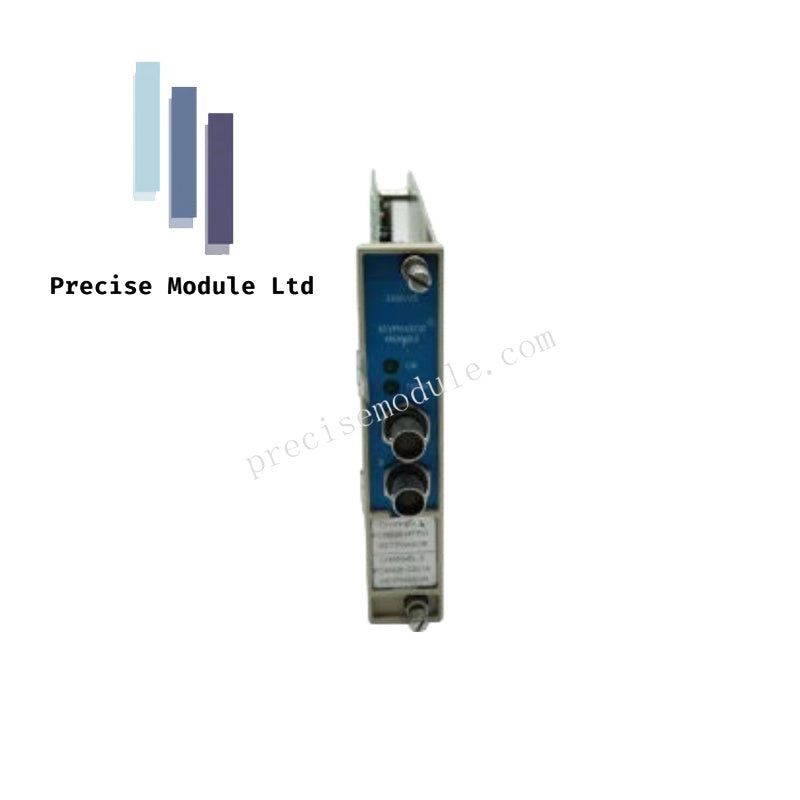

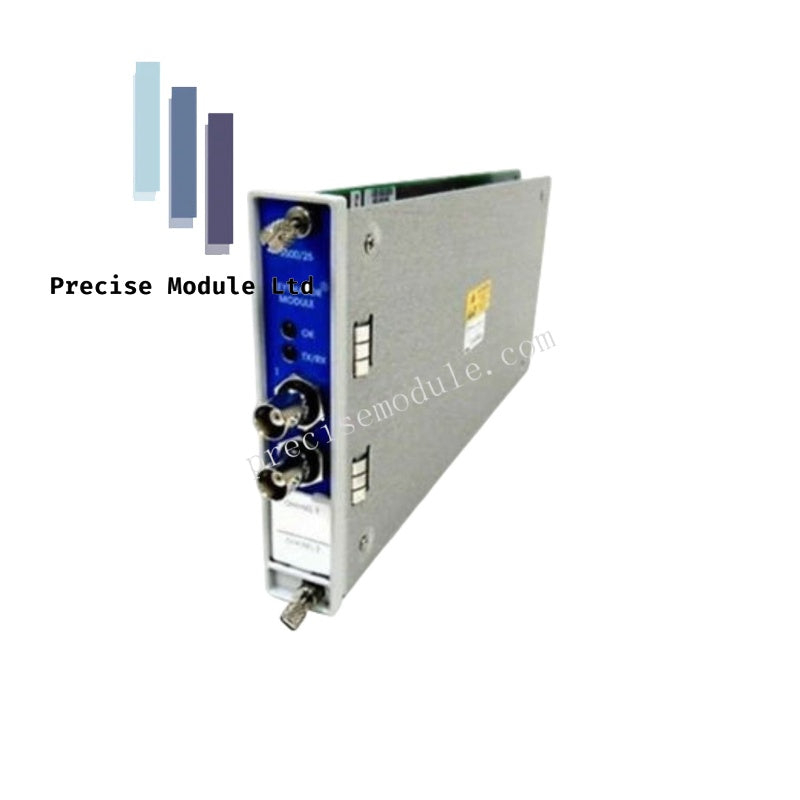

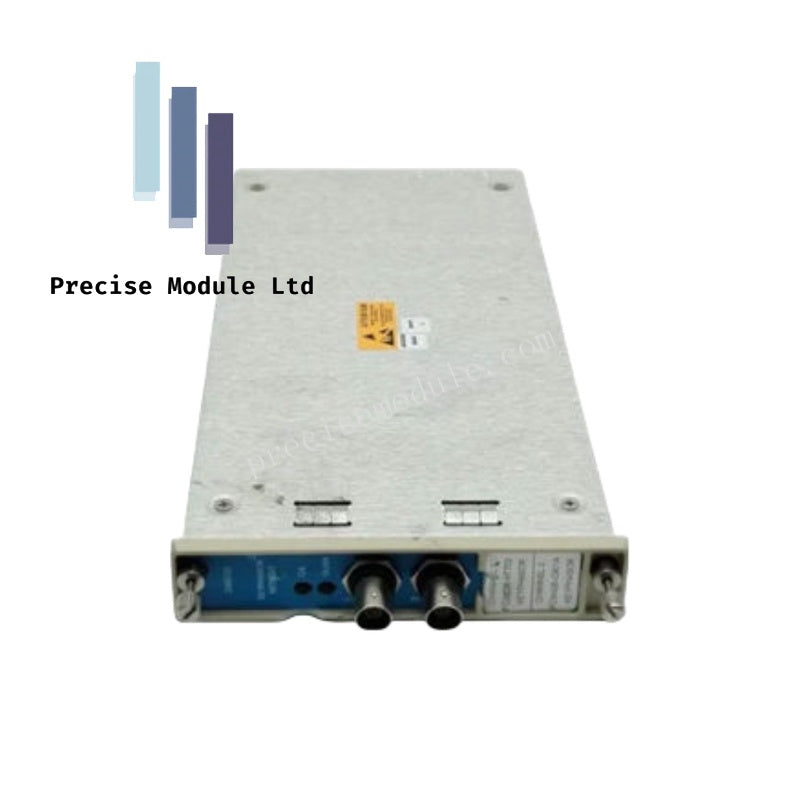

The Bently Nevada 125792-01, also cataloged as the 3500/25 Enhanced Keyphasor Module, operates as a dedicated hardware component for phase reference signal conversion and distribution within 3500 Machinery Protection System networks.

Hardware Specifications

Rotor Dynamics and Signal Validation

The 125792-01 half-height module processes incoming voltage waveforms from field-mounted proximity probes or magnetic pickups, converting them into digital phase reference pulses. In high-speed machinery monitoring, accurate rotor dynamics analysis requires precise eddy-current probe scaling to define the trigger threshold. The module executes gap voltage validation (-10 VDC targets) to ensure the transducer operates within its linear range, aligning the electrical trigger precisely with the physical Keyphasor mark on the shaft. The hardware features 500 V channel-to-ground isolation, providing hardware-level cross-talk suppression that prevents common-mode noise from introducing jitter into the timing signals distributed across the rack backplane.

Frequently Asked Questions

Q: How many Keyphasor signals can the 3500 rack backplane process simultaneously?A: The 3500 rack infrastructure supports up to four Keyphasor signals in a standard configuration. When modules are deployed in a paired configuration, the system architecture can process up to eight distinct Keyphasor signals.

Q: Does the module support active hot-swapping during machinery operation?A: Yes, the 125792-01 is engineered for live insertion and removal. However, extracting the module immediately drops the Keyphasor pulse from the backplane bus, which will instantly invalidate dependent vibration vector measurements (e.g., 1X amplitude and phase) on associated monitor modules.

Field Installation Guidelines

The 125792-01 must be installed in designated half-height slots within the 3500 rack chassis. Align the module with the upper or lower card guides and push firmly until the rear edge connectors engage fully with the backplane. Secure the front panel captive screws to ensure continuous chassis grounding. Field wiring from the transducers terminates at the corresponding I/O module mounted on the rear of the rack. Signal cable shields must be grounded at the designated instrument earth bar to maintain the 500 V isolation integrity and prevent ground loops. Prior to configuring the trigger threshold via software, physically measure the DC gap voltage of the proximity probe to confirm it rests within the nominal operating limit.
