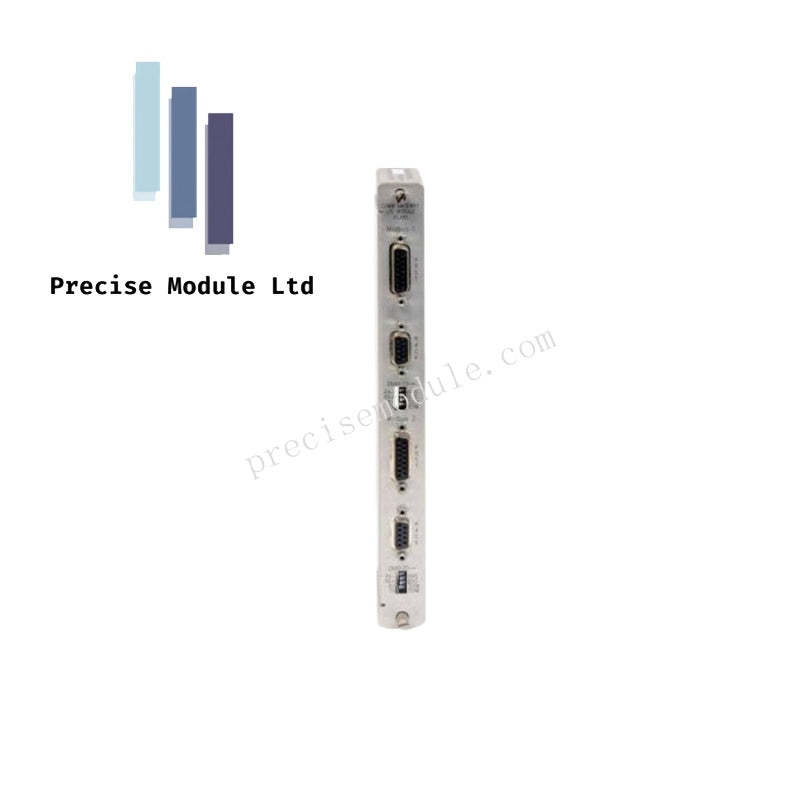

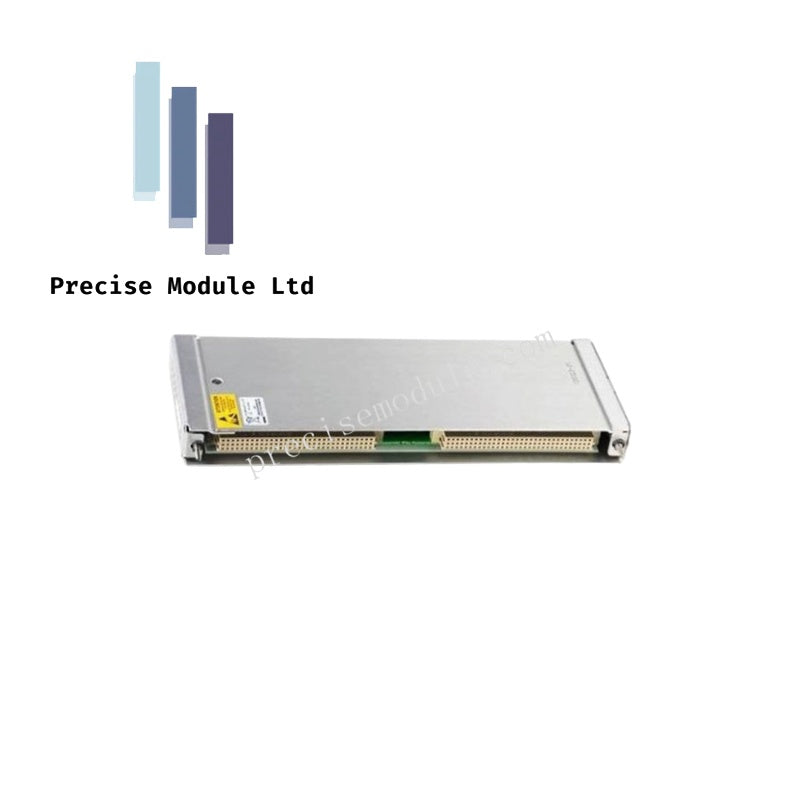

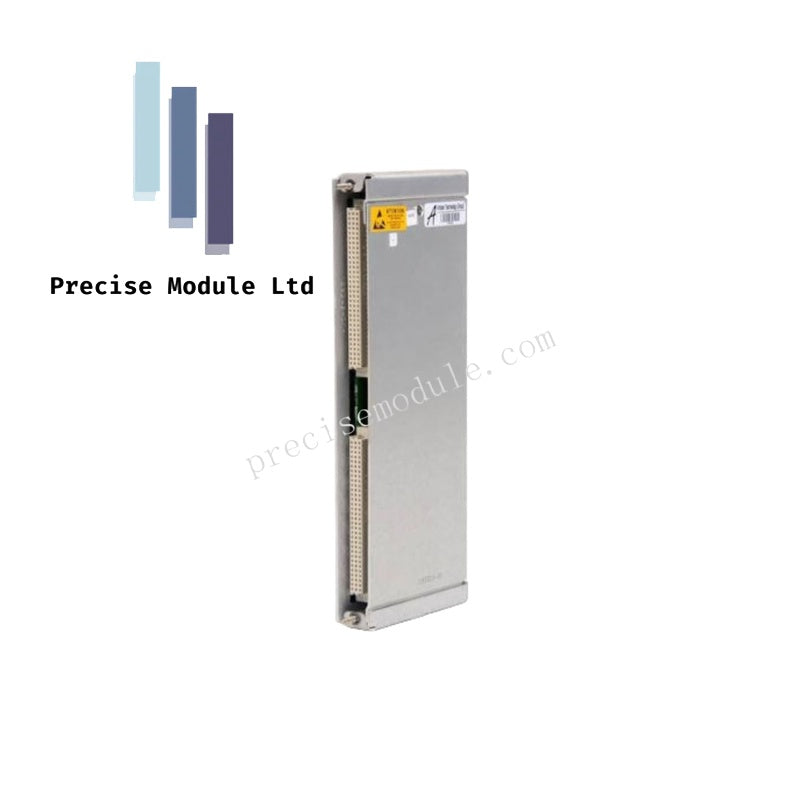

Bently Nevada 133323-01 I/O Module

Bently Nevada 133323-01 I/O Module

The Bently Nevada 133323-01, also cataloged as the 133323 Modbus RS485 I/O Module, operates as a dedicated hardware component for serial data integration between the 3500 Machinery Protection System and external automation platforms.

Hardware Specifications

Mechanical Monitoring and TSI Characteristics

The Bently Nevada 133323-01 facilitates the exchange of rack-monitored values, alarm statuses, and diagnostic information via the Modbus RTU protocol. Engineered for integration with the 3500/92 Communication Gateway, the module ensures robust signal transmission for process control and supervisory systems. The module supports galvanically isolated communication paths to prevent ground loop interference, which is a common requirement in complex turbine and rotor dynamics monitoring environments. Configurable baud rates and parity settings allow for seamless adaptation to diverse industrial serial network architectures while maintaining data integrity across the backplane bus.

Frequently Asked Questions

Q: Does this module require an external power supply?

A: The module operates on 24 VDC power, typically sourced from the 3500 rack backplane or associated power supplies, within a tolerance of plus/minus 10%.

Q: Can the serial communication parameters be modified in the field?

A: Yes, the module supports configurable baud rates ranging from 1200 to 115200 bps and selectable data formats (8N1, 8E1, 8O1) to match existing DCS or PLC network requirements.

Field Installation Guidelines

• Bus Termination: Ensure the RS485 network is correctly terminated at both physical ends of the communication cable to prevent signal reflections and data corruption.
• Shielding: Utilize shielded twisted-pair cabling for all RS485 connections and ensure the shield is grounded at a single point to minimize electromagnetic interference.
• Isolation Integrity: Maintain the 1500 V AC channel-to-bus isolation by ensuring that wiring does not introduce common-mode noise between the serial bus and external field ground.
• Module Seating: Verify the I/O module is fully engaged with the rack connector to ensure stable connectivity with the Communication Gateway.
