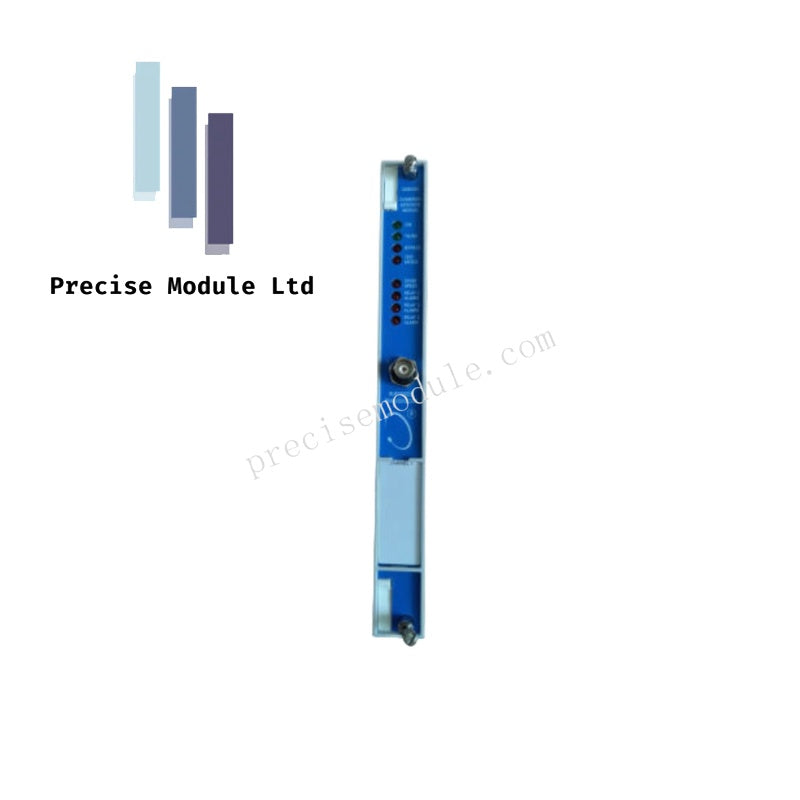

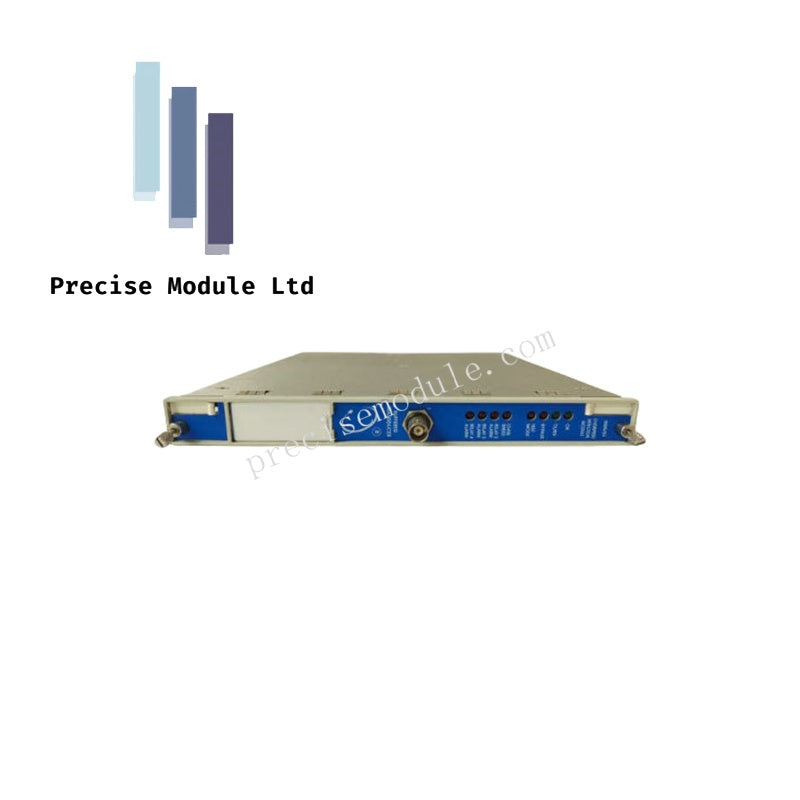

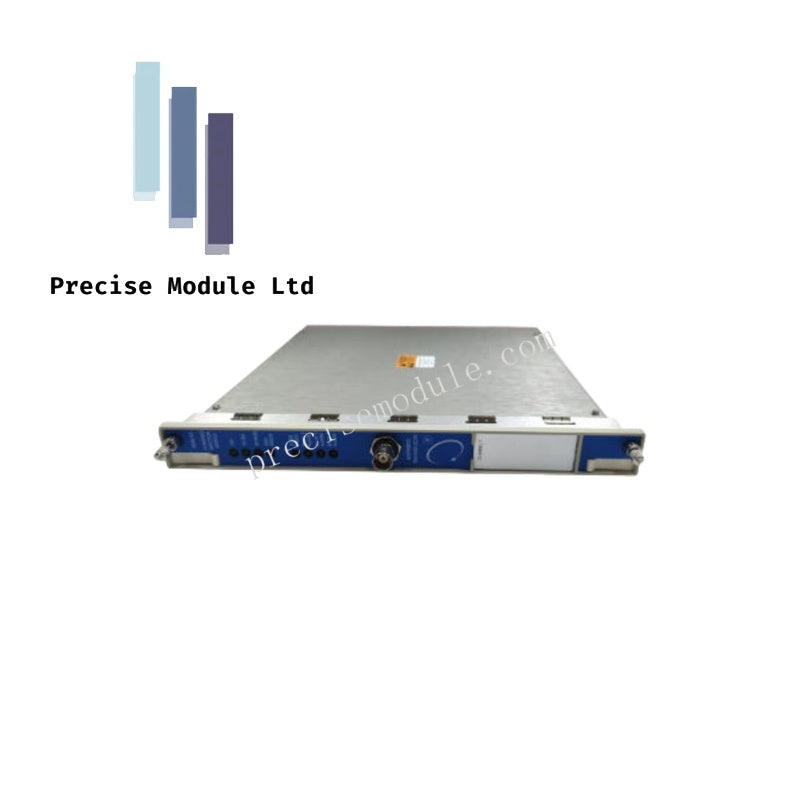

The Bently Nevada 133388-01 serves as the primary 3500/53 Overspeed Detection System utilized to execute continuous speed monitoring and emergency overspeed trip protection across Bently Nevada 3500 platforms. The module operates as a high-precision frequency processing unit, evaluating real-time pulse train metrics from industrial speed transducers to prevent catastrophic rotational component degradation.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics Integration

The internal processing architecture of the Bently Nevada 133388-01 utilizes specialized eddy-current probe scaling to precisely track high-speed gear tooth or keyway transitions. In complex rotor dynamics environments, the module filters raw frequency input to minimize signal distortion caused by shaft runout or mechanical tooth irregularities. Integrated cross-talk suppression circuitry shields the speed channels from adjacent proximity transducer signals, ensuring accurate zero-speed, reverse-rotation, and overspeed trip calculation metrics even when gap voltage validation deviates near high-vibration boundaries.

Frequently Asked Questions

Q: What is the maximum response time of the 133388-01 overspeed trip decision loop?

A: The internal logic executes overspeed trip evaluations within a deterministic window of less than 30 milliseconds from the exact instant the physical frequency threshold is breached.

Q: Can standard magnetic pickups and passive proximity probes be wired to the same module?

A: Yes. The hardware interface supports inputs from magnetic pickups, passive transducers, and active eddy-current proximity probes, configurable via the system software utility.

Field Installation Guidelines

• Sensor Gap Verification: Prior to operation, confirm that the associated eddy-current proximity probes or magnetic pickups meet precise gap voltage validation targets to guarantee distinct tooth-space pulse transitions.
• Shield Continuity Management: Terminal connections for sensor cables must maintain shield insulation throughout the run. Ground the cable shields strictly at the designated 3500 rack ground bar to block external electromagnetic coupling.
• Module Seating: Insert the full-height card into its designated slot until the rear interface firmly matches the backplane bus pins, then lock down the top and bottom chassis retention screws.
