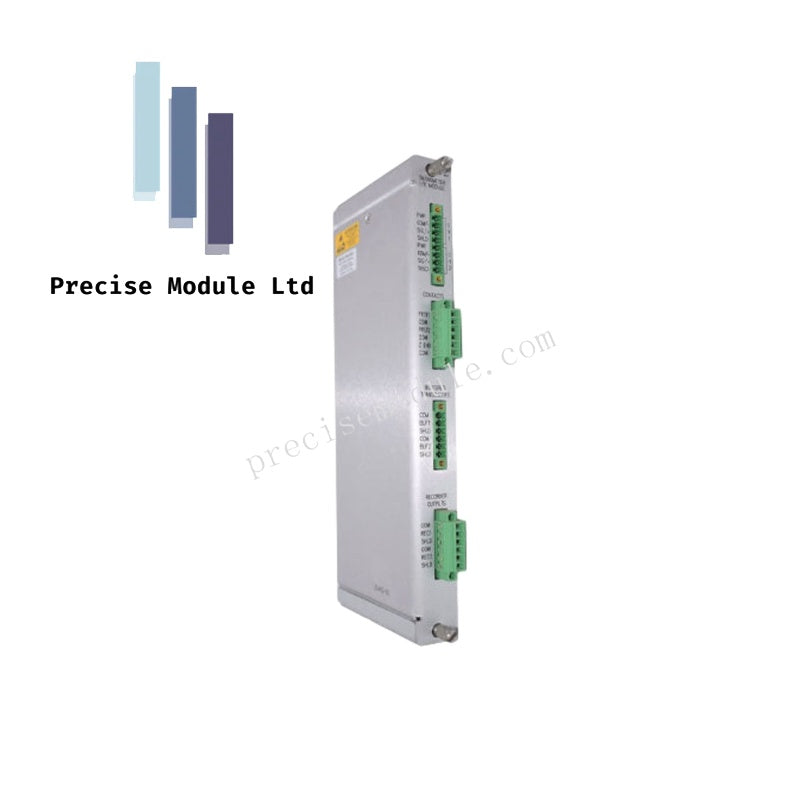

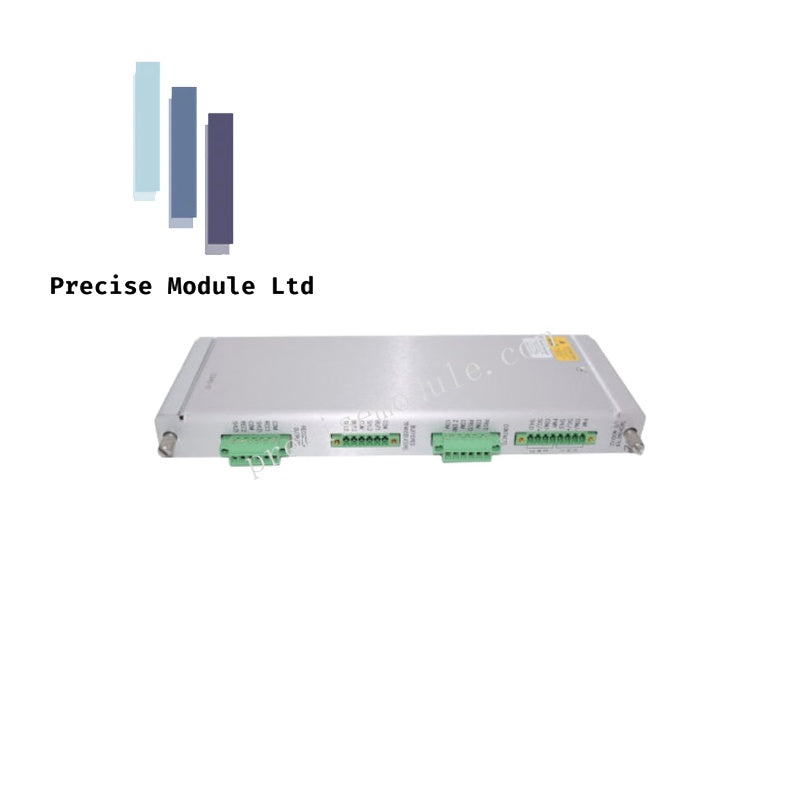

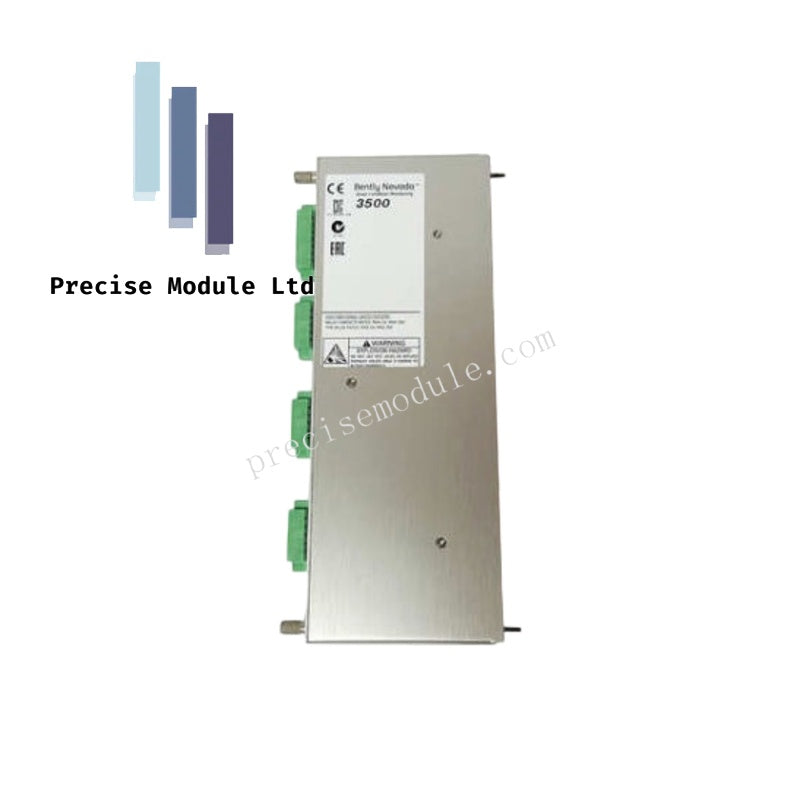

Bently Nevada 133442-01 3500/50M Tachometer Module

Bently Nevada 133442-01 3500/50M Tachometer Module

The Bently Nevada 133442-01, also cataloged as the 3500/50M Tachometer Module, operates as a dedicated hardware component for shaft rotative speed monitoring, rotor acceleration computation, and rotor direction detection within the 3500 Machinery Protection System. The module processes raw pulse inputs directly from proximity probes or magnetic pickups and executes continuous comparison against programmed alarm thresholds.

Hardware Specifications

Eddy-Current Probe Scaling and Transducer Verification

The 3500/50M module enforces strict gap voltage validation (-10 VDC targets) when interfacing with standard proximity probe systems. The internal conditioning circuitry verifies transducer bias voltages to detect open-circuit or short-circuit faults before processing rotor dynamics metrics. Accurate eddy-current probe scaling must be programmed via the configuration software to translate the physical voltage pulses into precise angular velocity values, while active cross-talk suppression algorithms isolate adjacent sensor signals across the backplane bus.

Frequently Asked Questions

Q: Can the 133442-01 module be hot-swapped while the 3500 rack is energized? A: Yes. The 3500/50M I/O module supports live insertion and removal (hot-swapping) without interrupting the operation of adjacent protection monitors within the same rack, provided that the system configuration parameters remain unchanged during the physical exchange.

Q: How does the module handle Keyphasor routing without a dedicated Keyphasor module? A: The module conditions raw transducer inputs and routes them directly to the 3500 backplane as conditioned Keyphasor signals. These synchronized phase references become globally accessible to all other monitoring modules installed in the same rack enclosure.

Field Installation Guidelines

• Shield Grounding Execution: Terminate all transducer cable shields at the 3500 rack chassis ground bar only. Do not connect the shield at the sensor end to prevent ground loops.
• Wiring Separation Limits: Maintain a minimum distance of 15 cm between low-voltage signal wiring and high-voltage power cables to minimize electromagnetic interference.
• Sensor Clearance Adjustments: Ensure the proximity probe tip is mechanically calibrated to target the correct linear linear gap voltage window before committing configuration limits.
• Enclosure Mounting Rigidity: Tighten the rear I/O card thumbscrews completely to secure the module pins within the backplane mating connector and maintain DIN-rail or panel-mount stability.
