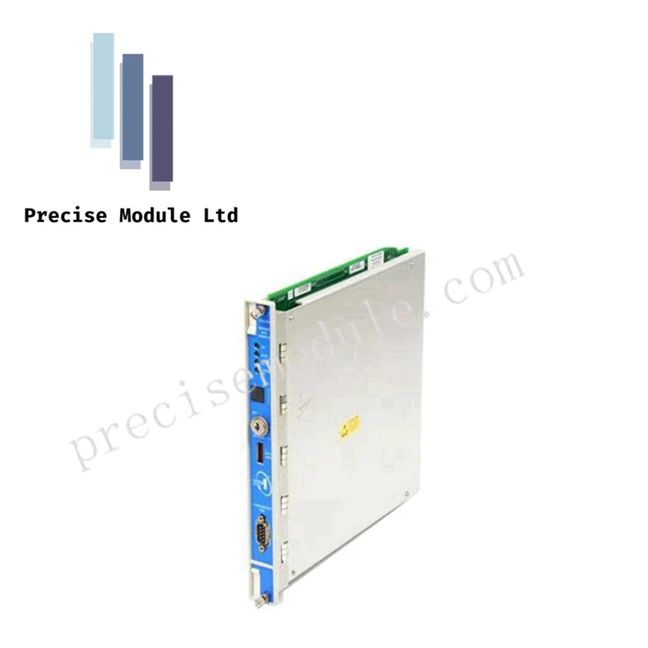

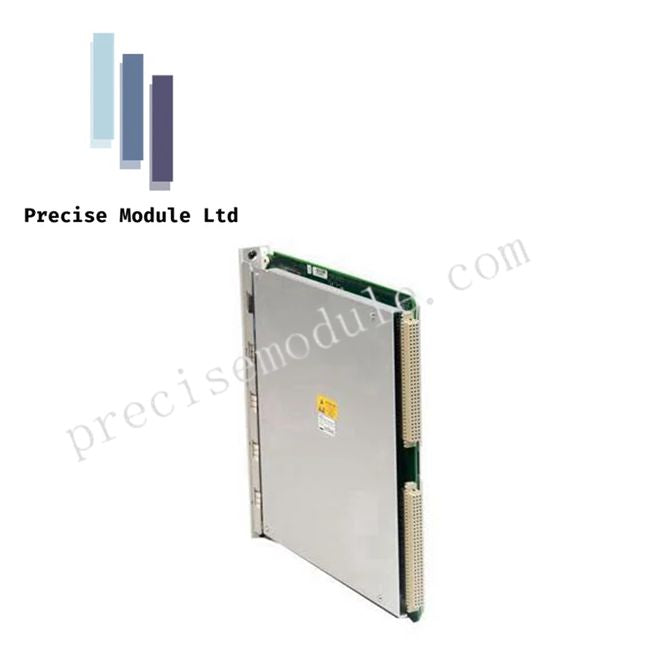

Bently Nevada 138607-01 3500 Series Dual Transient Data Interface

Product Description

Overview

The Bently Nevada 138607-01 Dual Transient Data Interface (TDI) is an advanced communication module designed for the 3500 Series Machinery Protection System. It acts as the primary gateway between the 3500 rack and System 1™ software, capturing both static measurements and high-speed transient waveform data for detailed vibration analysis and machinery diagnostics.

This module is engineered for high-resolution data acquisition during steady-state operation and transient events, including machine startups, coast-downs, and operational transients. Its dual-port connectivity ensures robust, redundant communication with local or remote monitoring stations.

Key Features

High-Resolution Data Capture

• Simultaneously samples all channels in the rack without loss of resolution.

• Captures transient events for detailed Bode, Polar, and waveform analysis.

• Configurable trigger conditions, including amplitude, slope, and event-based recording.

Flexible Communication Interfaces

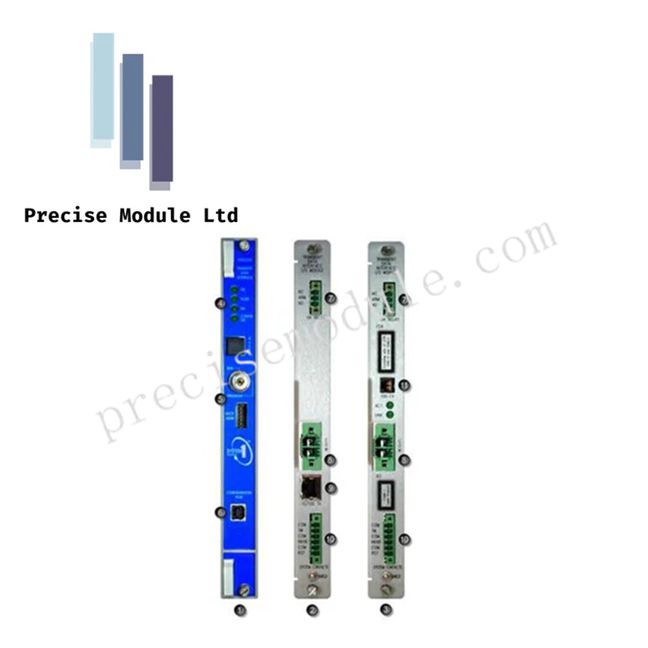

• Dual Ethernet ports and USB Type-B connection for redundant high-speed data transmission.

• Supports proprietary System 1 protocols and basic Modbus integration with DCS or PLC systems.

• Front-panel LEDs indicate module status, transmit/receive activity, and configuration mode.

Integrated Rack Diagnostics

• Continuously monitors health of all connected 3500 modules.

• Alerts for configuration mismatches or hardware errors, supporting proactive maintenance.

Configurable and Compatible

• Programmable via 3500 Rack Configuration Software to define alarm setpoints, sampling rates, and buffer sizes.

• Backward compatible with multiple 3500 backplane revisions for flexible system upgrades.

Technical Specifications

Applications

• High-speed vibration and transient data acquisition for turbines, compressors, and rotating machinery.

• Integration with Bently Nevada System 1™ for condition monitoring and predictive maintenance.

• Supports detailed diagnostic analysis during transient machine events for advanced fault detection.

FAQ

Q: Can the 138607-01 capture transient events during machine start-up?
A: Yes, it is specifically designed to record high-resolution snapshots during transient speed changes.

Q: Is this module compatible with older 3500 racks?
A: Yes, it is backward compatible with multiple backplane revisions.

Q: Which interfaces are available for data output?
A: Ethernet, USB Type-B, and RS-232 are supported.
