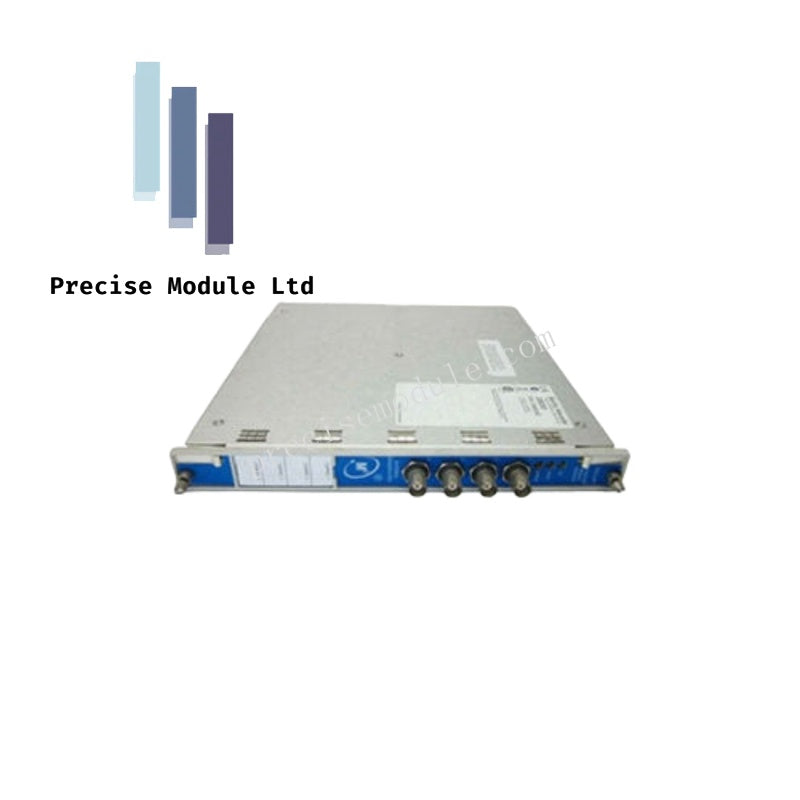

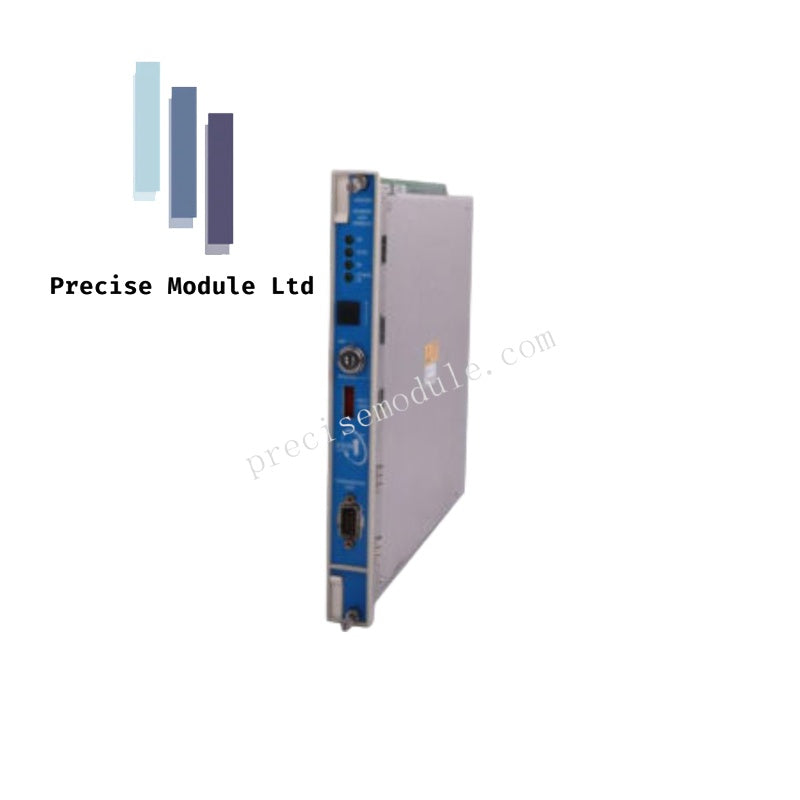

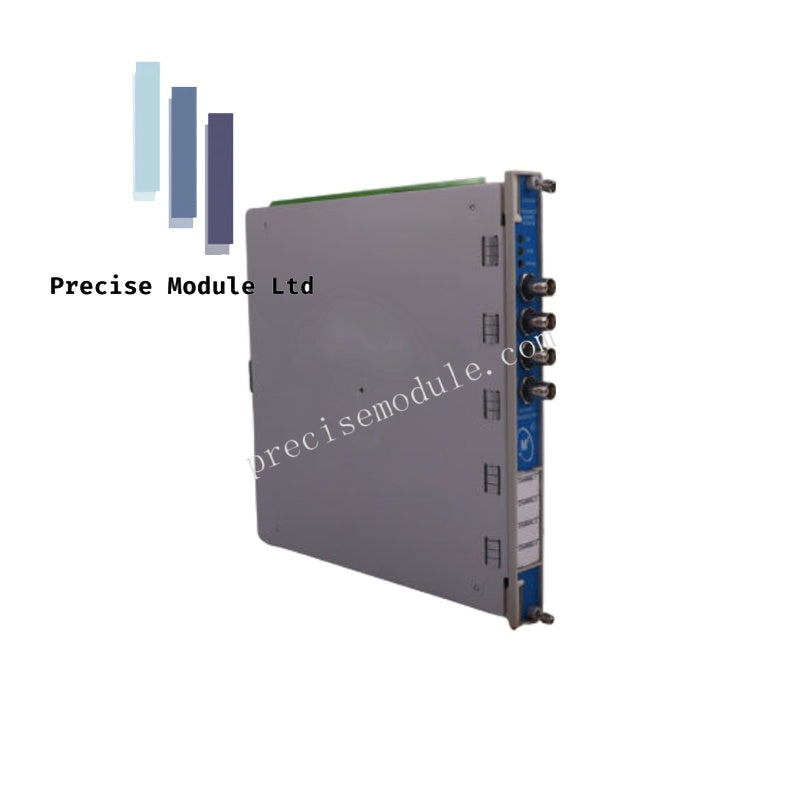

Configured for specific technical tasks in machinery monitoring infrastructure networks, the Bently Nevada 140734-02 (3500/42M Proximity/Seismic Monitor Module) provides direct physical/electrical execution. It functions as a four-channel monitoring component that processes raw inputs from proximity and seismic transducers to execute continuous vibration and position measurements.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The module processes dynamic signals using integrated eddy-current probe scaling to monitor critical rotor dynamics profiles. Channel pairs condition transducer waveforms into discrete parameters, including radial vibration, thrust position, shaft absolute, and eccentricity variables. Internal cross-talk suppression protocols prevent signal overlapping across adjacent channels during high-frequency tracking. The module supplies a -24 Vdc transducer power source to stabilize external loops, allowing operators to execute gap voltage validation against standard baseline settings near -10 VDC within the active linear measurement domain.

Frequently Asked Questions

Q: Can channels on the 3500/42M execute different monitoring functions simultaneously?

A: Yes. The monitor channels are programmed in pairs using rack configuration software and can execute up to two functions concurrently, allowing channels 1 and 2 to monitor one variable while channels 3 and 4 monitor another.

Q: What is the purpose of the built-in gap filter specification?

A: The gap filter provides a frequency cutoff at -3 dB at 0.09 Hz, isolating low-frequency position data from dynamic AC vibration signals for thrust and alignment tracking.

Field Installation Guidelines

• Transducer Power Grounding: Verify the -24 Vdc transducer power supply output loop is properly isolated and that field terminal connections maintain correct polarity to prevent sensor damage.
• Channel Pair Pairing: Configure channel measurement tasks strictly in pairs (Channels 1/2 and Channels 3/4) via the rack configuration software to match the physical input transducer types.
• Output Impedance Alignment: Ensure the downstream diagnostic instruments or recorders align with the 550 Ohm analog output impedance specification of the module.
• Shield Continuity Separation: Route seismic and proximity sensor field leads through distinct, shielded conduit pathways to eliminate industrial electromagnetic noise interference.
