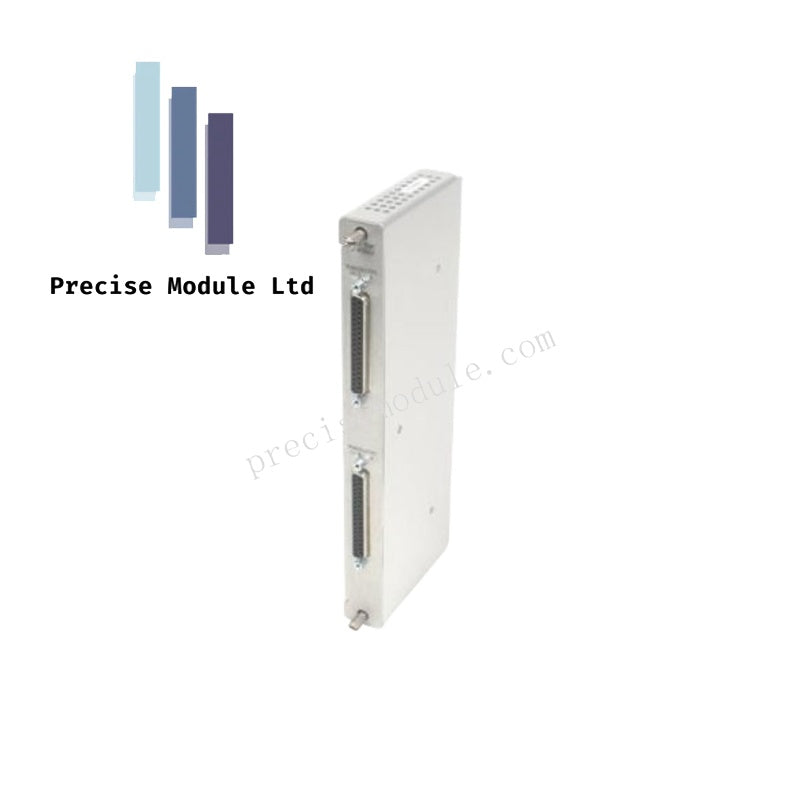

Bently Nevada 172103-01 RTD/Isolated Tip TC I/O Module

Bently Nevada 172103-01 RTD/Isolated Tip TC I/O Module

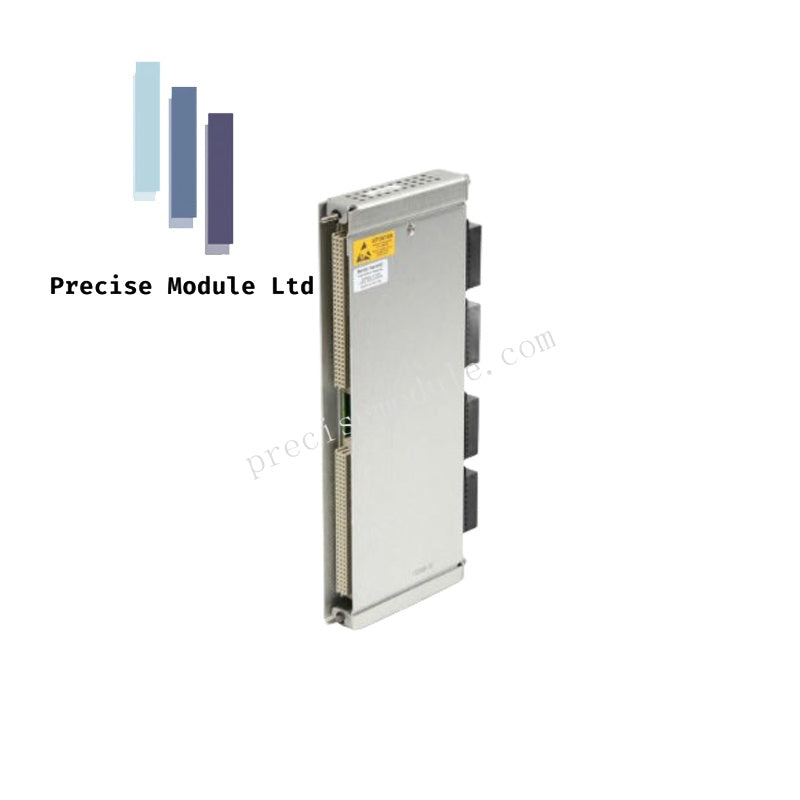

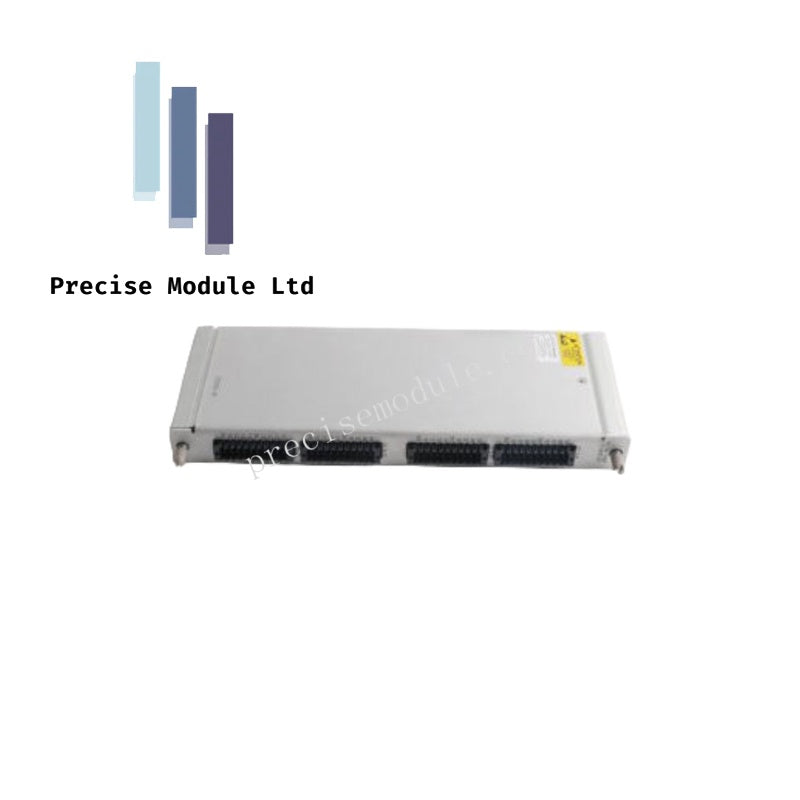

The Bently Nevada 172103-01, also cataloged as the 3500/65 RTD/Isolated Tip TC I/O Module, operates as a dedicated hardware component for multi-channel temperature monitoring within 3500 machinery protection systems.

Hardware Specifications

Mechanical Monitoring and TSI Characteristics

The module utilizes high-precision cold junction compensation (CJC) for thermocouple inputs to ensure accurate temperature measurement in industrial environments. In Triple Modular Redundant (TMR) applications, the system employs 2oo3 voting architecture to mitigate single-point failures and ensure high-availability protection. Signal integrity is maintained via comprehensive galvanic isolation, preventing common-mode noise interference across the 16 independent input channels during real-time monitoring of fluid-film bearing temperatures.

Frequently Asked Questions

Q: Is the 172103-01 module compatible with both RTD and Thermocouple sensors simultaneously?

A: Yes. The module supports a combination of RTD and isolated tip thermocouple inputs, which can be configured via the 3500 Rack Configuration Software.

Q: What is required for TMR configuration?

A: In TMR configurations, temperature monitors must be installed in groups of 3 adjacent modules. The system automatically executes voting logic to maintain measurement accuracy.

Field Installation Guidelines

• Rack Mounting: Install the module in a single full-height rear slot of the 3500 rack. Ensure the backplane connection is fully seated to maintain reliable communication with the rack interface module.
• Wiring: Utilize shielded twisted-pair cabling for all temperature sensor inputs. Ensure the shield is grounded at the rack entry point according to site grounding specifications to prevent electromagnetic noise.
• Sensor Configuration: Verify that the input configuration in the 3500 software matches the physical sensor type (e.g., 3-wire vs 4-wire RTD) to avoid measurement offsets.
• Internal Terminations: Since this module uses internal terminations, ensure that all field wiring is routed to the terminal block with adequate strain relief to prevent mechanical stress on the I/O connectors.
