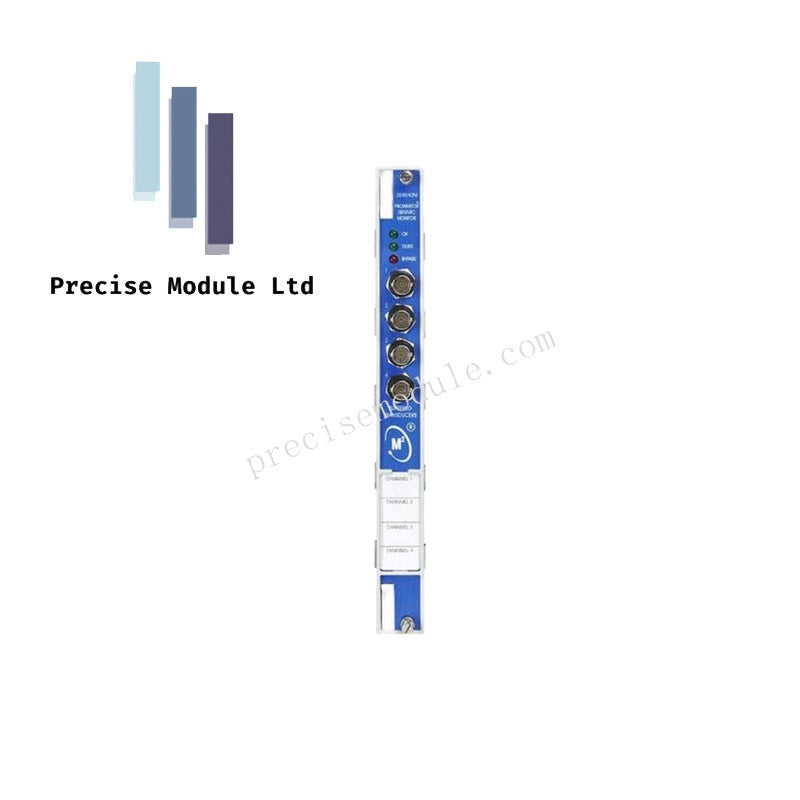

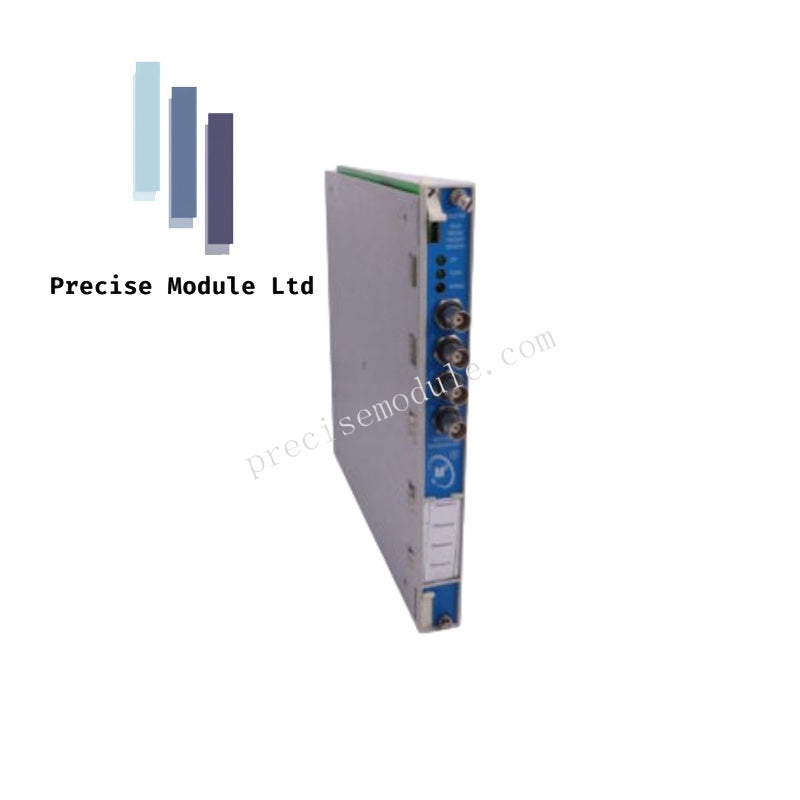

Bently Nevada 176449-03 Aeroderivitive GT Vibration Monitor

Bently Nevada 176449-03 Aeroderivitive GT Vibration Monitor

The Bently Nevada 176449-03, also cataloged as the 3500/44M Aeroderivitive GT Vibration Monitor, operates as a dedicated hardware component for continuous vibration analysis and machinery protection within aeroderivative gas turbine systems.

Hardware Specifications

Rotor Dynamics and Signal Filtering

The 176449-03 module provides specialized signal processing for high-speed gas turbine applications. It supports multiple filter configurations, including signal integration, 1X vibration tracking, and band-pass vibration analysis, to facilitate accurate rotor dynamics evaluation. The module incorporates dual Keyphasor inputs, allowing individual channel pairs to utilize unique tracking filters. Advanced multimode operation supports up to eight alarm parameter sets, enabling the monitor to dynamically adjust alert and danger thresholds based on specific machine modes, triggered either via physical contacts on the I/O module or through software-based communications gateway commands.

Frequently Asked Questions

Q: Can the 3500/44M handle different tracking filters simultaneously?

A: Yes, the module accepts input from two separate Keyphasor signals, which allows for distinct tracking filters to be applied to different channel pairs within the same monitor.

Q: How are alarm setpoints managed during different machine operation modes?

A: The module supports up to eight sets of alarm parameters. These sets can be switched automatically or manually using multimode I/O module contacts or external communications gateway commands.

Field Installation Guidelines

• Sensor Interfacing: Utilize the designated Prox/Velom I/O modules to interface with connected Velomitor sensors and accelerometers. Ensure cable shields are properly terminated at the I/O module ground to prevent signal noise.
• Backplane Alignment: Carefully insert the module into the 3500 rack, ensuring full engagement with the backplane connectors. Improper seating may lead to intermittent signal loss or diagnostic errors.
• Keyphasor Wiring: Ensure that the two Keyphasor signals are wired to the correct input terminals as defined in the system documentation to ensure accurate phase and tracking filter performance.
• Environment: Maintain the operating environment within the specified temperature and humidity ranges to ensure long-term stability of the signal conditioning circuitry.
