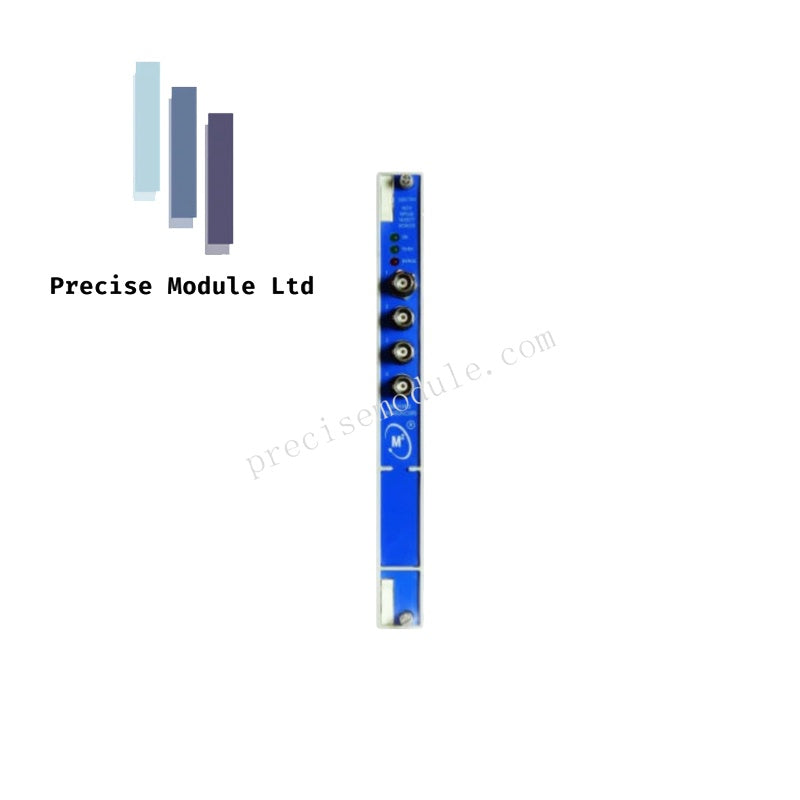

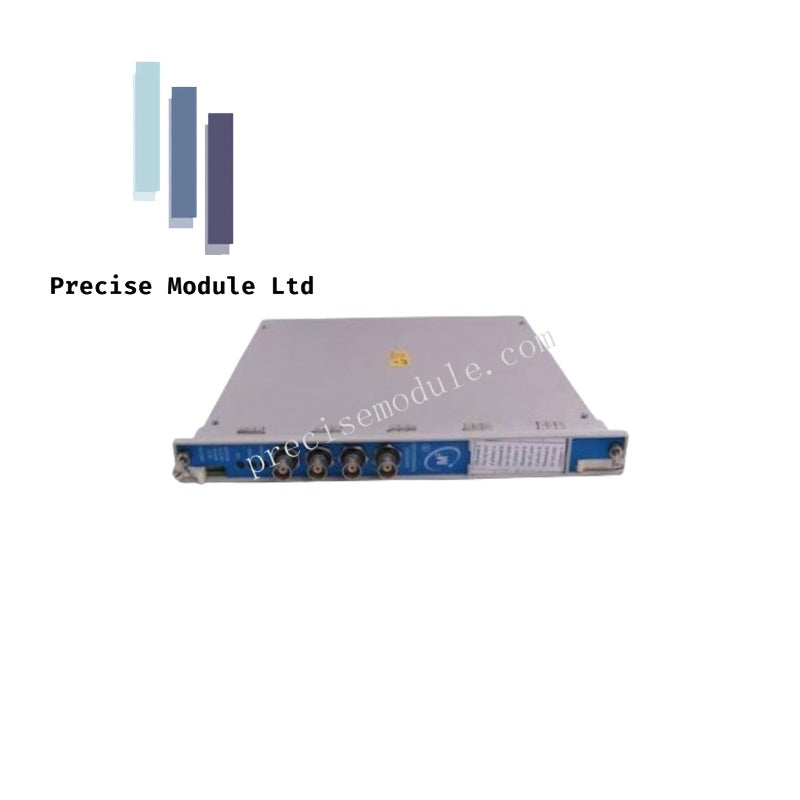

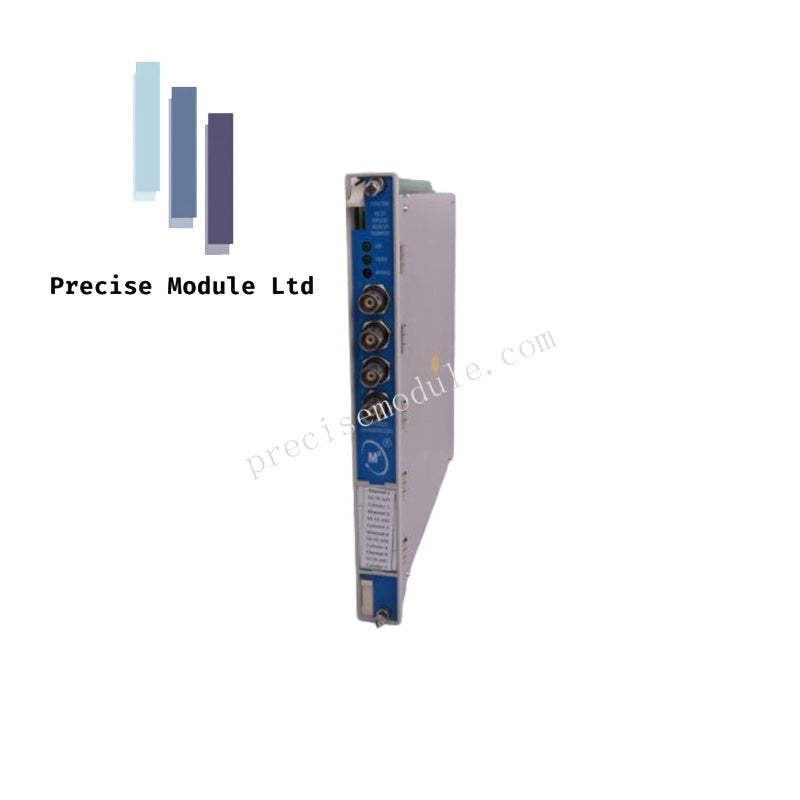

The Bently Nevada 176449-09, also cataloged as the 176449 Velocity Monitor, operates as a dedicated hardware component for reciprocating compressor vibration analysis within 3500 Machinery Protection System platforms. This 4-channel module processes inputs from seismic transducers to monitor crankcase and crosshead mechanical integrity.

Hardware Specifications

Mechanical Monitoring & TSI Integration

The 176449 module performs high-fidelity signal conditioning to derive critical vibration measurements required for reciprocating compressor diagnostics. Configurable via 3500 Rack Configuration Software, the unit supports Impulse Acceleration, Acceleration 2, Recip Velocity, and Low Frequency Recip Velocity functions. By employing advanced filtering and signal processing, the monitor ensures accurate comparison against user-programmable alarm setpoints. The module maintains deterministic operation across the rack backplane, ensuring that vibration data is processed with minimal latency to facilitate timely protection execution during fault conditions.

Frequently Asked Questions

Q: Can this monitor be configured for different vibration measurement types?

A: Yes. Each of the four channels can be independently programmed for Impulse Acceleration, Acceleration 2, Recip Velocity, or Low Frequency Recip Velocity via the Rack Configuration Software.

Q: Is the module compatible with standard seismic transducers?

A: Yes. The monitor is designed to accept inputs from seismic transducers and condition these signals for specific reciprocating compressor monitoring applications.

Q: What is the impact of the <100 ms update rate on alarm performance?

A: The high-speed update rate ensures that rapid changes in vibration amplitude are captured and processed by the protection logic without significant delay, meeting the requirements for timely alarm triggering.

Field Installation Guidelines

1. Rack Slot Insertion: Ensure the monitor is inserted into the correct slot within the 3500 rack. Verify that the backplane connectors are seated properly to establish power and communication links.

2. Transducer Cabling: Use high-quality shielded cables from the seismic transducers to the monitor input terminals. Ensure the shield is grounded at the monitor terminal block to prevent electromagnetic interference (EMI).

3. Configuration Validation: After physical installation, connect the 3500 Rack Configuration Software to confirm that channel assignments and alarm setpoints match the specific machine protection requirements.

4. Environmental Considerations: Although the module is rated for specific temperature ranges, ensure the equipment rack is located in an area with adequate airflow and within the specified humidity limits to prevent long-term component degradation.
