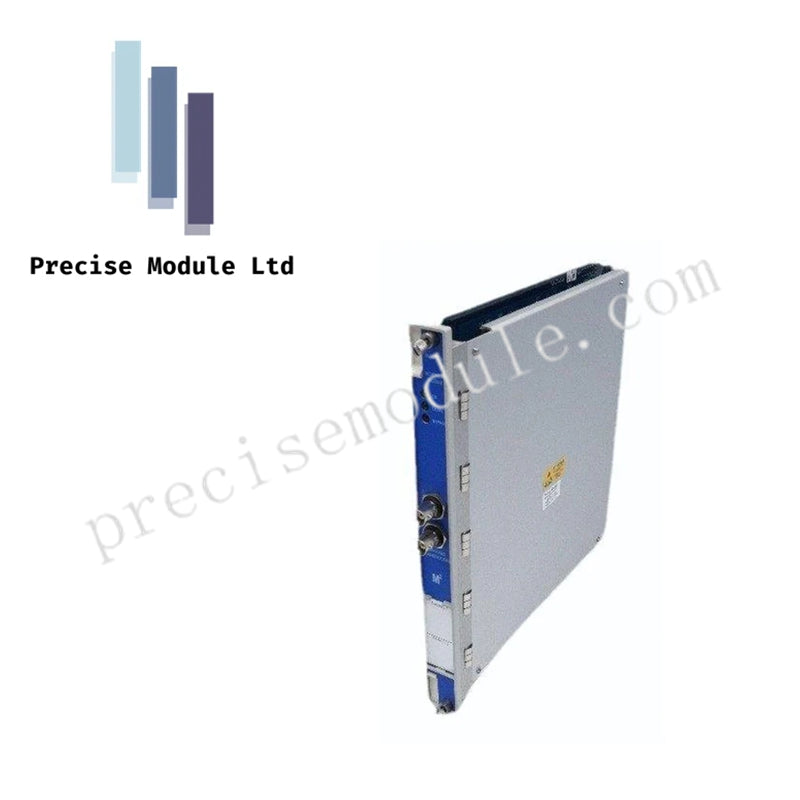

Bently Nevada 177897-01 TDI Module | Ethernet Communication | 3500 Monitoring System

Product Description:

The Bently Nevada 177897-01 is the essential Standard Transient Data Interface (TDI) Module for the 3500 Monitoring System, designed to provide robust data collection and communication capabilities for machinery monitoring and diagnostics. It serves as the communication bridge between the internal monitoring cards of the 3500 rack and external diagnostic software, such as System 1 or 3500 Rack Configuration Software. This module plays a critical role in monitoring machinery health by collecting both static and high-speed transient data.

Key Features:

1. Static and Transient Data Acquisition:
   The 177897-01 TDI continuously collects static data, including overall vibration levels and gap voltages. Its core strength lies in capturing transient data—high-speed vibration signals during machine start-ups, coast-downs, or trips. This allows engineers to analyze detailed waveform data, such as orbits and time traces, for deeper diagnostics and predictive maintenance.

2. System 1 Connectivity:
   As a vital part of the System 1 Condition Monitoring Software, the TDI module enables high-speed data transfer necessary for predictive maintenance and machinery health analysis. Without the TDI, System 1 would be unable to access critical transient data, hindering comprehensive machinery diagnostics.

3. USB Configuration Port:
   The 177897-01 TDI comes with a front-facing USB Type-B port, enabling local configuration of the system without requiring network access. This feature allows for "daisy-chaining" multiple racks for maintenance and configuration updates directly via a laptop.

4. Rack Health Monitoring and Diagnostics:
   The TDI monitors the health status of all modules within the 3500 rack. If a failure occurs, such as a power supply malfunction or proximity probe disconnection, the TDI logs the fault and can communicate the event to the Distributed Control System (DCS) for immediate action.

5. Ethernet-Based Communication:
   The TDI module uses Ethernet (TCP/IP) for communication, ensuring high-speed and reliable data transfer to connected servers. It supports the Modbus protocol over Ethernet and includes diagnostic LEDs for quick system status verification.

6. Non-Volatile Memory:
   The 177897-01 TDI features non-volatile memory for storing configuration data and event logs, ensuring data retention even in case of power loss.

7. High-Temperature Tolerance:
   The module operates effectively in environments ranging from -30°C to +65°C (-22°F to +150°F), making it suitable for a wide range of industrial conditions.

Technical Specifications:

System Compatibility:

• Software: Compatible with Bently Nevada System 1 and 3500 Rack Configuration Software (Version 4.0 or later).

• Setup: Must be configured using 3500 Rack Configuration Software.

• Network Security: As an Ethernet-based device, it is recommended to place the TDI on a secure and isolated Control Network to protect against unauthorized access.

Applications:

The Bently Nevada 177897-01 TDI Module is integral to predictive maintenance systems and machinery health monitoring in critical industries such as oil and gas, power generation, chemical processing, and mining. By providing real-time data collection and diagnostics, this module is crucial for minimizing unplanned downtime, optimizing machinery performance, and enhancing overall operational efficiency.

Frequently Asked Questions (FAQ):

Q: What is the role of the TDI in the 3500 monitoring system?
A: The TDI serves as the central communication hub for the 3500 system, collecting static and transient data, and transmitting it to external software for advanced diagnostics and analysis.

Q: How does the TDI capture transient data?
A: The TDI captures high-speed transient data during events like machine startup, coast-down, or trips, recording vibration waveforms to enable engineers to analyze machine behavior during critical moments.

Q: Can the TDI module be used with older 3500 systems?
A: The 177897-01 TDI is designed to work with 3500 Monitoring Systems and System 1 software. Compatibility with earlier versions may require additional configuration or updates.
