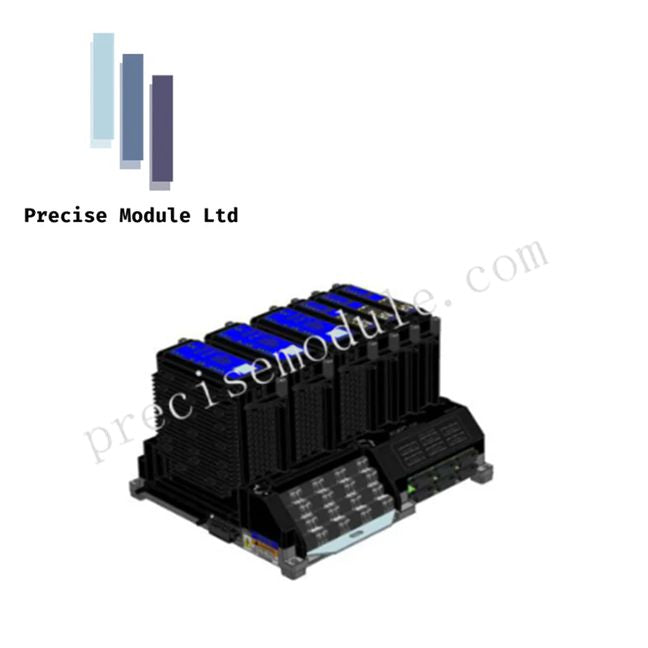

Bently Nevada 177988-01 PAS Module | ADAPT 3701/40 Monitor

Product Description

Overview

The Bently Nevada 177988-01 is a high-performance input module designed for the ADAPT 3701/40 Machinery Dynamics Monitoring System. It accepts signals from a variety of sensors, including proximity probes, accelerometers, seismic transducers, and dynamic pressure sensors, providing accurate vibration, position, and speed measurements. Its compact distributed architecture allows installation near the machinery, reducing long cable runs and supporting both on-site data collection and condition monitoring.

Key Technical Features

Multi-Sensor Compatibility

• Monitors radial vibration and axial position with proximity probes

• Supports casing vibration measurements with accelerometers and velocity sensors

• Accepts speed signals from magnetic pickups and Proximitor-based Keyphasors

• Measures dynamic pressure for combustion or fluid pulsation monitoring

Channel Configuration & Flexibility

• Channels 1–6: Configurable for vibration, position, or speed

• Channel 7: Dedicated speed input, supporting single-event and multi-event toothed-wheel signals

Signal Integrity & Diagnostics

• Buffered outputs on each channel for connection to portable data collectors or analyzers

• Internal microcontroller performs self-diagnostics, indicating “NOT OK” if sensor or wiring faults occur

High-Performance Signal Conditioning

• Supports synchronous and asynchronous sampling for trend data and high-resolution spectral analysis

• 24-bit high-resolution A/D conversion ensures low-noise, high-linearity signals

Distributed Architecture Design

• Industrial-grade module suitable for skid-mounted installation near machinery

• Ruggedized for vibration and wide temperature operation (-30°C to +65°C / -22°F to +149°F)

Technical Specifications

Application Scenarios

• High-speed rotating machinery, including gearboxes, planetary gear systems, and rolling element bearing machines

• Generators, compressors, and turbines condition monitoring

• On-site deployment in challenging or hard-to-access machinery

FAQ

Q1: Can the module accept multiple sensor types simultaneously?
A1: Yes, the 177988-01 supports proximity probes, accelerometers, magnetic pickups, and dynamic pressure sensors at the same time.

Q2: Is an external signal converter required?
A2: No, the module includes high-precision signal conditioning and 24-bit A/D conversion for direct digital output.

Q3: How does it compare to legacy 3500 series modules?
A3: The 177988-01 is a universal input module, eliminating the need for separate modules for different sensor types, simplifying spare parts management.
