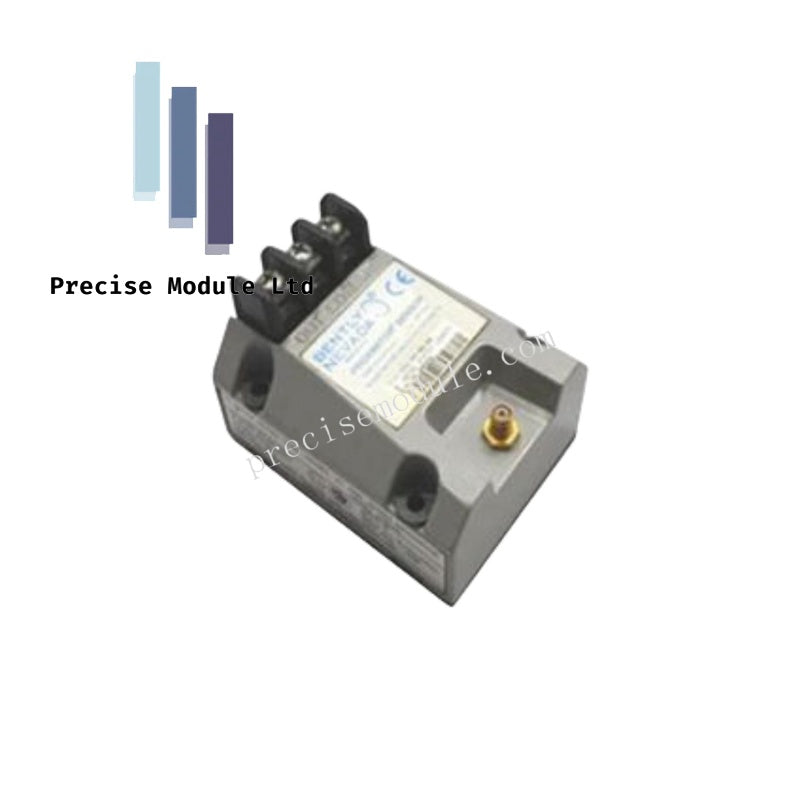

The Bently Nevada 24583-03, also cataloged as the 24583 Proximitor Interface Board, operates as a dedicated hardware component for eddy current proximity signal interface and shaft condition measurement within machinery monitoring systems.

Hardware Specifications

Eddy Current Probe Scaling and Rotor Dynamics Interface

The Bently Nevada 24583-03 Proximitor Interface Board is used with eddy current proximity probe systems for non-contact measurement applications in rotating machinery monitoring. The interface hardware supports signal processing between proximity sensing components and machinery condition monitoring systems.

Bently Nevada Proximitor systems use eddy current technology to provide shaft displacement and vibration measurement for condition monitoring and automatic machinery protection applications. The sensing method enables non-contact measurement of rotating shaft position and dynamic movement.

The interface board provides a physical connection point within the proximity monitoring architecture, supporting integration of probe-based measurement signals into machinery monitoring channels.

Frequently Asked Questions

Q: What sensing technology is associated with the 24583-03 system?
A: The system is based on eddy current proximity measurement technology for non-contact shaft monitoring.

Q: What type of measurement applications does the interface board support?
A: The interface board supports proximity probe signal integration for shaft displacement and vibration monitoring.

Q: What are the physical dimensions of the 24583-03 interface board?
A: The specified dimensions are 82.6 x 63.5 x 50.8 mm.

Field Installation Guidelines

Install the interface board in the designated machinery monitoring enclosure or assembly location with correct mechanical fixation. Verify connector engagement and ensure the board is protected from contamination, moisture, and mechanical impact.

Route proximity signal wiring separately from high-current power conductors and electromagnetic interference sources. Maintain proper cable shielding and grounding practices for eddy current measurement circuits.

Before operation, verify probe connection, interface wiring continuity, and monitoring channel configuration within the connected machinery protection system.
