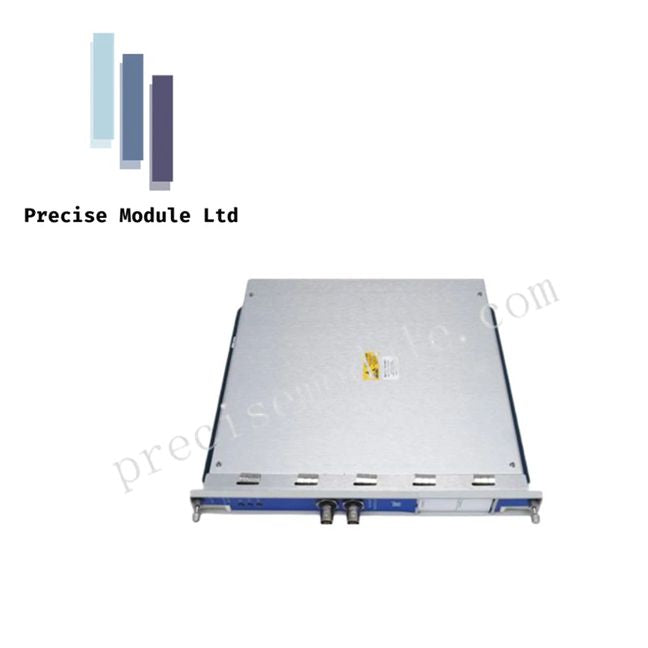

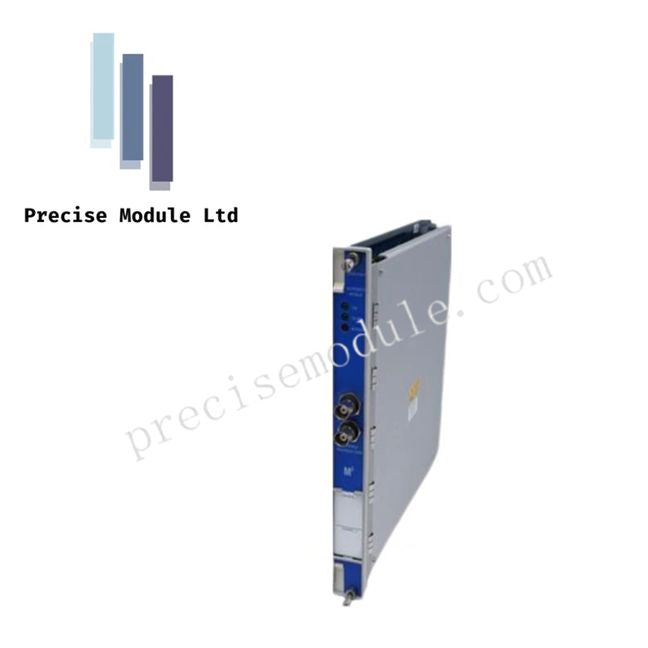

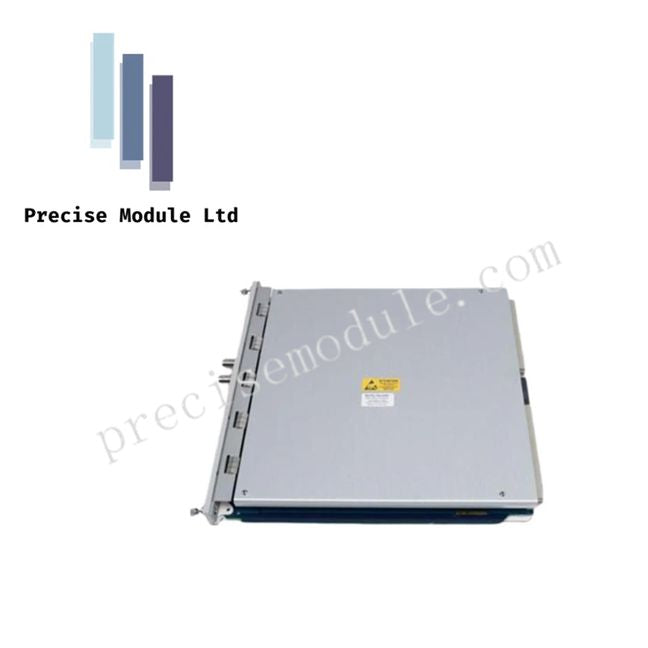

Bently Nevada 286566-02 Industrial Tachometer Module Sensor

Product Description

Overview

The Bently Nevada 286566-02 is a dual-channel tachometer module designed for demanding industrial environments. It precisely measures shaft speed, rotor acceleration, and rotor direction by receiving signals from proximity probes or magnetic pickups. The module features programmable alarm setpoints, which trigger alerts when measurements exceed predefined thresholds. With Modbus RTU communication and DIN rail mounting, it integrates seamlessly into industrial control systems.

Technical Specifications

• Channels: 2

• Input Types: Proximity probes or magnetic pickups

• Measurement Capabilities:

• Shaft rotational speed

• Rotor acceleration

• Rotor direction

• Alarm Setpoints: User-configurable thresholds

• Communication Interface: Modbus RTU

• Mounting: DIN rail

• Dimensions: 2.2 cm × 12.4 cm × 12.6 cm

• Weight: 0.5 kg

• Signal Output: Low-noise analog signal

• Environmental Tolerance: Resistant to high temperatures, humidity, and industrial vibration

Performance Features

• High Precision: Provides accurate shaft displacement and vibration readings for critical machinery monitoring

• Wide Frequency Response: Detects both low-frequency and high-frequency vibration signals

• Non-Contact Sensing: Reduces mechanical wear and lowers maintenance costs

• Rugged Design: Industrial-grade construction suitable for harsh operating conditions

• Long-Term Stability: Maintains reliable performance for continuous monitoring

• System Compatibility: Fully compatible with Bently Nevada 3500 and 2300 Series monitoring systems

Applications

Ideal for monitoring turbines, generators, compressors, and other critical rotating machinery. Commonly used in power generation, petrochemical, and manufacturing industries.

FAQ

Q: What types of inputs does the module support?
A: It supports both proximity probes and magnetic pickups, allowing flexible installation based on site requirements.

Q: Can alarm setpoints be customized?
A: Yes, users can configure alarm thresholds, and the module will trigger alarms when exceeded.

Q: Can it be used with non-Bently Nevada systems?
A: While primarily designed for Bently Nevada systems, it can integrate into other industrial control systems via Modbus RTU.

Q: How does it differ from similar models?
A: Compared to the 286566-01, the 286566-02 offers improved signal processing, wider frequency response, and enhanced long-term stability.
