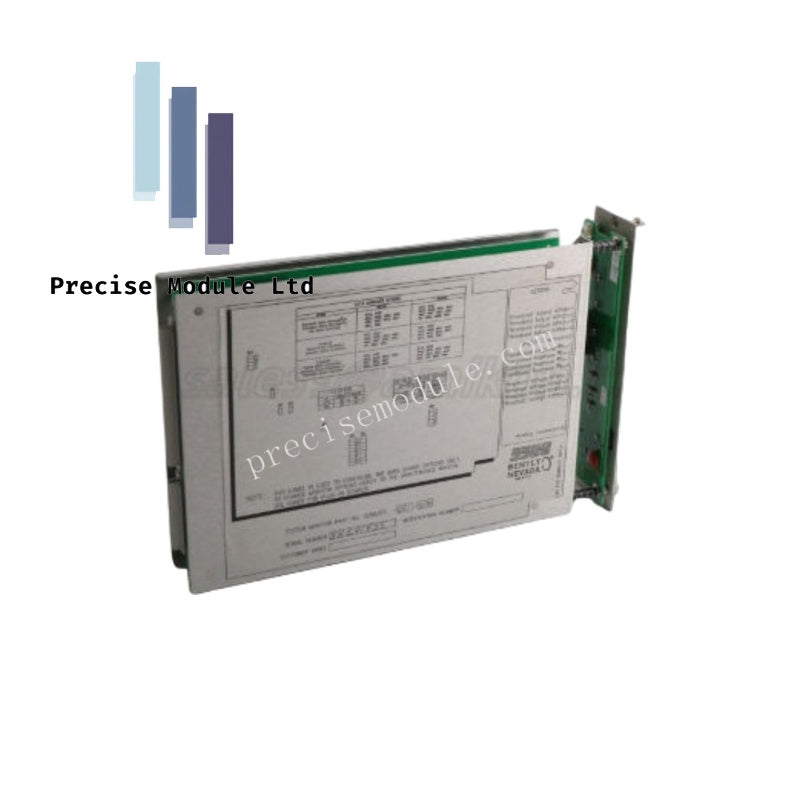

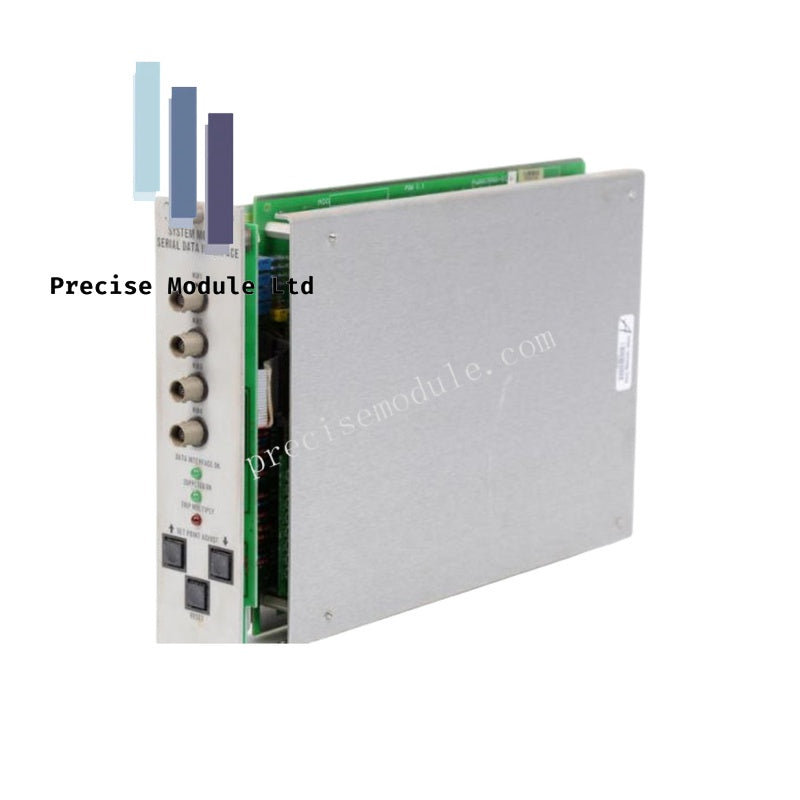

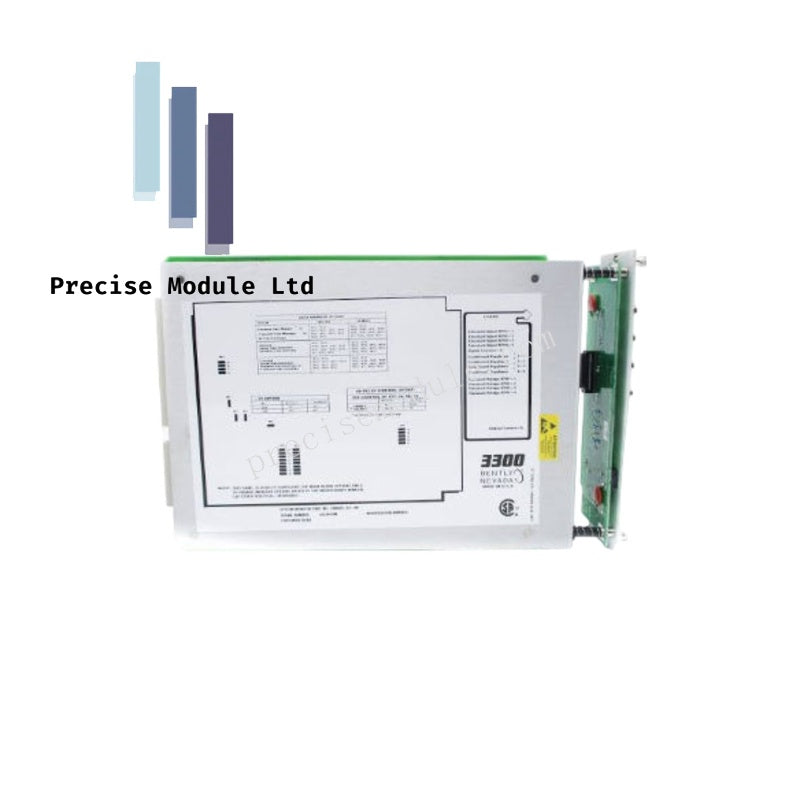

Bently Nevada 3300/03-01-00 System Monitor Module

Bently Nevada 3300/03-01-00 System Monitor Module

The Bently Nevada 3300/03-01-00, also cataloged as the 3300/03 System Monitor Module, operates as a dedicated hardware component for centralized control, power distribution, and data interfacing within a 3300 Machinery Monitoring rack.

Suffix Breakdown & Model Matrix

The functional options for this specific module assembly are derived from the standardized option codes below:

• 3300/03: 3300 System Monitor Module configuration.
• 01: Serial Data Interface (SDI) and Dynamic Data Interface (DDI) communications option.
• 00: Agency approval option (No approvals).

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The module provides centralized coordination for the rack's transducer loops and rotor dynamics instrumentation. It delivers conditioned Keyphasor power, termination, and distribution to all individual monitors across the backplane, ensuring stable reference signals for eddy-current probe scaling calculations. The module incorporates internal filtering for cross-talk suppression between dynamic channels and establishes standard electrical references necessary for gap voltage validation across the rack slots. Static and dynamic data ports transmit raw sensor waveforms and filtered vector trends to digital control networks and machinery management software without interrupting primary hardware protection paths.

Frequently Asked Questions

Q: What functions does the 3300/03-01-00 handle for individual monitors in the rack?

A: The module executes common rack-wide operations, including manual alarm setpoint adjustments, alarm acknowledgment execution, and conditioned Keyphasor distribution to all slotted instrumentation cards.

Q: Can this module interface directly with external host automation systems?

A: Yes. The module features Serial Data Interface (SDI) and Dynamic Data Interface (DDI) options to communicate digitized transducer and monitor data directly to process computers, DCS, or PLCs.

Field Installation Guidelines

• OK Relay Safety Wiring: Wire the main OK Relay terminals to an external, operator panel-mounted annunciator. Hardware or transducer loop failures trip this contact to instantly alert personnel of a loss of machinery protection.
• Data Port Shielding: Ensure all dynamic data cables connected to the front BNC ports use high-quality coaxial shielding. Ground the cables properly to avoid noise injection into the diagnostic instruments.
• Backplane Insertion: Turn off primary rack power before inserting or extracting the System Monitor module to prevent electrical arcing across the multi-pin backplane connectors.
