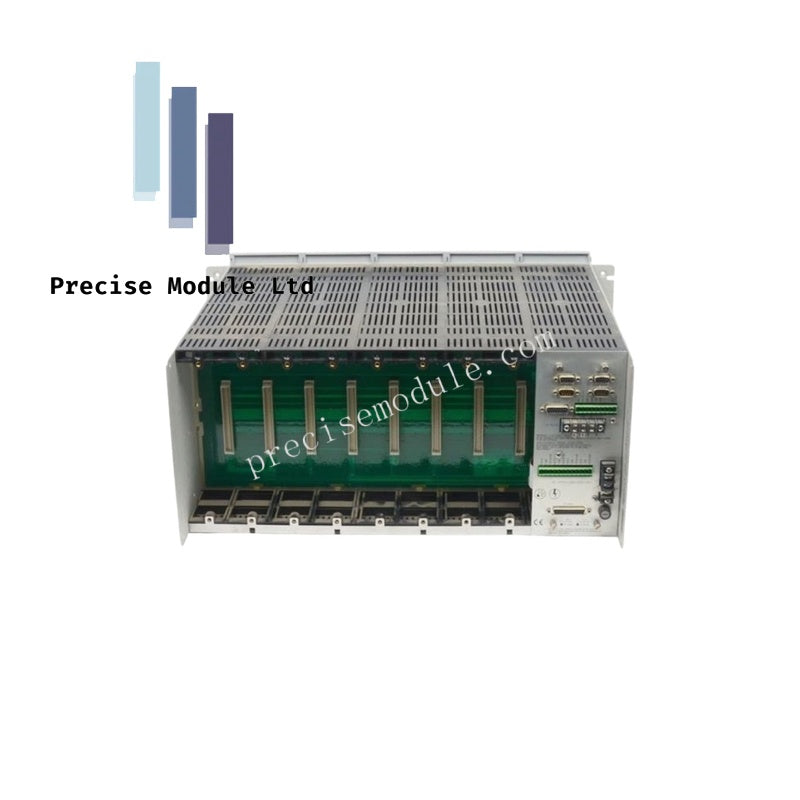

The Bently Nevada 3300/05-24-00-00, also cataloged as the 3300/05 Chassis Module, operates as a dedicated hardware component for rack-based machinery protection systems within 3300 monitoring platforms. This mainframe provides the structural housing and backplane connectivity necessary to integrate proximity transducer systems, monitor modules, and power supplies into a centralized assembly for fluid-film bearing machine diagnostics.

Suffix Breakdown & Model Matrix

Hardware Specifications

Mechanical Monitoring & TSI Characteristics

The 3300/05 chassis is engineered to support the integration of 3300 series proximity transducer systems, including 5 mm and 11 mm probe configurations. The mainframe backplane facilitates the cross-talk suppression required for high-accuracy rotor dynamics measurements. By providing a stable, conductive housing environment, the chassis ensures that the Proximitor sensors and monitor modules maintain consistent signal scaling. The mechanical design accommodates the physical requirements of speed and Keyphasor measurement applications, ensuring that transducer output signals remain linear across the specified temperature range.

Frequently Asked Questions

Q: Does the 3300/05 chassis provide power regulation for the monitor modules?

A: The chassis provides the physical backplane and bus connectivity; however, power regulation and conversion are handled by specific 3300/15 power supply modules installed in designated slots.

Q: Are there specific slot requirements for the 3300/05 10-position rack?

A: Yes, the rack is segmented: Position 1 is dedicated to the power supply, Position 2 is for monitor modules, and positions 3 through 10 are allocated for I/O modules.

Field Installation Guidelines

• Grounding and Shielding: Utilize the conductive nature of the injection-molded material by ensuring the chassis is properly bonded to the cabinet ground. This reduces electromagnetic interference affecting the transducer signal path.
• Module Insertion: Always ensure modules are fully seated and locked into the backplane connectors. Improper seating can result in intermittent signal contact or failure of the bus communication.
• Heat Dissipation: Ensure adequate airflow around the chassis. While the operating temperature range is -30 deg C to +65 deg C, localized heat buildup can degrade the performance of sensitive proximity electronics.
• Cable Management: Maintain separate routing for transducer signal cables and power/relay wiring to minimize noise coupling and signal distortion.
