Bently Nevada 3300/10 78422-01 Power Supply Module

Bently Nevada 3300/10 78422-01 Power Supply Module

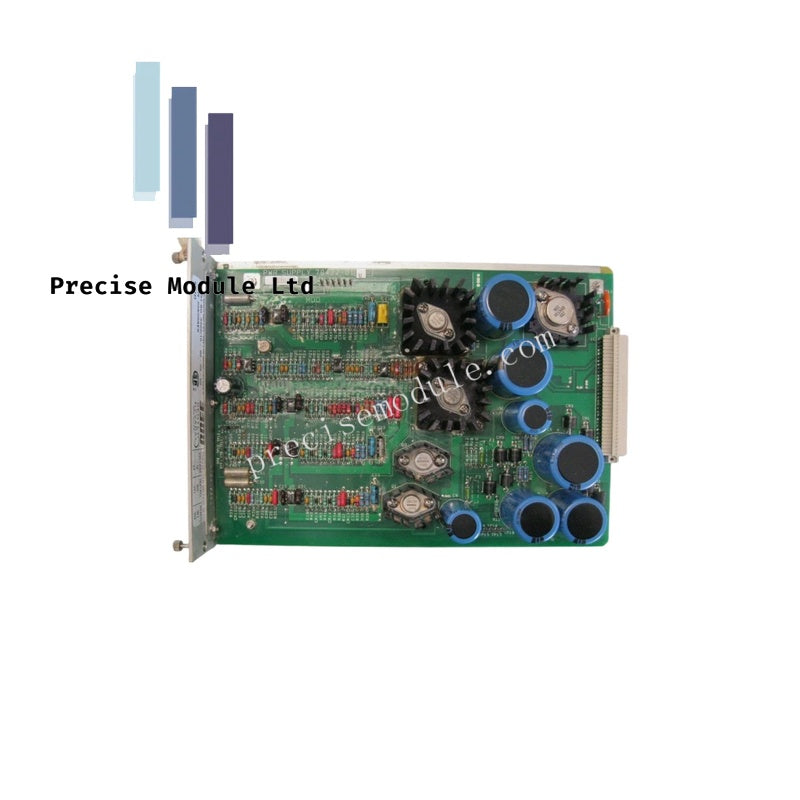

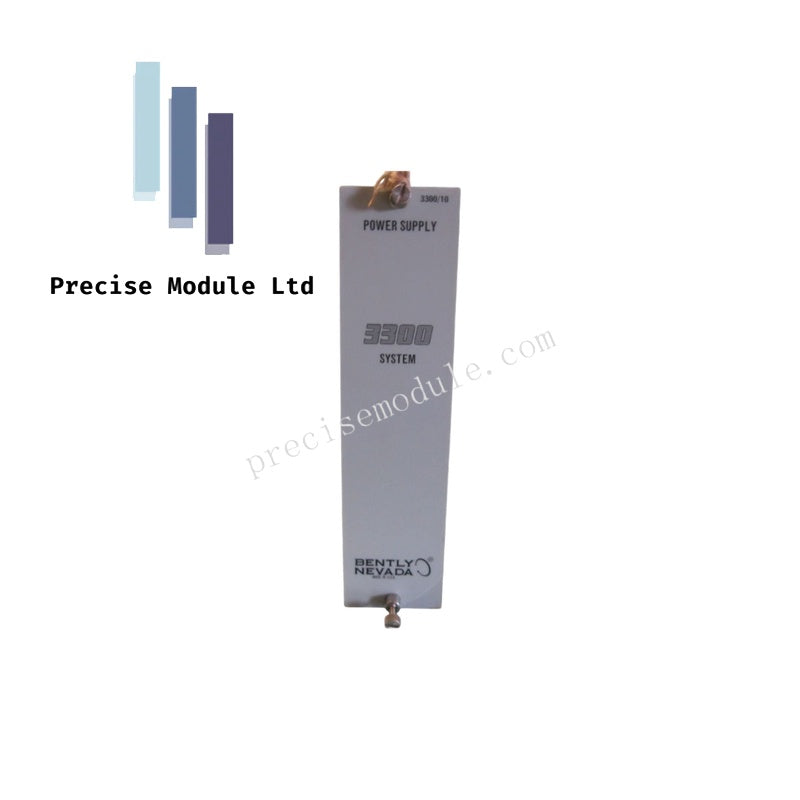

The Bently Nevada 3300/10 78422-01, also cataloged as the 3300/10 Power Supply Module, operates as a dedicated hardware component for power distribution and regulation within Bently Nevada 3300 Monitoring Systems. This unit provides the primary voltage conversion required to drive rack-mounted transducer interfaces and signal processing modules, ensuring stable DC output for critical machinery monitoring architectures.

Hardware Specifications

Mechanical Monitoring & TSI Integration

The 3300/10 module maintains strict internal bus voltage tolerances to support eddy-current probe scaling requirements in machinery protection applications. Accurate gap voltage validation (-10 VDC targets) is dependent on the consistent DC supply provided by this module to the Proximitor Sensor chain. The integration ensures that the rotor dynamics monitoring remains free from power-induced noise, facilitating effective cross-talk suppression when multiple transducer channels are multiplexed within the same rack configuration.

Frequently Asked Questions

Q: Does the 3300/10 module support hot-swap functionality during rack operation?

A: No, the 3300/10 Power Supply Module is not designed for hot-swapping. Ensure the primary power source is disconnected and the rack is de-energized before attempting removal or installation to prevent backplane damage.

Q: How does this module influence signal noise in low-voltage transducer circuits?

A: The module is engineered with output ripple filtering specifically optimized for low-level proximity signals. Maintaining ground integrity at the rack chassis level is required to ensure the signal-to-noise ratio remains within limits for vibration and position measurement.

Field Installation Guidelines

• Mounting: Secure the module into the designated slot of the 3300 rack. Ensure the locking mechanisms are fully engaged to guarantee electrical contact with the backplane bus.
• Grounding: Establish a low-impedance connection between the rack chassis and the plant instrument ground. Utilize an M6 grounding lug as specified in the standard rack installation manual.
• Wiring: Use shielded twisted-pair cabling for all signal outputs originating from modules powered by the 3300/10. Route power distribution cabling separately from high-voltage AC lines to mitigate electromagnetic interference (EMI).
• Environment: Maintain an ambient operating temperature between -20 deg C and 65 deg C. Ensure adequate airflow through the rack assembly, as restricted ventilation will lead to thermal derating of the internal power conversion components.
