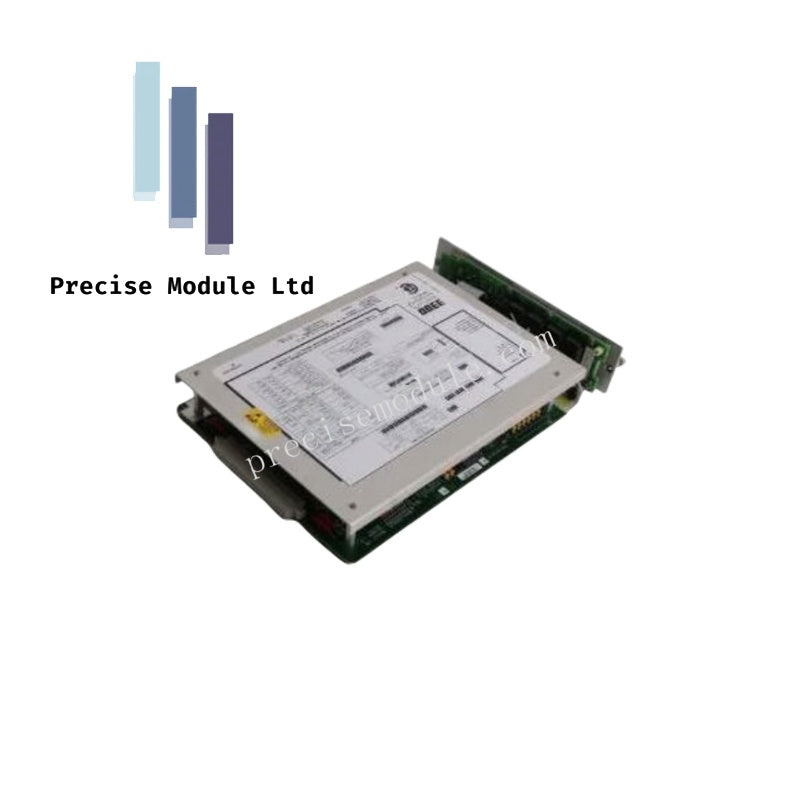

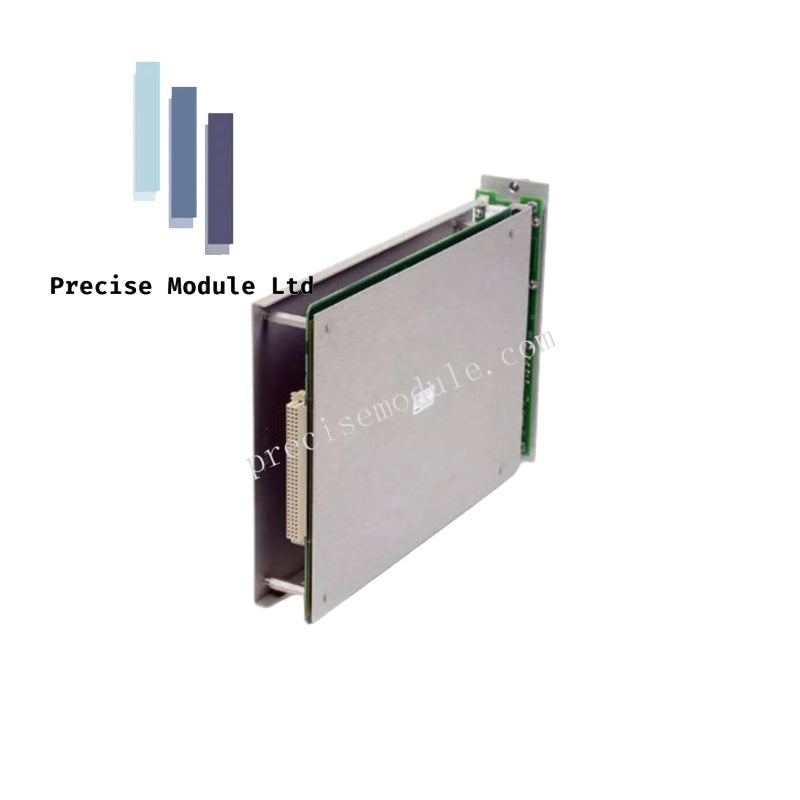

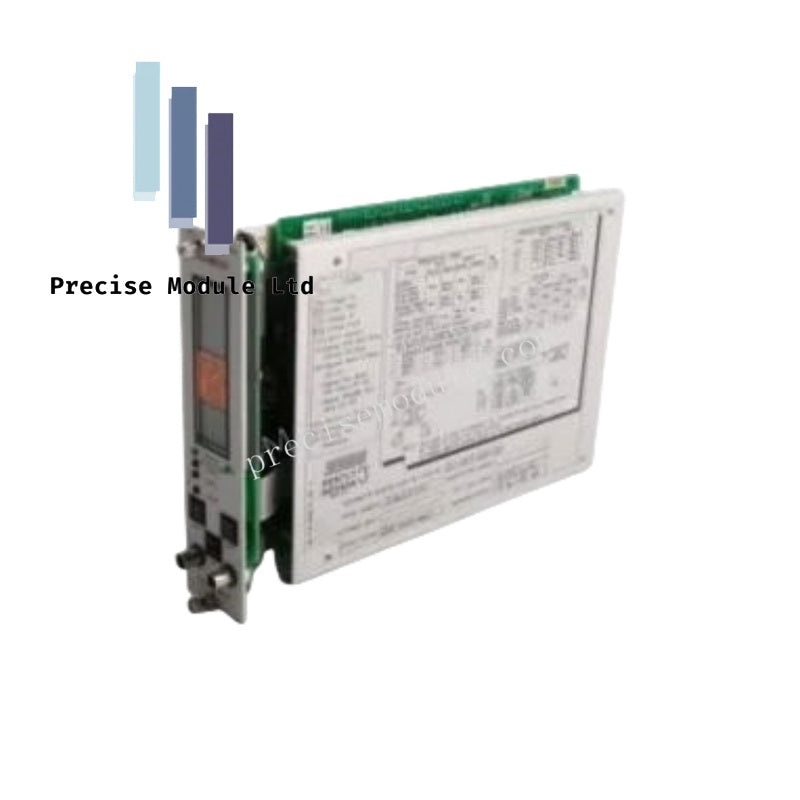

Bently Nevada 3300/48-02-01-00-00 Expansion Monitor

Bently Nevada 3300/48-02-01-00-00 Expansion Monitor

The Bently Nevada 3300/48-02-01-00-00, also cataloged as the 3300/48 Expansion Monitor, operates as a dedicated hardware component for signal conditioning and buffered transducer output within Bently Nevada 3300 series rack systems.

Suffix Breakdown & Model Matrix

Hardware Specifications

Rotor Dynamics and Cross-Talk Suppression

The 3300/48 module supports advanced eddy-current probe scaling to convert distance to proportional voltage for both static position and dynamic vibration analysis. By maintaining strict cross-talk suppression between the two independent channels, the module ensures that orbit data derived from proximity sensors remains accurate. The system architecture supports gap voltage validation to confirm that the sensor is operating within its linear range, typically calibrated to a -10 VDC target, which is essential for consistent signal fidelity in fluid-film bearing monitoring.

Frequently Asked Questions

Q: Is the 3300/48 compatible with legacy non-XL 3300 series components?

A: Yes. The module supports backward compatibility and interchangeability with standard 3300 series 5 mm and 8 mm transducer components, facilitating integration into existing machine monitoring frameworks without requiring bench calibration.

Q: Can the buffered outputs be used to drive secondary protection systems?

A: The buffered outputs are intended for signal analysis and diagnostic purposes (e.g., oscilloscopes or data acquisition). These outputs are not intended to replace the primary protection output signals required for safety-related trip logic.

Field Installation Guidelines

Ensure the 3300/48 module is correctly inserted into the 3300 rack and that all backplane power connections are secure. When routing transducer input cables, keep them physically separated from high-voltage AC lines to minimize electromagnetic interference. The cable shields must be grounded at the designated rack-end terminal to prevent ground loops that could introduce noise into the buffered signal path. Prior to finalizing the installation, verify the probe gap voltage to confirm the transducer system is correctly positioned and yielding the expected output range.
