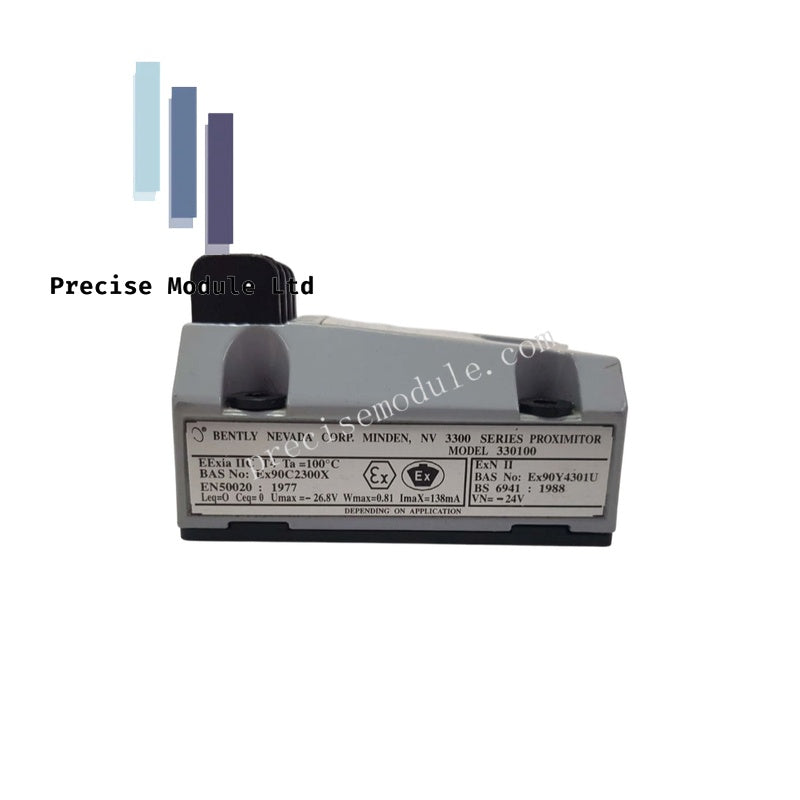

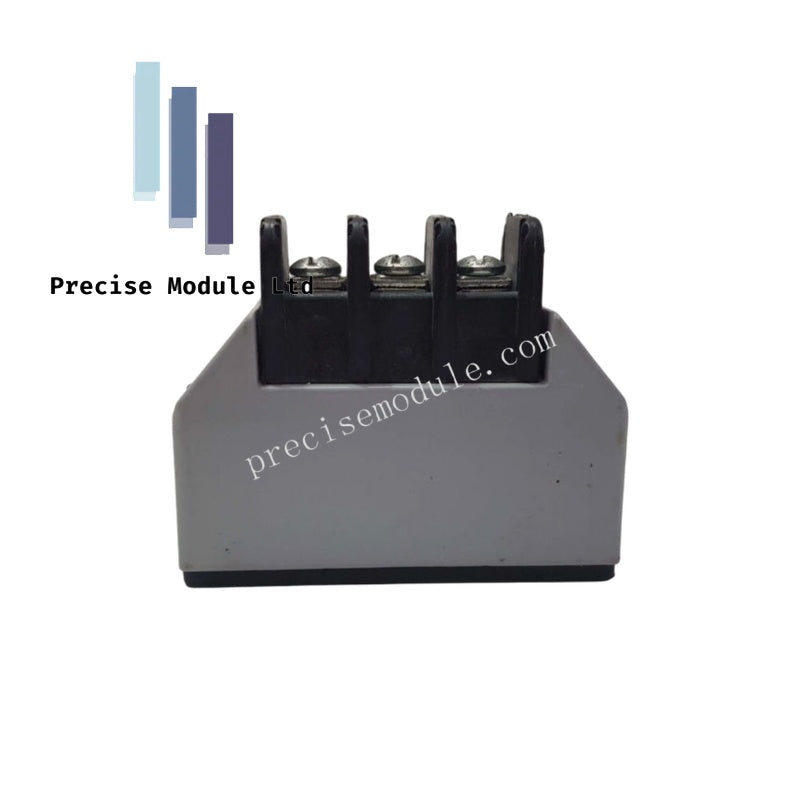

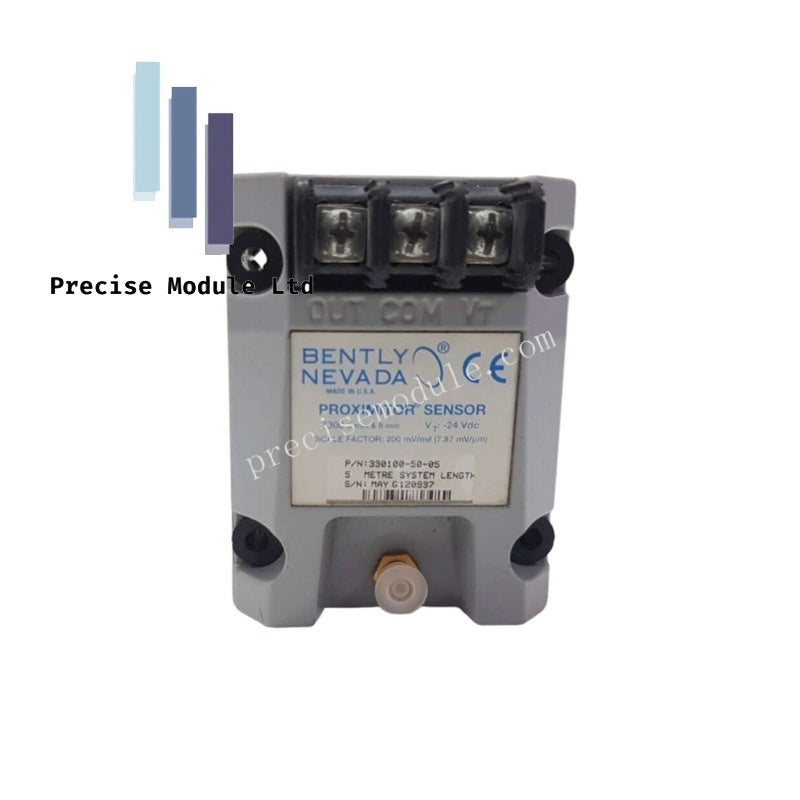

The Bently Nevada 330100-50-05, also cataloged as the 3300 5 mm Proximity Transducer System component, operates as a dedicated hardware component for converting eddy-current probe signals into proportional output voltages within machinery monitoring networks.

Hardware Specifications

Bently Nevada Mechanical Monitoring & TSI Characteristics

The 330100-50-05 Proximitor sensor is fundamental for rotor dynamics analysis, providing a linear output voltage corresponding to the gap between the probe tip and the target conductive surface. This unit utilizes high-frequency modulation to achieve precise gap voltage validation, typically centered around the -10 VDC operating point. Because the system is designed for complete component interchangeability, the sensor ensures that probe-to-extension-cable impedance matching is maintained without the requirement for field bench calibration. When deployed, the sensor output serves as the primary data source for static position (gap) and dynamic (vibration) measurements, requiring robust shielding to minimize electromagnetic interference across the transducer loop.

Frequently Asked Questions

Q: Does this Proximitor sensor require manual calibration when replacing a probe?

A: No. The 3300 series architecture is designed for full interchangeability; replacing a probe or extension cable does not necessitate bench calibration or individual component matching.

Q: What is the impact of supply voltage variance on the output signal?

A: The Proximitor sensor is designed to maintain a stable output signal across a nominal input range of -17.5 VDC to -26 VDC. Voltage fluctuations within this range will not impact the linearity of the vibration or position data.

Field Installation Guidelines

1. Mounting: Secure the Proximitor sensor to a grounded DIN rail or panel within an enclosure. Ensure the mounting base provides a low-impedance electrical connection to the system common.
2. Wiring: Use shielded coaxial cabling for all signal connections. Ensure the shield is grounded at the Proximitor end only to avoid creating ground loops that could introduce noise into the vibration signal.
3. Connector Inspection: Verify that all coaxial connections are clean and free of moisture. Tighten connectors finger-tight plus 1/8 turn to ensure optimal contact pressure.
4. Environment: Install the sensor in a location protected from direct process fluid exposure and extreme thermal gradients to ensure component longevity.
