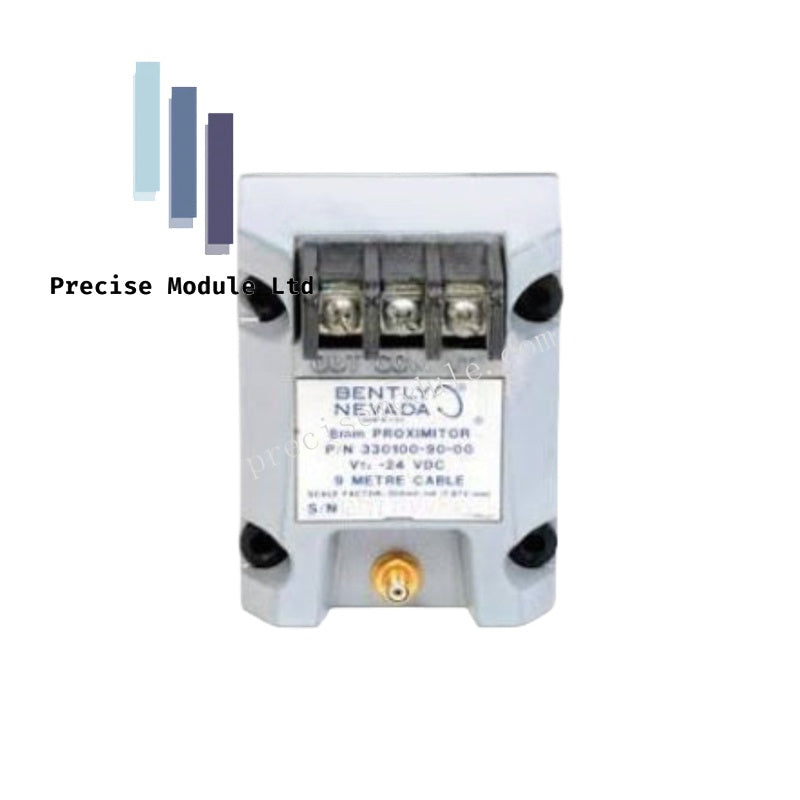

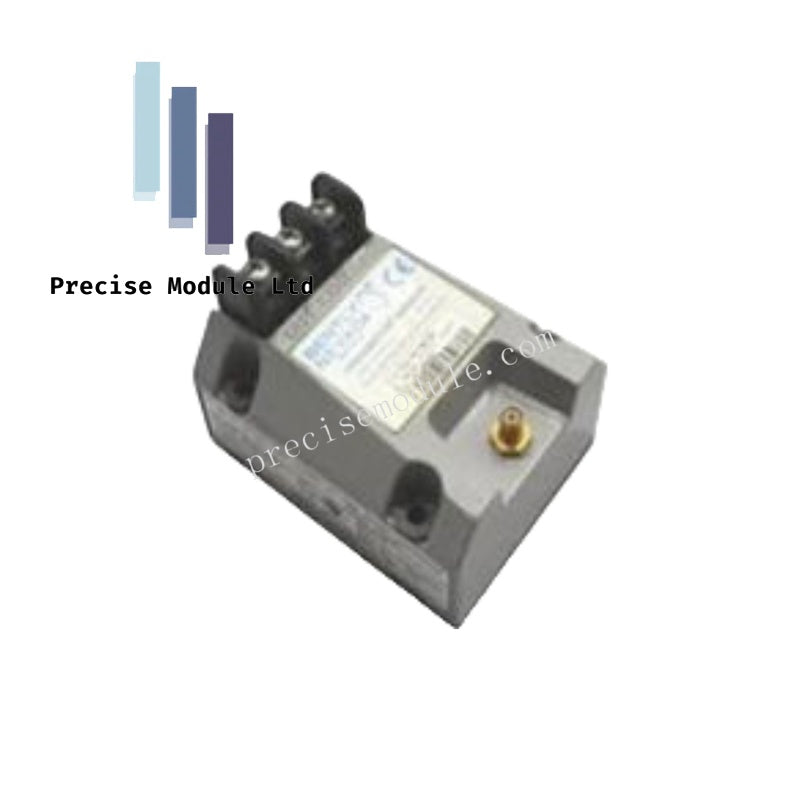

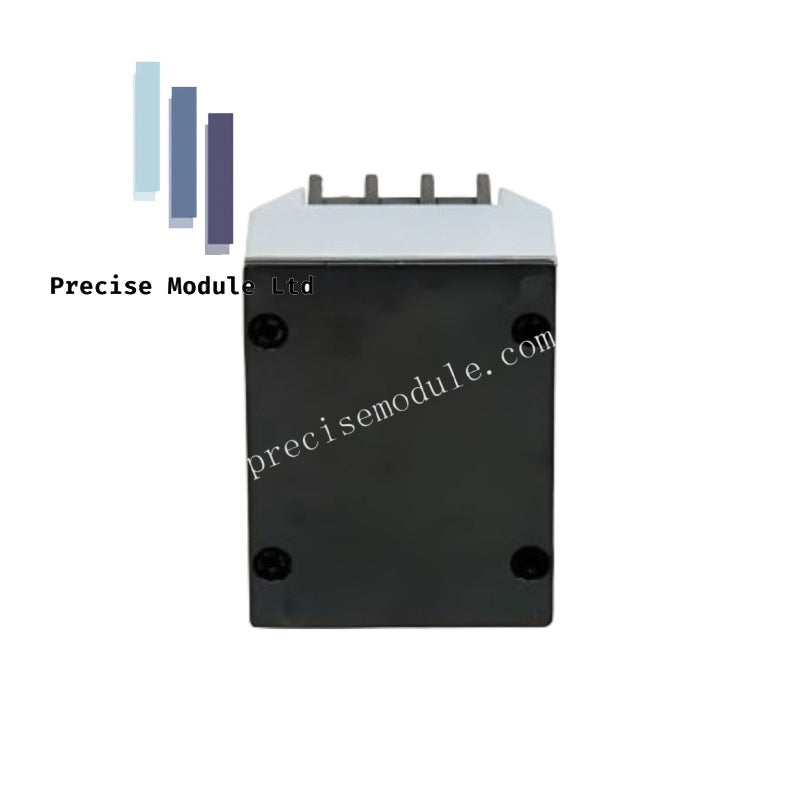

Bently Nevada 330100-90-00 Proximitor Sensor

Bently Nevada 330100-90-00 Proximitor Sensor

The Bently Nevada 330100-90-00, also cataloged as the 3300 XL NSv Proximitor Sensor, operates as a dedicated hardware component for signal conditioning within the NSv Proximity Transducer System, specifically engineered for space-constrained turbomachinery monitoring.

Hardware Specifications

Mechanical Monitoring & TSI Characteristics

The 330100-90-00 Proximitor sensor utilizes advanced eddy-current signal processing to provide a linear output voltage proportional to the distance between the NSv probe tip and the target surface. This model is specifically optimized for small-diameter shafts (less than 51 mm) and restricted mounting environments where standard 3300 XL transducers cannot be physically accommodated. The unit maintains precise rotor dynamics scaling to ensure consistent performance for radial vibration, axial thrust, and Keyphasor applications. The circuitry is calibrated to minimize sensitivity to side-viewing interference, ensuring that the -10 VDC gap voltage target is maintained even when targets are smaller than the standard 15 mm requirement. Consistent with the Bently Nevada 3300 series, this sensor supports full component interchangeability, requiring no individual component matching or bench calibration during integration.

Frequently Asked Questions

Q: Can the 330100-90-00 Proximitor sensor be used with standard 3300 XL 8 mm probes?

A: No. The 330100-90-00 is part of the NSv (Near-field Sensing) transducer system and is electrically impedance-matched to NSv probes and cables. Mixing these with standard 3300 XL 8 mm components will result in non-linear signal output and measurement errors.

Q: Is it necessary to recalibrate the monitoring system when replacing a damaged Proximitor sensor?

A: No. The 3300 XL NSv system is designed for total system interchangeability. Replacement sensors are factory-calibrated to match the output characteristics of the entire transducer chain, eliminating the need for bench calibration.

Field Installation Guidelines

• Mount the Proximitor sensor in a protected, vibration-free enclosure to prevent mechanical stress on the terminals.
• Ensure the coaxial cable connections between the probe, extension cable, and Proximitor sensor are tight and free of contaminants to maintain signal linearity.
• Verify the gap voltage at the Proximitor output terminal after installation to ensure the sensor is operating within its specified linear range for the application.
• Route the interconnecting cables away from high-noise industrial environments and electromagnetic sources to preserve the integrity of the dynamic vibration signal.
• Confirm that all system components (probe, cable, and sensor) are from the NSv product line to avoid characteristic impedance mismatches.
